In this teardown, you will be shown how to take apart (and reassemble) an Open-Storm valve node pair.

  1. iBUUoJYXm3xXYsty

    • You will need 2 small screwdrivers 2 large screwdrivers

    • 2x flat head

    • One ~5/64

    • One ~ 1/2

    • 2x Phillips

    • One #1

    • One #2 ( x 4)

  2. GwckSYCS3OOITaVu
    GwckSYCS3OOITaVu
    LOu5rUHLhTAM3Mu1
    LmBQCdjDTQhiaT2c

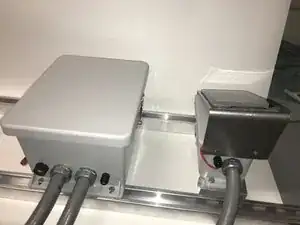

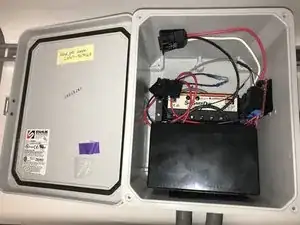

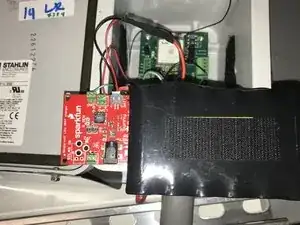

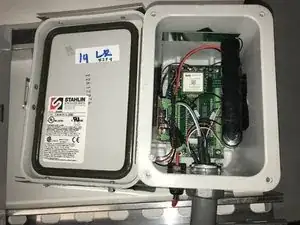

    • Here we can see the two fully built nodes for the valve. We will use this as the starting point for our teardown.

  3. Yhi54aiWyUWqbtOy
    Yhi54aiWyUWqbtOy
    DAUNKRBVMROqbRDV
    TBhGZbNExKYQvwHT

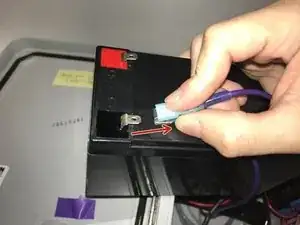

    • For the large node unclip the battery

    • For the smaller node, detach the battery from the solar charger

  4. IbiLvrKDq21VQGFs
    IbiLvrKDq21VQGFs
    QbRisxjy2Lk1SdvH
    xpFyvpSscX1San1J

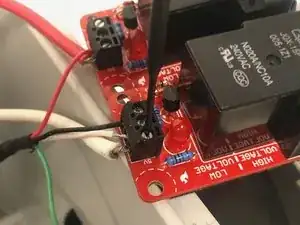

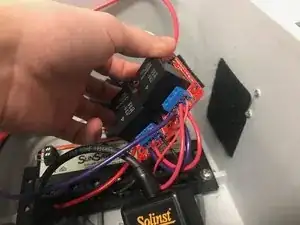

    • Ensure battery is disconnected

    • You will use both types of (small) screwdrivers

  5. EXGAKbYaDiTmwFQN
    EXGAKbYaDiTmwFQN
    UYbbD3jZ1r3cP4NY

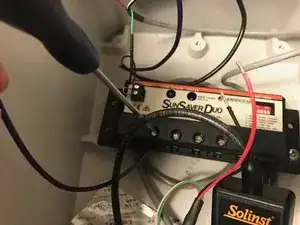

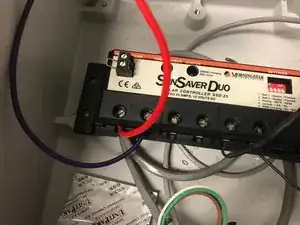

    • Use the (large) flat head screwdriver

  6. UUIWvdIr5msJPwsq
    UUIWvdIr5msJPwsq
    ic5Oi1dPoxWEkARc
    2KmSxtPBPmbautnF

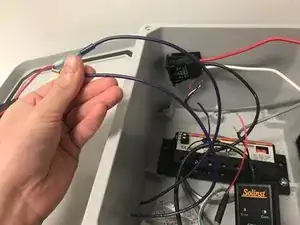

    • The switch will most likely still be connected to the small node and will not be able to be fully removed. We recommend removing it from the enclosure to make it tidy

  7. hG4BIARZ3XCxgQmY
    hG4BIARZ3XCxgQmY
    lgS2TynbNBtMuYMd

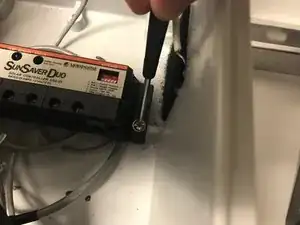

    • Use the (large) Phillips screwdriver

  8. eixCxoOyTJMVGEOc
    eixCxoOyTJMVGEOc
    tJYXQdUDTtF6fKDf

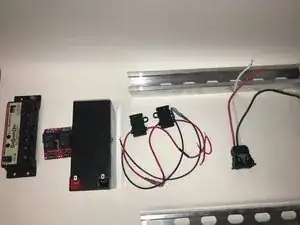

    • We have provided a picture of the inside of the enclosure to depict what will still remain inside

    • With the interior of the large node removed, these are the components we have (from left to right):

    • SunSaver Duo

    • Relays

    • Battery

    • Battery Wires/Connectors

    • Switch (still connected to the small enclosure via the conduit)

  9. ojsdSSPLNIJiMPl4
    ojsdSSPLNIJiMPl4
    cwQkTTscayipUuEu
    gRDPZhQSrmHDIEnc

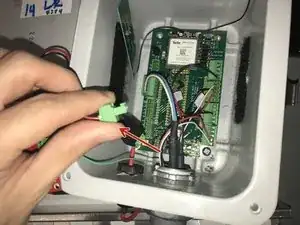

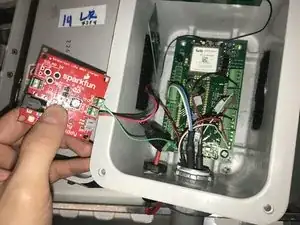

    • With the battery removed, our first step will be to remove the solar charger:

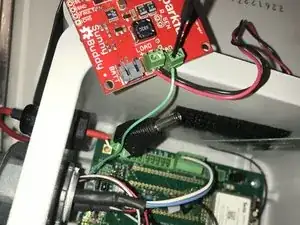

    • Pull out the solar charger terminal from the board

    • Unscrew the green wire from the solar charger using the (small) flat head screwdriver

  10. tUhODiK4tDbPgxhS
    tUhODiK4tDbPgxhS
    3DcuC6RslBJdQyfN
    SylIqIh5K1WBOdH1

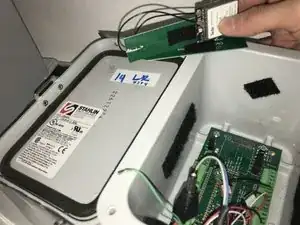

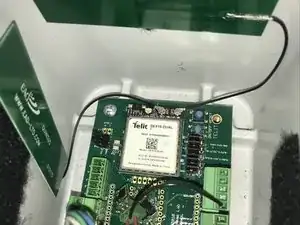

    • Pull the module from the bottom; pulling the module in a different way may damage it

  11. BIxntnfERgXrZ4iM
    BIxntnfERgXrZ4iM
    e5stkMaCgNG1A3rs

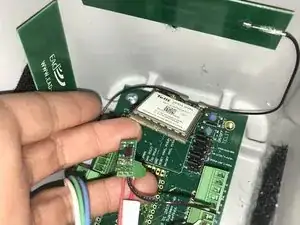

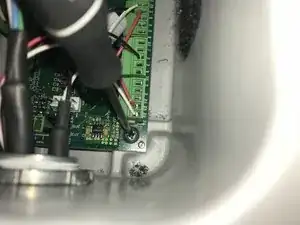

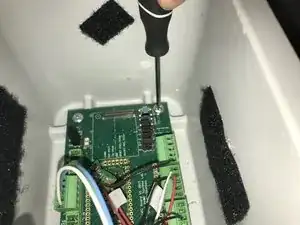

    • Use the (small) Phillips screwdriver

  12. SOHkaBSUQW5FCUrf
    SOHkaBSUQW5FCUrf
    C5RyThUuSnjL2Dyo
    RJDOGNVH41k6NAAK

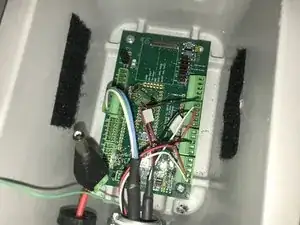

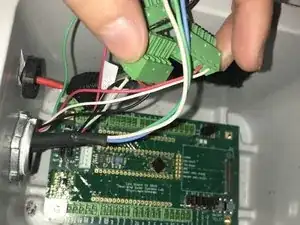

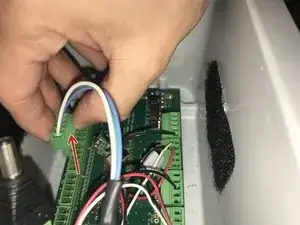

    • For this step, we recommend you record the current location of the current wires/terminals or refer to our pin documentation for reassembly purposes

    • Pin Documentation

  13. yAvXoGe1ZbTSU2DS
    yAvXoGe1ZbTSU2DS
    HymjOdOvDOeEGxYX

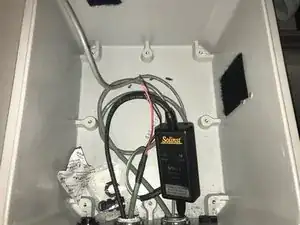

    • We have provided a picture of the inside of the enclosure to depict what will still remain inside

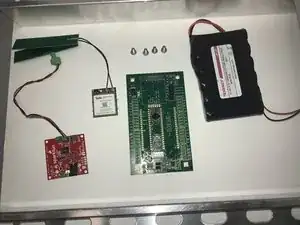

    • With the interior of the small node removed, these are the components we should have (from left to right)

    • Solar charger with an attached terminal

    • Cell module with attached antenna on the "ANT" and "GPS" pins

    • Board with the four screws

    • The battery
