Einleitung

Guides you in taking apart the Slimlighter Super-LED for maintenance or just pure curiousity :)

  1. ZUwBtJSUnlQHemXT
    ZUwBtJSUnlQHemXT
    wZGANtgNwGWfPRcm

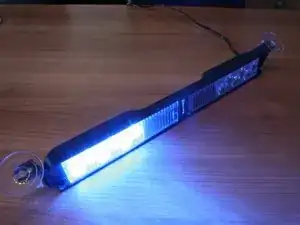

    • This is Whelen's second generation Slimlighter. Whilst the first generation had multiple 5mm LED's, this generation Slimlighter has 'only' 12 TIR6 style LED's.

    • Enough chatter, let's take it apart :)

  2. J5YY3jq2RAUOBS5t
    J5YY3jq2RAUOBS5t
    koyGlhi1tj5jgPNN
    qBLNlXutBcD3iPmL

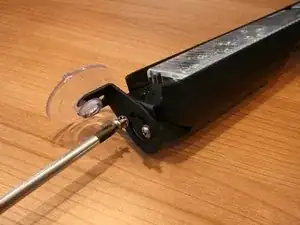

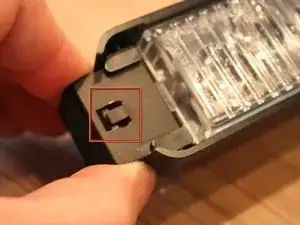

    • Optionally one can first take of the suctioncup brackets. They are held in place by two Philips screws.

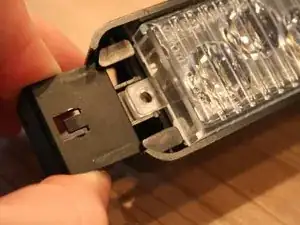

    • Next you can take off the retaining brackets. They are held back by a little notch that has to be lifted with a spudger. Repeat this step for the other side.

    • Once the notch is lifted pull the bracket away from the light as shown.

  3. y3wcnMQRQhyRNodg
    y3wcnMQRQhyRNodg
    EBgacC4wMYTjqaZ5
    kMNRWJsKB5knABT1

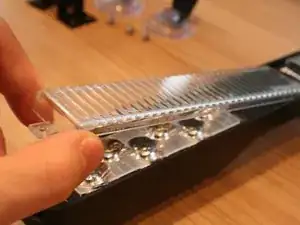

    • Once the brackets are released the light can easily be dissasembled. Begin by lifting the diffuser lens up as shown.

    • One can also have clear lenses here, the procedure is the same.

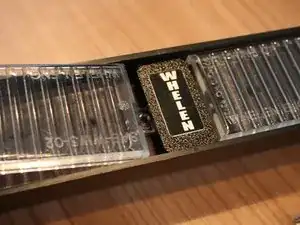

    • Note that the lens has a similar notch on the other side, underneath the Whelen logo. Carefully pull the lens out from underneath, don't force anything or it will break.

  4. Fd1AoTyqFIUMnHWZ
    Fd1AoTyqFIUMnHWZ
    lyIWfpJyU55Py4A6
    LUaI2RxmByHdALXU

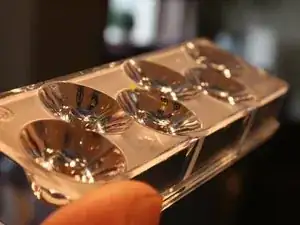

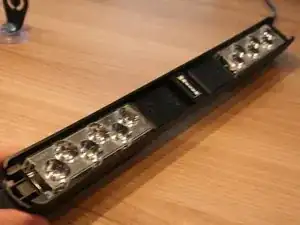

    • With the diffuser lenses removed the optics are exposed. They are not secured by anything so carefulle take them out as shown

    • Nifty little optics here, kudo's to Whelen.

    • Try activating the light now, see the differences with and without these optics

  5. lkFsvJtqAhHcFSrp
    lkFsvJtqAhHcFSrp
    mex16AojGMFIaTgn
    EWfUDo1uHRqYvmnD

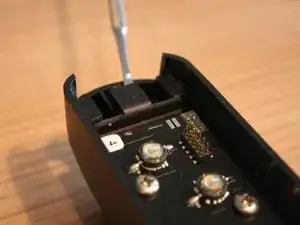

    • Now you can CAREFULLY take out the LED assembly. It's attached to a metal heat dissapating bracket. CAREFUL with the wiring. Note that the bracket is retained by the plastic housing. It might need some help before it gives way.

  6. M3OAraD3GpXmSuvk
    M3OAraD3GpXmSuvk
    VTeW2mii6vQS1fdH
    JTWa4TlGbcwju4JK

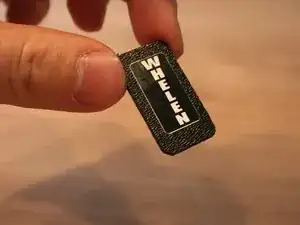

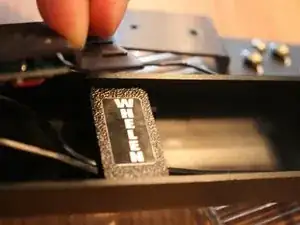

    • The wires are held back /retained by a stickon Whelen logo. The logo can easily be removed, just tear it off carefully.

  7. BnpnIrqhIFhSbEdY
    BnpnIrqhIFhSbEdY
    SoDfQtQpXL3VkJUT
    L3XAagMvQLGmSR52

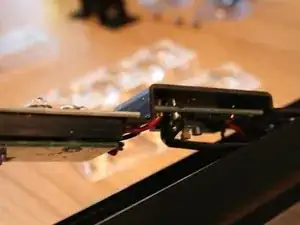

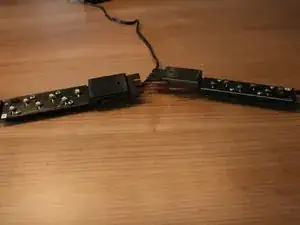

    • Once the Whelen logo tab is removed the light comes apart completley.

    • Take out the two metal brackets holding the light.

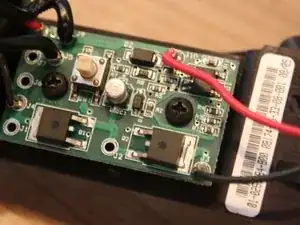

    • Note that one of the brackets holds (part of) the flasher assembly.

  8. P6WwvNAtY4rEVCNx
    P6WwvNAtY4rEVCNx
    2C1EZXRGsPNeWJNb
    BO4hLpfwTCEEoDME

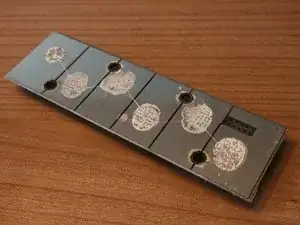

    • If desired, take out the six Philips screws to remove the LED circuit board from the bracket.

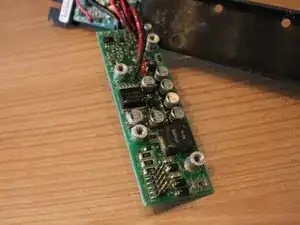

    • Note that the rear circuit board is held back by the same screws.

    • The LED board can easily be replaced by any other TIR6 board, any color (as far as I could check!)

    • Note that there is cooling paste between the LED board and the bracket. Make sure you replace it.

    Any suggestion on where to purchase replacement TIR6 board for super slimlighter?

    bandler -

  9. GsmePI3cPXDPj5Au
    GsmePI3cPXDPj5Au
    NoJCUaSHDBNBwjHP

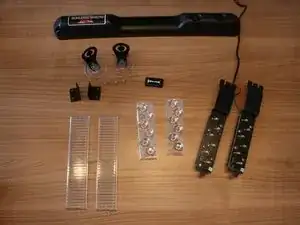

    • All done! No more steps required :)
