Teardown of the iControl networks Piper "Home Awareness Device". This is a WiFi video camera with motion sensor, battery backup, and the ability to connect to Z-Wave sensors.
Werkzeuge
-
-
Piper is held together with four "security Philips" screws located in the battery case. Each screw has a post in the middle, meant to foil use of a standard screwdriver. However....
-
If you don't have the right bit, just use a large #2 philips head screwdriver: the bit won't go deep enough to get tangled up in the security feature.
-

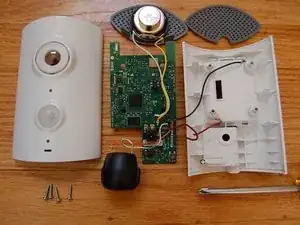

Once the screws are out use a plastic spludger to pry open four plastic clips holding the shell together.
-
-
-

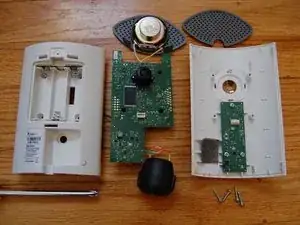

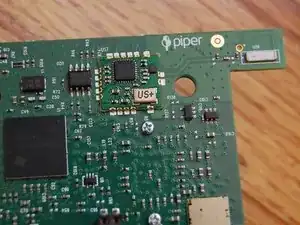

Piper is dominated by a large speaker, and a Mallory PS-953Q security horn. It's loud. The CPU is a Texas Instruments TMS320DM365 media processor with a ZW0301 based Z-Wave module.
-
Piper uses two tiny antennas, one for Z-Wave one for WiFi.
-
That's it... a pretty simple layout.
-
