The tornado of new Apple devices has taken us over the rainbow, and we have landed in the world of technicolor. We now "c" the light, but what will we "c" inside? Only tools, time, and tenacity will tell.

We know you are as anxious as we are to find out exactly what the "c" means. Here at iFixit, we like to answer the hard questions in life: "Why is it called the c? Why can't Apple name devices in a way that makes sense? What will the insides be like? What does the fox say?" You asked; we answered. So join us for a colorful taste of the Apple rainbow as we tear down the iPhone 5c.

Color your internet experience by following us on Instagram, Twitter, and Facebook.

  1. YMfCqAPANZHroNXN
    • It's a big day, today. We just finished the iPhone 5s teardown, and now it's time to move on to the iPhone 5c.

    • This is the second teardown of today's tear-a-thon, and though this device may be feeling blue, Teardown Team morale is higher than ever! Nothing can bring us down on such a beautiful night—if only the same could be said for these guys.

    • We've said it before, but we really want you, our adoring public, to know how grateful we are for our good friends at MacFixit Australia for letting us use their office in Melbourne for the second teardown. Remember, they stock Mac and iPhone upgrades/accessories.

    I have a IPhone 5c pink and I just noticed realised the screens coming off

    Blandhy -

    Hey Blandhy, it is possible that your battery is swelling up, pushing the screen away from the frame. This phone is fairly easy to open, so I suggest taking a look at the battery guide to lift the display and see if the battery looks more inflated than the one in the guide photos. Best of luck!

    Sam Goldheart -

  2. HLa3uhfDYEHpIM4x
    HLa3uhfDYEHpIM4x
    qo2yXoCstjIUQVwb

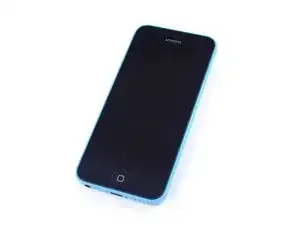

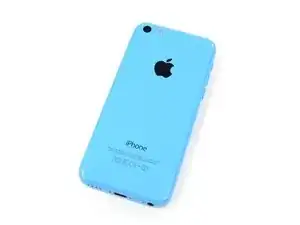

    • With an array of colors to choose from (White, Blue, Pink, Green, and Yellow), we decided upon blue.

    • What makes the iPhone 5c different from the iPhone 5s? We're bent on finding out. For starters, the rear case is composed of plastic—looks like our work here is done…

    • Technical Specs include:

    • Apple A6 system on a chip (SoC)

    • 4-inch Retina display with 326 ppi

    • 8 megapixel iSight camera

    • 4G LTE connectivity

    • 16 or 32 GB Storage

    "What makes the iPhone 5c different from the iPhone 5s?"

    iPhone 5 owners are actually more interested in the differences between 5c & discontinued 5.

    Benjamin D -

    from what i can see its only the colorful cases is what is different from the 5 and 5C

    David -

  3. ylMGR2Y2p4MnqXUr
    ylMGR2Y2p4MnqXUr
    gwdiwwIjSgTJN6r4
    O6WCBWuXwAOUcPUK

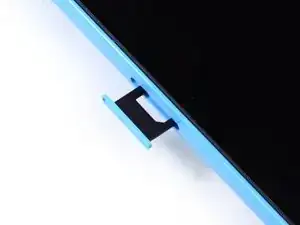

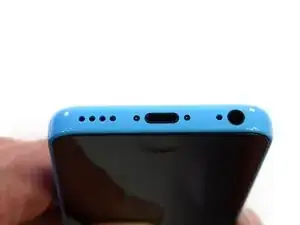

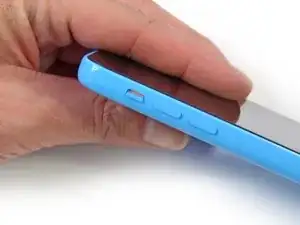

    • So what does the "c" really stand for? We've already identified a major difference in "color," but we aren't ready to close the book on this mystery, just yet!

    • As promised, every port, button, and slider has had its metal swapped out for plastic.

    • "Cheaper," per chance?

    • Not only are these parts made of plastic, they also look a lot more…"childish."

    • The volume buttons are considerably larger, and the 10-hole microphone grille and 16-hole speaker grille have been replaced with 1- and 4-hole grilles, respectively.

    Why use the word childish? The iPhone 5 was the first non-plastic shell iPhone wasn't it? Was the iPhone 4 considered childish? Are all the plastic Android-based phones childish? Well, forget the last comment because everyone knows the answer.

    plink53 -

    I know what "c" is for! And that's good enough for me.

    Edis0n -

    The original iPhone model had an aluminum case. The 3 and 3gs were plastic. The 4's went to a glass and aluminum frame. The 5 appears to me to be more steel than aluminum. The problem I saw with the 5 is a lack of seals like the 3's which meant oxidation will form around the edges (corrosion).

    ozarkana -

  4. EoL2J1njAaOdVaPT
    EoL2J1njAaOdVaPT
    EYCLhd2QHdiGa3MB

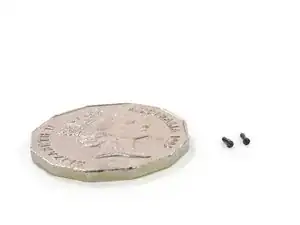

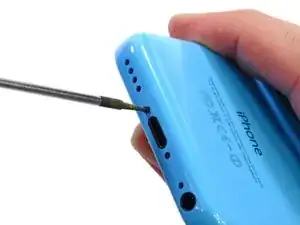

    • These super tiny Pentalobe screws are slightly different than the ones we found in the iPhone 5 and 5s.

    • Here's how the Pentalobe screws compare in size to an Australian coin of undetermined value.

    • ¡ʍouʞ oʇ ǝʌol plnoʍ ǝʍ 'sı uoıʇɐuıɯouǝp ǝɥʇ ʇɐɥʍ ʍouʞ ɹǝpun-uʍop spuǝıɹɟ ɹno ɟo ʎuɐ ɟı pu∀

    • EDIT: it's a 50 cent coin roughly an inch in diameter for the yanks.

    50 cent coin is the denomination

    heathsouter -

    The whole "durable shell" is not really true, after checking out some Test drop videos you can really see the its much worse then the aluminium in the iPhone 5S http://www.amongtech.com/first-iphone-5s...

    John Mark -

    17 year old fandroid performing the tests.

    plink53 -

    Just a small note here, the 50 cent coin in Australia is much larger than the 50 pence coin in the UK. So the photo can be misleading if you've had no experience with Australian currency. (Their notes have transparent plastic parts in them! :O )

    Oliver -

  5. YrVSxGR1xSVr1VFF
    YrVSxGR1xSVr1VFF
    XjwUxFZS31SpXZfI

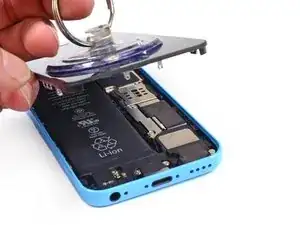

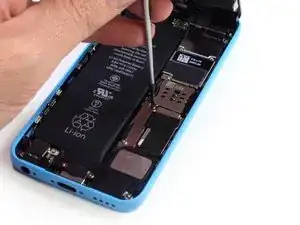

    • The front panel assembly is dispatched using a small suction cup. Despite the plastic backing, the display assembly of the 5c fits just as snug as the 5s and 5.

    • We are beginning to wonder if the "c" stands for "copycat".

    • Though it may look like we are performing painful dental procedures on a Smurf, we assure you that removing the 5c screws is as quick and painless as Novocain.

    So do i not need a pry tool to take the screen off? Just the suction cup?

    Faryn -

  6. PMHeKm3WNdWKIUZo
    PMHeKm3WNdWKIUZo
    rc2KSkaPaKgmtUhH
    RnwCdsZUwEnTGDvv

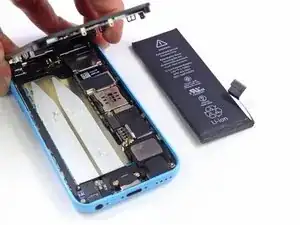

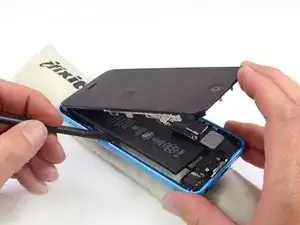

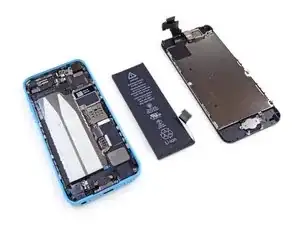

    • Removing the battery requires the assistance of our iOpener, a departure from the easy battery replacements of yester-year.

    • After a few minutes of heat and some diligent spudgering, we leave our iPhone 5c black and blue in a pile of pieces.

    • Too bad we didn't know in advance about these fancy new strips of stretch-release adhesive, or we'd have had a much easier time.

    I think those are not adhesive strips but thermal tapes.

    Prateek Garag -

  7. uThu6vr5dBLsMYeE
    uThu6vr5dBLsMYeE
    XYjWXC3Jj5VxQlv4

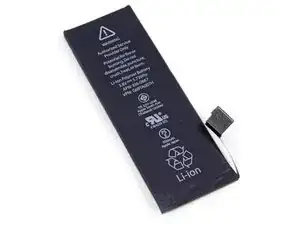

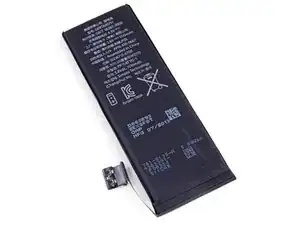

    • Checkpoint reached—battery released!

    • Though the 5c is essentially a repackaged iPhone 5 (in colored plastic, in case that hadn't been made apparent, yet), the battery has been beefed up a bit, clocking in at 3.8 V—5.73 Wh—1510 mAh, compared to the 3.8 V—5.45 Wh—1440 mAh battery of the iPhone 5.

    • Hopefully, this will address some issues with battery life brought about by the iOS 7 update.

    • Larger battery…Hmmm, could the "c" stand for battery "capacity?" It's a theory; it's probably wrong.

  8. nFjgZIToEmImyhMR
    nFjgZIToEmImyhMR
    6KwMQtC5QmBvTBBW
    XJVD1ETHZGN5PtVT

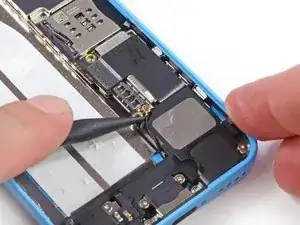

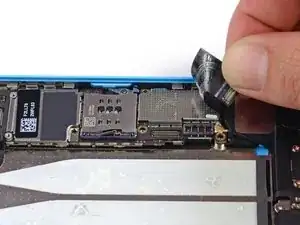

    • As we go to remove the antenna connectors with our trusty spudger, we notice something we haven't seen in any recent iPhone: adhered connectors.

    • In case our years of teardown tirades were too subtle, we'll reiterate: we strongly dislike glue.

    • On a scale from 1 to taking selfies with an iPad, strongly adhered devices rank right up there with proprietary screws and people who don't appreciate cheesy puns.

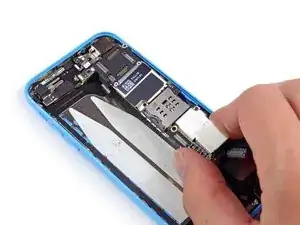

    • Annoying adhesive aside, we get to removing the logic board from our little blue iFriend.

    I guess the 4S isnt considered a recent iPhone even though its still being sold.

    Computech -

    I'd much rather have the insides of my phone secured to the point where they don't fall apart in normal use. I believe that is why Apple is using glue. They don't want people coming in with phones with tiny connectors that fell apart when a little bit of glue would have kept them in place forever. I know iFixit stresses repairability but I'd rather have a device that doesn't require repairs every five minutes.

    plink53 -

    The connector next to the battery connector in my case does not clip to the board, is this connected only by the pression and the glue?

    tegolategola -

  9. SdQCPGNljeFcZJp2
    SdQCPGNljeFcZJp2
    4PqFj3EpQPX3vclA

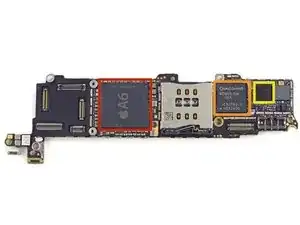

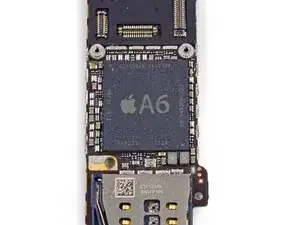

    • Front side of the logic board:

    • Apple A6 APL0598 application processor

    • Qualcomm MDM9615M LTE Modem

    • Qualcomm WTR1605L LTE/HSPA+/CDMA2K/TDSCDMA/EDGE/GPS transceiver.

    • While it's not as flashy as its newer counterpart, we have to admit a certain fondness for the A6.

    • The iPhone 5c contains Elpida B8164B3PM-1D-F 8 Gb (1 GB) DDR2 RAM under the A6 system-on-a-chip.

    Again, as I commented on 5s...I am very curious about the LTE & cell chipset(s)...4 different ones, seem to be shared between 5c & 5s http://www.apple.com/iphone/LTE/ ...I am wanting to know how Apple has dealt with this...is the cell section modular/interchangeable or just different chips soldered in the same slots on the logic board?

    They have a lot more iPhones to deal with than before: 5c=2 Mem sizes (only 1 on middle level iPhone in past), 5 colors, 4 LTE variations...5s=3 Mem sizes, 3 colors, 4 LTE variations. Whereas the non-LTE 4S has one cell chipset, 1 global model, 2 colors (1 mem size).

    So are they using a sub-logic board that is interchangeable for 5c or 5s? How is this changed from iPhone 5 (iPhone 5 could not do LTE in emerging markets, such as china, which is why it was discontinued, they had to have 2 LTE iPhones for these new markets, so, that is one of the main reasons for 5c and kill 5, also=biggest change from 5>5c).

    What is the same about 5c & 5s? How Logic board is attached?

    Benjamin D -

    For iphone 5 they use the same PCB with different chips, for iPhone 5c/5s they use two different PCBs for US/world versions that are very different.

    Tom Chai -

    Just different chips soldered in the same place on the board. The circuitry is the same for each chip allowing Apple to the same board just different chip.

    Alec -

  10. lnGGYTImje2ZjLkW

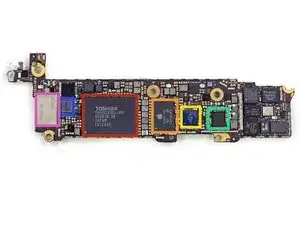

    • The back of the logic board:

    • Toshiba THGBX2G7B2JLA01 128 Gb (16 GB) NAND flash

    • Apple 338S1164

    • Apple 338S1116 Cirrus Audio Codec

    • Qualcomm PM8018 RF power management IC

    • Broadcom BCM5976 touchscreen controller

    • Murata 339S0209 (based on the Broadcom BCM4334) Wi-Fi module.

    Whose gyro and accelerometer is built in? Thank you

    Mark -

  11. ilXmYpCY6dY3KRTA

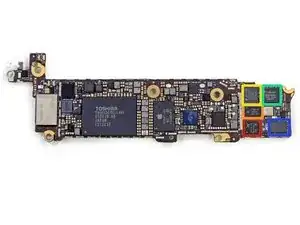

    • Backside of the logic board continued:

    • Skyworks 77810-12

    • Skyworks 773550-10

    • Avago A790720

    • TriQuint TQM6M6224

    • Avago A7900

  12. ALmFsPB2O4MaBIS3
    ALmFsPB2O4MaBIS3
    1aocWTDq2qabNjah
    hlPiF16iBTOvJPEg
    • Since we have both of the new iPhones on the table, we'll take a little comparison tour:

    • Interestingly enough, the 5s (on the right) sports a slightly lighter display assembly, despite the addition of a fingerprint sensor and luxurious sapphire home button.

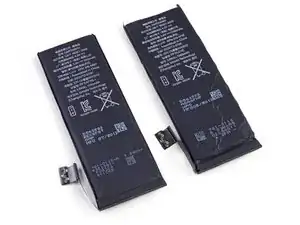

    • The 5c's 1510 mAh battery is just a hair slimmer than the 1560 mAh battery of the 5s.

    • We've been wondering if there's any chance of cross-compatibility of display assemblies between the 5c and 5s.

    • Alas, the FaceTime/speaker connectors are different sizes, killing hope of that plan.

    • We are sorry to crush any hopes and dreams, but in the mean time, our Googling has revealed the answer to a question that has been haunting us for weeks.

    So you mentioned that the 5s and 5c screen assemblies are incompatible, but my question is can i put an iPhone 5 screen (i.e. a white one) onto a 5c?

    Ben Stone -

    The iPhone 5C and 5S LCD and Digitizer Assemblies have to be the same. They might have different prox flex's (camera, prox, speaker) but they are both compatible.

    Alec -

    No. You would need an iPhone 5S screen assembly.. The connections are in a different place and are different making it so you can not use an iPhone 5 screen on an iPhone 5S/C

    Alec -

    Could you put the 5s screen/TouchID sensor onto a 5c body? And perhaps have the 5c run the TouchID?

    That's what I'd really want.

    Philip Snowden -

  13. oqlFOx3MYFSxI1G1
    oqlFOx3MYFSxI1G1
    NcTeqrNB5BOOJ1xP

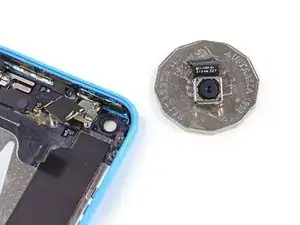

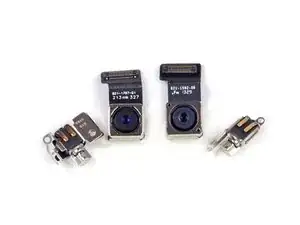

    • Flip you for it! Tails or rear-facing camera?

    • Comparing the cameras on the iPhone 5c (left) and 5s (right), we see little difference between the two. The one difference between the 8 MP rear-facing cameras is the aperture. The 5c boasts an aperture of f/2.4 compared to the f/2.2 of the 5s.

    • Additionally, the vibrator motor assembly in the 5c is actually slightly larger than that of the 5s, despite its similar component design.

    f/2.2 is actually better.

    Jason Murray -

  14. GmpgLqAoTj2Ny1de
    GmpgLqAoTj2Ny1de
    rEIYs41jhOyLdegY

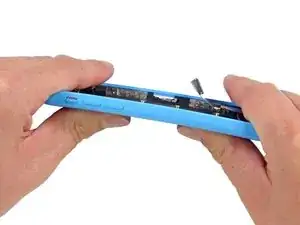

    • You've seen the internals, but a new question remains…Will it bend?

    • We may not have super strength, but we put this case to the muscle test, anyway. The results: this lacquered plastic is as strong and blue as Captain Planet.

    • It's good to know that, though the rear panel is made with plastic to presumably cut costs, Apple did not compromise build quality in the process.

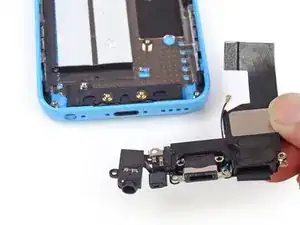

    • Next we rip out the 5c's still-beating heart ports.

    • Much like internal organs, these ports are connected, so there is no easy way to get at just one of them.

    • Continuing this analogy, our ideal person, much like our ideal device, would be modular like this (work safe, we promise).

    I wonder if the case is made out of plastic because it can be manufactured easier than the aluminum case. The video showing the injection molding, CNC detailing and drilling (aluminum can handle a much smaller hold than plastic since it doesn't melt at a low temperature), and robots "gluing" and placing the (probably stamped) steel antenna frames should be less expensive and faster to do than milling an aluminum block and finishing it. This process can be done in any country. I'd like to see how the individual components are added. It would be really fantastic if Apple were able to construct a robot and parts that could be totally put together my machine instead of requiring tiny hands to place tiny components and insert even tinier screws.

    plink53 -

    So with the connections being different on the logic board for the display, would it be physical possible to swap the innards of the 5s into the 5c?

    beerad -

    At the end of this teardown they did a side by side comparison of the 5c and 5s back housing designs and they seem to be interchangeable as they appear to have the screw holes in the same format on both 5c and 5s rear casing. I could be reading it wrong but the teardown says it will do a side by side comparison of the 5c and 5s back housing and only the only difference mentioned is the plastic vs metal.

    jeremylester56 -

  15. KvwVV3ZoMCofPTOH
    KvwVV3ZoMCofPTOH
    ZHDXCmjJ53LSRAmi

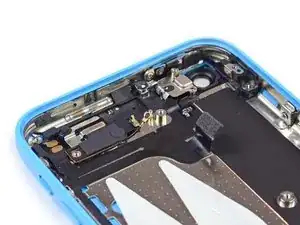

    • All we're left with is a serious case of the blues.

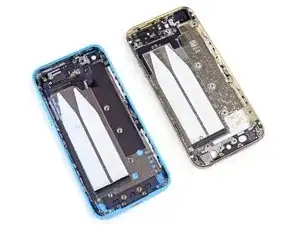

    • Standing next to its sibling, iPhone 5s, the colorful 5c case looks very similar in structure.

    • The most noticeable difference is (unsurprisingly) the material.

    • The less visibly noticeable difference is weight: A greater mass of plastic is required to match the strength and durability of a lesser mass of aluminum. The 5c rear case is way heavier: 43.8 g vs 25.9 g for the 5s.

    • Nestled within the polycarbonate backing, is a steel frame that serves as an antenna and structural support.

    • As we approach the end of our teardown, we think we have solved the mystery of iPhone naming convention: and here it is.

  16. lYatl1EirAx2pYF4
    lYatl1EirAx2pYF4
    yhHxUvayw2rNdltu

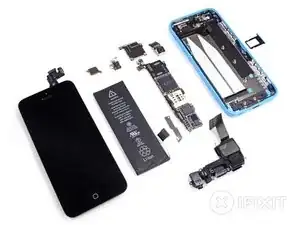

    • iPhone 5c Repairability: 6 out of 10 (10 is easiest to repair)

    • Just like in the iPhone 5, the display assembly is the first component out of the phone, simplifying screen replacements.

    • The battery is still fairly easy to access, even though it's not technically "user replaceable."

    • Adhesive on the antenna connectors hinder disassembly.

    • The battery has lost the 5's convenient pull tab, and gained more resilient adhesive—it now requires heat and prying to remove.

    • The iPhone 5c still uses Pentalobe screws on the exterior, making the 5c difficult to open.

    • The front glass, digitizer, and LCD are all one component, thereby increasing cost of repair.

    The one score down is totally unfair. Apple chose the command tapes for easy removal, and you guys took one score off just because you didn't know how to use them. This device should get at least 8, very modular design and straightforward repairs. The only frustration is the fused display
