iPod Touch 6th Generation Teardown

Geschrieben von: Andrew Optimus Goldheart
Veröffentlicht: 17/07/15
  • Kommentare: 45

iPod Touch 6th Generation Teardown

Veröffentlicht: 17/07/15

Teardown

Einleitung

Apple has literally been calling their iPod Touch 6th Generation "the best iPod touch yet." While they are giving their music box some of the iPhone's newest duds, only teardown will tell if this iPod is up to repairability snuff. Join us for some sweet disassembly, and some spicy X-ray action.

As always, keep in touch (get it, haha) with us by following iFixit on Facebook, Twitter, and Instagram.

  1. C2ZSesFhFEONlvOB
    C2ZSesFhFEONlvOB
    YLJCTB6wLMyAXwIC

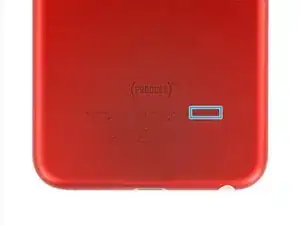

    Q1IsXX1CCnvPfvWx

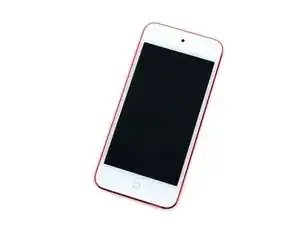

    • With the same A8 processor and M8 coprocessor as the iPhone 6, it's hard not to get excited about the next-generation iPod Touch. Let's check specs:

    • 4-inch 1136 x 640 pixels (326 ppi) Multi-Touch IPS Retina display

    • 802.11a/b/g/n/ac Wi‑Fi + Bluetooth 4.1 wireless technology (a whole .1 better than the 5th gen!)

    • Six-axis gyro + accelerometer

    • 8 MP, 1080p iSight camera with ƒ/2.4 aperture and 1.2 MP, 720p HD Facetime camera with ƒ/2.2 aperture

    • Shiny new model number: A1574

  2. Being that the iPod Touch hasn't seen a full-blown update since 2012, we'd like to see what we're up against.

    • Being that the iPod Touch hasn't seen a full-blown update since 2012, we'd like to see what we're up against.

    • Fortunately, we brought friends. With superpowers.

    • Thanks, Creative Electron!

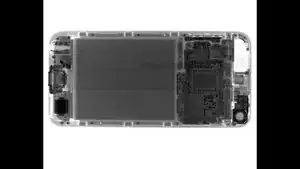

    • Cry havoc and let fly the X-rays.

  3. 1YUG5efVysERfAph
    1YUG5efVysERfAph

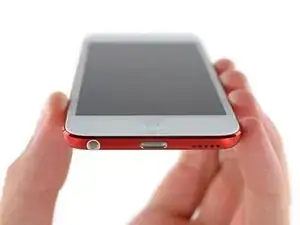

    QXILCWNfaNU1jY3g
    AGWUmikAJSuBRBTA

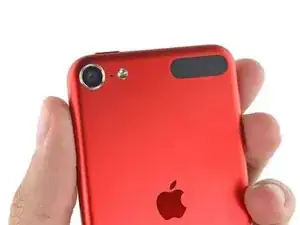

    • This new Touch now comes in gold, in addition to blue, pink, (Product)Red, silver, and space gray.

    • The bottom of the device contains no surprises with a now-familiar Lightning port, headphone jack, and speaker grille.

    • Unlike recent iPhones, this Touch lacks a Touch ID sensor. Although it sacrifices Apple Pay, this is good news for repairability since Touch ID buttons are paired to their corresponding processor.

    • On the other side, the inside, we catch a glimpse of the home button and Lightning connector.

    • The little curved prongs help your Lightning connector snap into place, and stay there.

  4. Z4PDnEeQNyVSMLQU

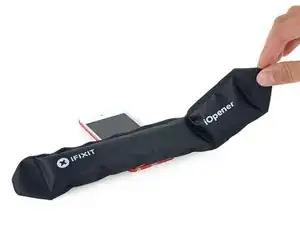

    Z4PDnEeQNyVSMLQU
    LCHCgRDtaQJNKwoS
    DMo1lb6WL1hquW6v

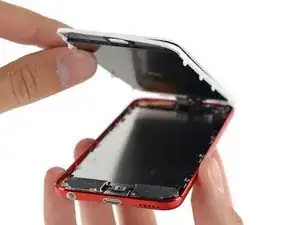

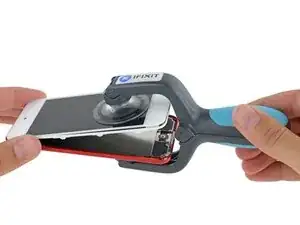

    • Heat. iSclack. Repeat—this digitizer/LCD panel is no match for our opening procedure.

    • The adhesive on this display seems tougher than last time, but maybe we're just rusty after a year without an iPod refresh.

    • With the display assembly out of the way, we're one step closer to the innards.

  5. RNSNEHmyuXW2jCSK

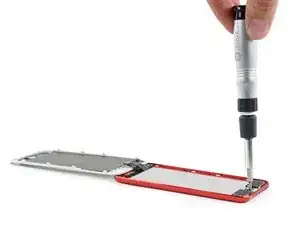

    RNSNEHmyuXW2jCSK
    aNhyeexR25OLxQCy

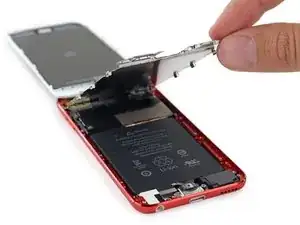

    • We're eager to delve deeper into this new Touch, so we grab a screwdriver and set to work on extracting the EMI shield.

    • Lifting the shield, we get a glimpse of familiar territory. So far things look pretty darn similar to the 2012 vintage.

    • We won't get our hopes up, but maybe changes made with the processor bump include separating a few components off the soldered-together mess of the 5th gen.

    make sure to use a #00 screwdriver instead of the #000 screwdriver that they recommend. i’ve stripped so many screws because of a #000 screwdriver

    Tyler -

  6. SMlrSuAQipZWSTQ1

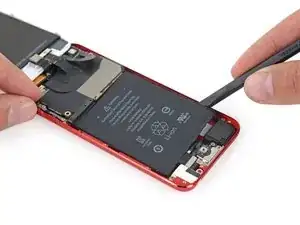

    SMlrSuAQipZWSTQ1

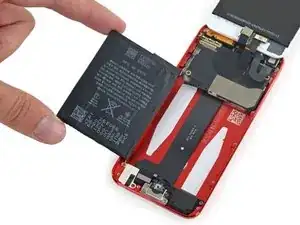

    2r5KPDJuoXxnbUgn

    • We've been down this road before, and we're pretty confident in our technique for getting the battery out. Unless of course, something has changed...

    • And something has! Looks like the new Touch has peel-out adhesive tabs securing the battery, an update to battery-securing tech we saw in the iPhone 5s. (Although we're scratching our heads about how to peel out a tab that's under the logic board).

    • This Touch totes a 3.83 V, 3.99 Wh battery with a rating of 1043 mAh, as opposed to the 3.7 V, 3.8 Wh, 1030 mAh rated battery found in the 5th Generation Touch.

    • Even with the Touch's advertised performance increases over the previous generation, Apple claims that the battery in this new iPod should supply up to 40 hours of dubstep music, or up to 8 hours of video playback.

    Easy, you are supposed to desolder the battery and the dock flex first, remove the logic board then access the battery.

    Tom Chai -

    Here's a video describing how to desolder and swap the battery. Just remove the two stickers, and you'll see the three ribbon cable contacts.

    nicO Gurney -

  7. yRSXhXTqyOqP6exi
    yRSXhXTqyOqP6exi
    6TZMJWtvZAlwT1R5

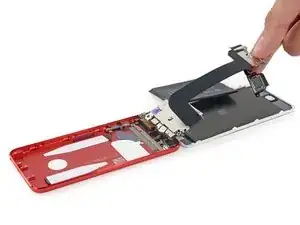

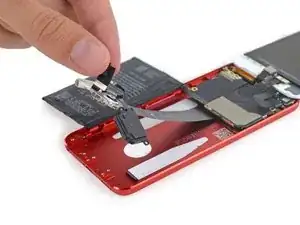

    • After the battery comes the lower assembly, home to the Lightning connector, speaker, microphone, headphone jack, and home button switch. Say that five times fast.

    • In lieu of that wiggly yellow flex cable, a new, straight ribbon cable connects the lower assembly to the underside of the logic board.

    • Despite the new cable, Apple has yet to come to their senses and stop soldering this assembly directly to the logic board. Nuts!

  8. euCS3xKHorDoykCU
    euCS3xKHorDoykCU
    Bg1OdmHOwqRY23RO

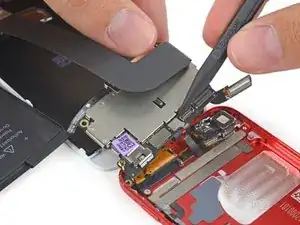

    • A little bit of careful spudgering goes a long way.

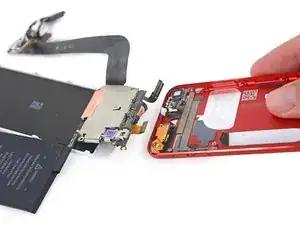

    • We pop off these connectors and are free to separate the two assemblies—the rear case assembly, and the "everything else" assembly.

    • Leftover in the rear case:

    • Antenna assembly

    • Battery adhesive (oops)

    • Snarled volume button/power button/rear flash/microphone cable assembly

  9. T4YxdVZKWH1GJwdZ
    T4YxdVZKWH1GJwdZ
    r1mv6dMq5o3kXNYZ
    1aNKYS3ulJfhP1I2

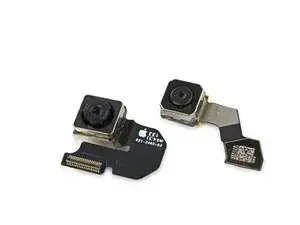

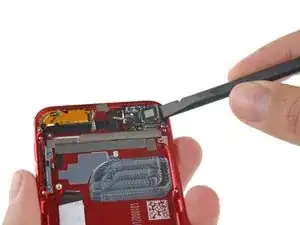

    • With a gentle flick of the wrist, the rear-facing camera is free and ready to pass inspection alongside its cousin, the iPhone 6 camera...

    • For your viewing pleasure: the 8 MP iPhone 6 camera (left) and the 8MP iPod Touch camera (right).

    • Physical size serves as a pretty accurate indicator of relative quality. Despite the equal pixel count, the Touch's camera lacks some of its cousin's finer features, such as the sapphire crystal lens cover and auto image stabilization.

    • The Touch's ƒ/2.4 aperture also falls short of the 6's ƒ/2.2.

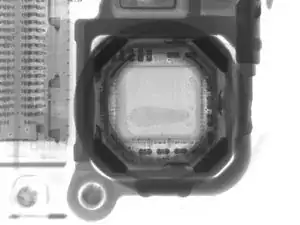

    • File away this X-ray image of the iPod's primary camera. If rumors can be believed, the next iPhone may far outshine the sensor seen here.

  10. uFPBIupbaxKNyOFC
    uFPBIupbaxKNyOFC
    u6pXycsCLoJbx3CT
    vLIaK4qKVADQEMsP

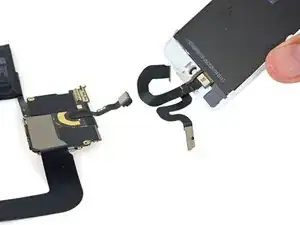

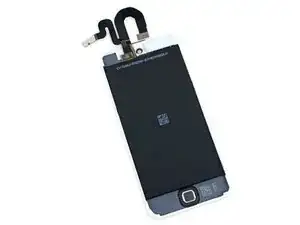

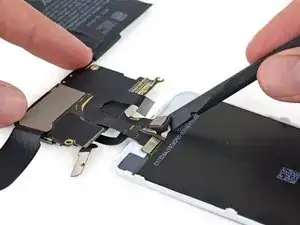

    • Turning our attention to the "everything else" assembly, we quickly set to work on liberating the front-facing camera, and find ourselves facing a tangle of display cables. It's a good thing our teardown engineer has the touch it takes to handle this messy bundle.

    • With some deft tweezing, we are able to extract the front panel.

    • The display is almost the same as previous Touches, but hey, it has a white bezel now!

    Would this lcd work for the 5TH gen? Or is the frame dramatically different?

    iliketurtuls -

    We haven't tested it, but physically there doesn't seem to be any difference between the 5th and 6th gen front panels.

    Andrew Optimus Goldheart -

    1610A2 not display controller. This is Lightning port controller ! and 6573 is diplay PMU.

    Plain0 -

    We've updated the 6573. Good catch! Thanks.

    Jeff Suovanen -

    Possible to put a nano-sim in here somewhere?

    did they outfit t6g with the capability of 3g/4g sims?

    Millions to who figures it out....

    Josh -

    I'll bite... after that, all you need is somewhere to hook up an aerial and GSM radio... then you'll have something a lot like an iPhone 5C.

    Adam C -

    No light sensor just as the previous generation (and opposed to the 4th)?

    serenadv -

    can we put this camera of ipod touch 6th gen to the lpod touch 5th gen? is it compatible?

    thank's

    juantajoe -

    So i didn't see this listed, but is it safe to assume the battery is still soldered to the mainboard?

    Chandler Pelham -

    Yep, it's definitely still soldered. The assembly in the layout (battery/logic board/ports) is as separated as it gets without desoldering.

    Sam Goldheart -

    Hi. Will the new iPod touch 6th Gen dock onto an iPod touch 5th Gen docking cradle which has audio out (the cradle has 2 pins; one for audio (into the headphone socket), the other charging (lightning connector). I have an iPhone 5 and want to be sure the iPod Touch 6 will dock properly on both connections on the dock I have for iPhone 5.

    wayne -

    where can i purchase the lcd digitizer for the ipod touch 6th generation????????

    raytollefson67 -

    FYI gents, The 5th gen LCD will work on the the 6th gen. Tested 100%

    Dave -

    is it true? I curently looking for screen of itouch 6th gen and i cant find . im thinkibg to use itouch 5th gen sceeen instead. Is it really work? does the graphics change or anything change ? pls answer me thank you

    alm yuwysha -

    Looks like they kept the same Cirrus Audio controller since the last refresh 3 years ago, which is not really acceptable since these cannot power decent size headphones properly due to it being underpowered. This is why I have to use a FiiO E18 portable amp / DAC to bypass the internal amp to power headphones properly.

    adslnerd -

  11. tApoJrTa4VWhp2eI
    tApoJrTa4VWhp2eI
    q2jlRn6mm2xdy2rq

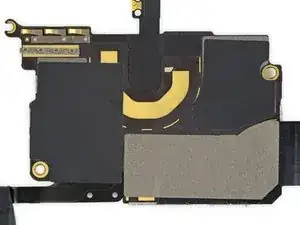

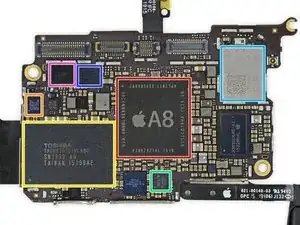

    • Let's touch some of these chips, shall we? This logic board is packing:

    • Apple A8 APL1011 SoC + SK Hynix RAM H9CKNNN8KTMRWR-NTH 1 GB LPDDR3 RAM (Same as iPhone 6, but underclocked to 1.10 GHz per core)

    • NXP Semiconductors LPC18B1UK ARM Cortex-M3 Microcontroller (better known as the M8 Motion Coprocessor)

    • Toshiba THGBX3G7D2KLA0C 128 Gb (16 GB) NAND Flash

    • InvenSense MP67B 6-axis Gyroscope and Accelerometer

    • Universal Scientific Industrial 339S0231 Bluetooth/Wi-Fi Module (Probably based on Broadcom BCM4354)

    • Broadcom BCM5976 Touchscreen Controller

    • Texas Instruments 343S0645 Touchscreen Controller

    WLAN/BT part is BCM4345 (same as iPhone 6) per Chipworks.

    mdg1111 -

    Do have a schematic diagram for this iPod

    Thanks

    Ayser shuhaib -

  12. QdKIDMC6nSQkMEmI

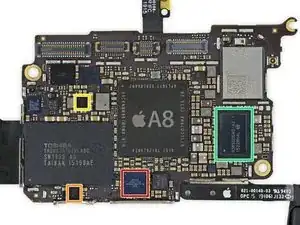

    QdKIDMC6nSQkMEmI
    X5kfinkJLL4oNqPC

    • More chips, more fun.

    • Apple 338S1116 Cirrus Audio Codec

    • NXP Semiconductors 1610A2 Display Interface Controller

    • Texas Instruments TPS65730A0P Power Management IC

    • Apple 338S00040-AZ Power Management IC (presumably a variation of the 338S1251-AZ PMIC found in the iPhone 6)

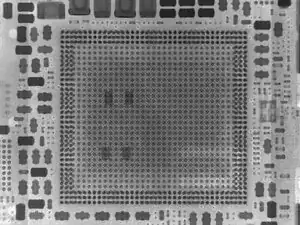

    • X-ray bonus round! Let's not forget our closer look at the uber-powerful A8 processor.

  13. uwamAMjulWtMVAGQ
    uwamAMjulWtMVAGQ
    WmACV5HO2TvZfukI
    JO3UB3Ma4krVnXwV

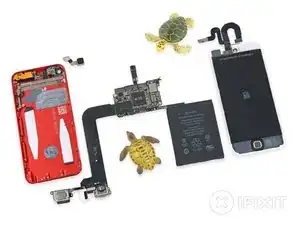

    • iPod turtle Touch 6th Generation Repairability Score: 4 out of 10 (10 is easiest to repair)

    • While very difficult, opening the case and replacing components is not impossible.

    • The battery is adhered with pull tabs that should aid in battery replacement.

    • Many components are soldered together, requiring either a very difficult or a very expensive repair if any one part breaks.

    • There are no external screws. Instead, a combo of clips and adhesive makes it difficult to open the case.

    • Ribbon cables connected to the logic board run over the top and connect on the bottom, making it difficult to remove the board or disconnect the cables.

    • And of course, a big high-five to our pals at Creative Electron for their awesome images and expertise!
