Einleitung

  1. RAtJbVgEQCfVPNOG
    RAtJbVgEQCfVPNOG
    RhxCsowiUWvBjRFH
    a52YWrQ6rMOxXbxF
    • Slide the opening bracket to open the back cover.

  2. amcECdPbagdC4Pjk
    amcECdPbagdC4Pjk
    PKHwsl6yWFZWxrtX
    aSdqbZeIZJPbsxkq

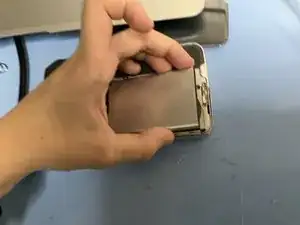

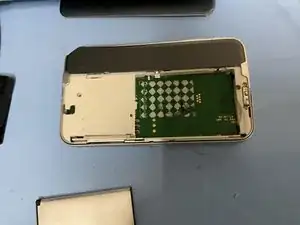

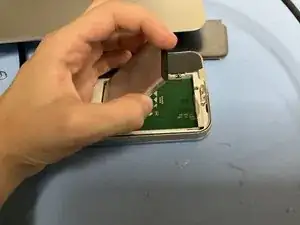

    • Pull the battery off

  3. PVEh3hULdE6JHVJa
    PVEh3hULdE6JHVJa
    Xu2BgtSZdBOaSSnE

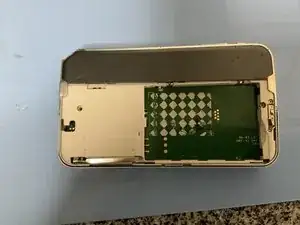

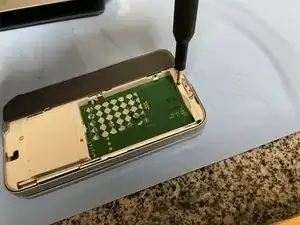

    • Remove the four screws T5 screws.

  4. QjIP1DYGF4YDMKRZ
    QjIP1DYGF4YDMKRZ
    wGJ66HfYeI5nv3ZN
    • Using a spudger open the antena bracket

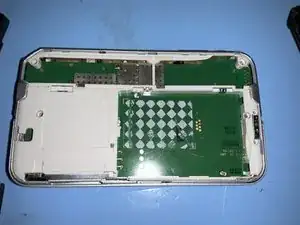

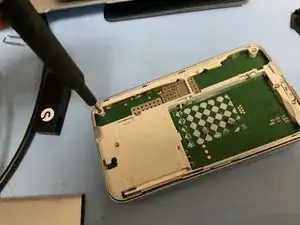

  5. WYX6rxVcKgBOuWpZ
    WYX6rxVcKgBOuWpZ
    RrWHGwWRYjRGDPYj
    PquDAYsdUpFHuGII

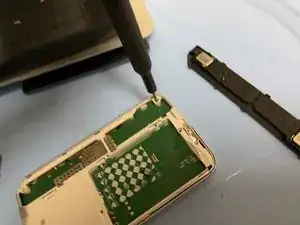

    • Remove the 2 T5 screws.

  6. BXKbbuJUCGF2ODtG
    BXKbbuJUCGF2ODtG
    K1OjEXe4mNMylBEB
    nGTovEjEfUQHIKp5

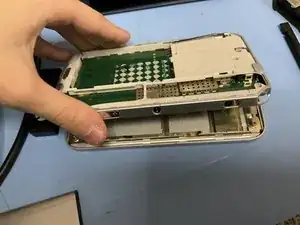

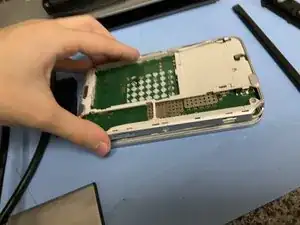

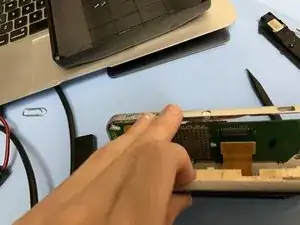

    • Lift the back and separate the flat cable from the motherboard.

  7. 2WEIalMG2IsImuXo
    2WEIalMG2IsImuXo
    iLXGHwqMExkcRtgu
    yTh3taQdGHZZ6Fh2

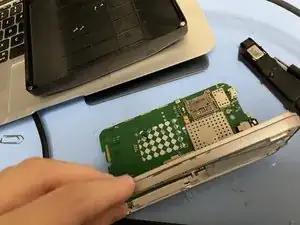

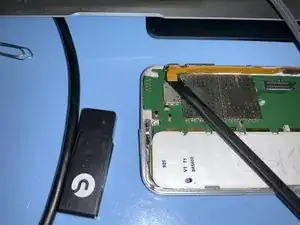

    • Remove the buttons. And the motherboard

  8. FDYBYlcUiDd3LNZF
    FDYBYlcUiDd3LNZF
    YgaBFPCqJk2obhpH
    W5KbqlfIUF2xnohM

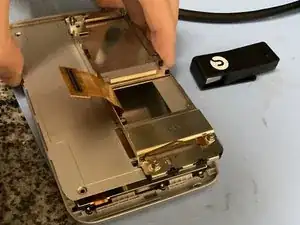

    • Remove 5 T5 screws.

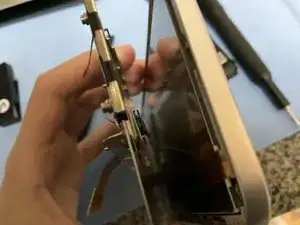

    • Lift the metal back and disconnect a cable connector.

  9. Ps4KiZSQoOAXAknp
    Ps4KiZSQoOAXAknp
    UXmyhx3TZx1okaGv
    oTX554UIOfKNhMiP

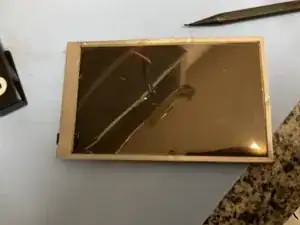

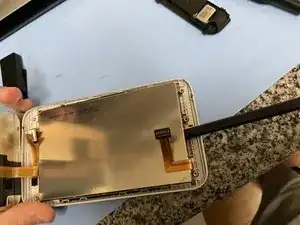

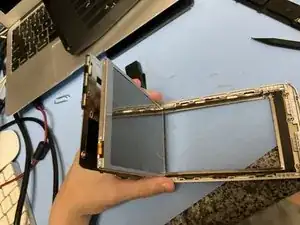

    • Pry the display out.
