Features:

Inside / Outside, Ceiling / Wall Mounting, Quick Release Battery Pack

Night Vision

Two Way Talk

Adjustable Motion Sensors

1080p HD Video

115° Field of View

2.4GHz Wireless B/G/N WiFi Connectivity

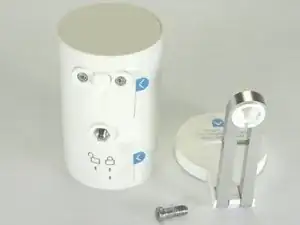

Remove the screw holding the mounting bracket to the ring camera with a Torx T15 Tool.

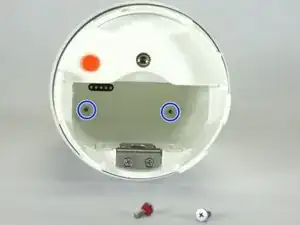

Twist off bottom cover to access PH00 screws

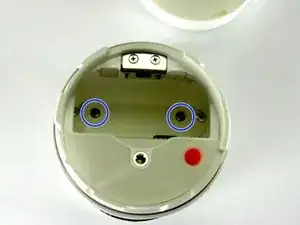

Remove the PH00 screws at the top of the battery compartment.

Remove rubber pad in the battery cover with the Spudger Tool or flat head screwdriver to reveal PH00 screws that hold the battery compartment to the ring camera enclosure. Remove the PH00 screws.

Pry off the top cover with the Spudger Tool or a flat head screwdriver. The top cover pad is glued on and may be hard to pry loose. The top cover is thin, so no need to go to deep to pry off top cover

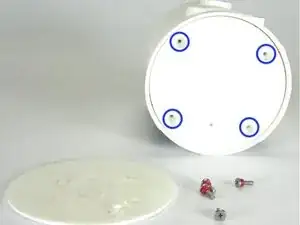

Remove the top cover PH00 screws.

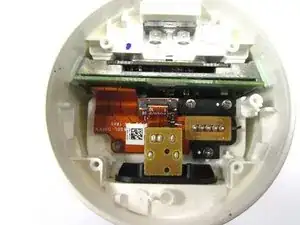

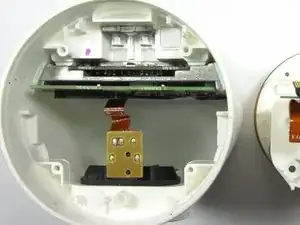

Pry off the top cover to reveal internal electronic components. The top cover is held in place with an O-Ring.

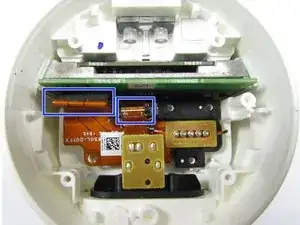

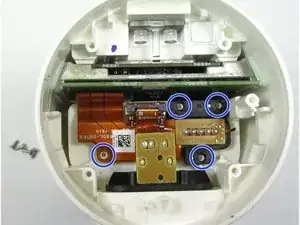

Remove the four PH00 screws that hold the Power and Battery Connector PCBs

Then, gently, loosen the flex ribbon cables from their connectors with the Spudger Tool, and pull the flex cables away from the connectors.

With Spudger Tool, gently press down on the Battery Holder from the topside until it become loose. The Battery Holder, at this step, is held in place via an O-Ring. Once the Battery Holder becomes loose, gently pull it out the rest of way via the bottom of the ring camera enclosure.

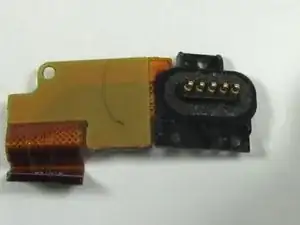

Once the battery holder compartment has been separated from the ring camera enclosure, the battery interface PCB can be pried off the battery holder compartment using the Spudger Tool.

Remove the RF Shield with the Spudger Tool. This can be removed during this step or after the PCB has been removed from the ring camera enclosure. Removing the RF Shield now helps simplify additional steps that may be needed in the teardown.

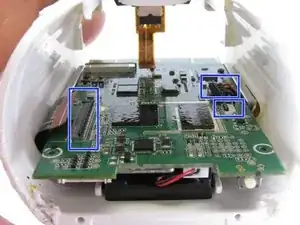

Loosen the two flex cables by using the Spudger Tool to pry up the flex connector tension strip. Then use the Spudger Tool to pry up the four-wire connector cable. This cable will pop up from the connector

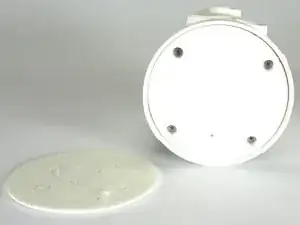

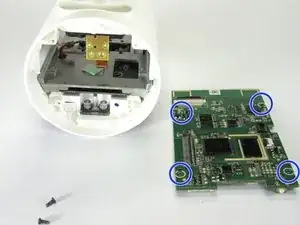

Remove the four PH00 screws holding the PCB in place. Then use the Spudger Tool to gently pry the PCB from the double stick tape holding the PCB.

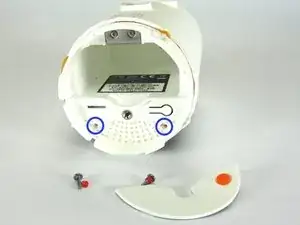

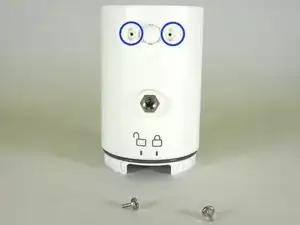

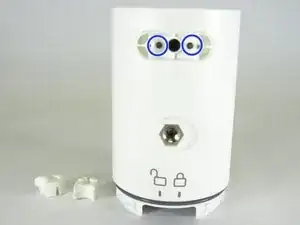

Remove the two screws on either side of the power connector located on the top back of the ring camera enclosure using the PH2 tool.

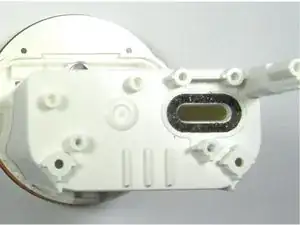

Then using the Spudger Tool, pop of the rubber covers on either side of the power connector cover in the back, and pry off the power connector cover. This will reveal two PH00 screws that hold the external power interface to ring camera enclosure.

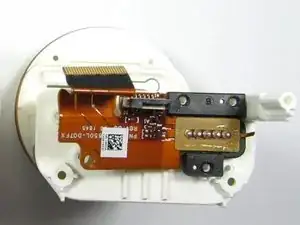

Remove the two PH00 screws on either side of the external power connector. Then gently using the Spudger Tool pry the external power connector from the ring camera enclosure.

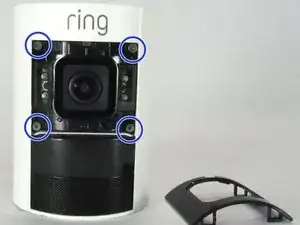

Use the Opening Pick Tool to remove the face from around the ring camera. Insert the Opening Pick Tool between the camera face and ring camera enclosure, and work the Opening Pick Tool around the edges to release the retention clips of the camera faceplate. The Spudger Tool can also be used to pry off the camera faceplate.

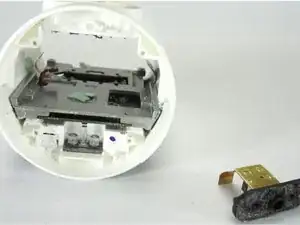

Remove the four PH00 screws located around the camera face. Once the four PH00 screws have been removed. Use the Spudger Tool to push the camera body loose from the ring camera enclosure. Then remove the camera body from the ring camera enclosure. This will remove the internal metal assembly that hold the camera, and PCBs.

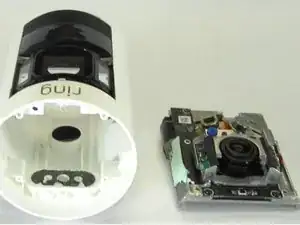

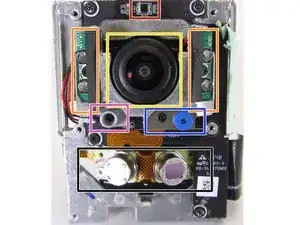

With the camera body removed from the ring camera enclosure, we can do a review of the components that make up the camera body.

Light Sensor

Camera / Camera Len

Multi-Color LED

Vesper VM1010 Wake-On-Sound MEMS Microphone

PYD1698 Excelites Tech Low Power Motion PIR Sensors

Infrared LED Lights

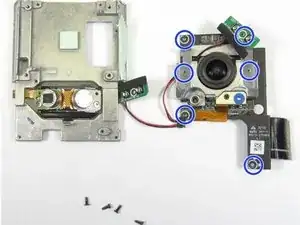

To separate camera, and IR Light LEDs, from camera body remove the six PH00 headed screws.

To remove the MEMS Microphone, remove the PH00 screw.

To remove the PIR Sensors, remove the two PH00 screws holding the PIR Sensor board to the Camera Body.

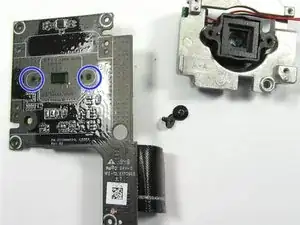

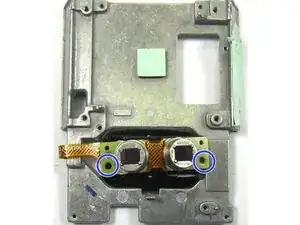

To separate the camera Lens from the Camera Sensor PCB, remove the two PH00 screws from the back of the PCB.

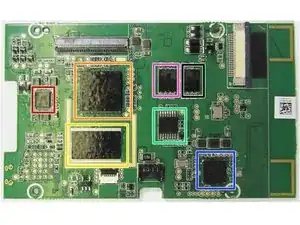

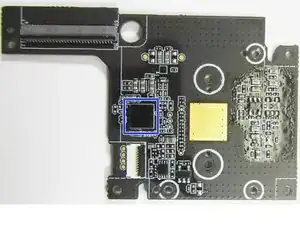

Turning our attention back to the Main System PCB removed in an early step we can see the following components that are on the backside of the PCB. The PCB is partially conformal coated.

TI CC3220S WIFI Controller – Single-Chip Wireless MCU

Skyworks SKY0100F

TI LC125A – Quad Buss Buffer Gate with 3-State Outputs

TI MSP430FR5739 MCU

WINBond 25Q64FWIG – 64Mb Flash

Turning our attention back to the Main System PCB removed in an early step we can see the following components that are on the frontside of the PCB. The PCB is partially conformal coated.

Omni Vision OV00798-B56G-IC - Camera Video Processor

WinBond W631GU6M3121 – 64M x 16 SDRAM

WinBond 25Q32JV10 – 32Mb Flash

WinBond 25Q64JV10 – 64Mb Flash

TI LC125A – Quad Buss Buffer Gate with 3-State Outputs

ES 5J SEN

Nordic N52832 Bluetooth 5/Bluetooth Mesh – Not listed on packaging / Product Specifications

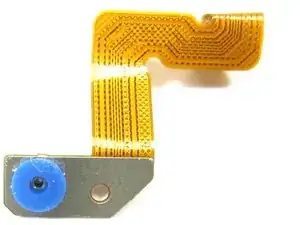

Frontside close up view of the MEMS Microphone.

Vesper VM1010 Wake-On-Sound MEMS Microphone

Backside close up view of the MEMS Microphone, which shows the Microphone port.

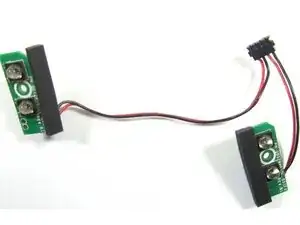

Close up view of the IR Light LEDs

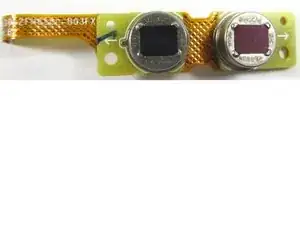

Close up view of the PIR Sensors

PYD1698 Excelites Tech Low Power Motion PIR Sensors

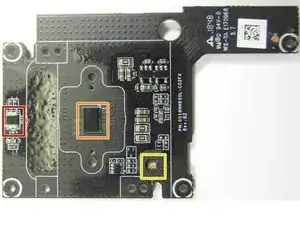

Close up view of the camera sensor board frontside

Image Sensor - Possibly from Omni Vision. Since Omni Vision Camera IC is used in the ring camera

Light Sensor

Multi-color LED

Close up view of the camera sensor board backside

TI 7BC098B1 A1C3021

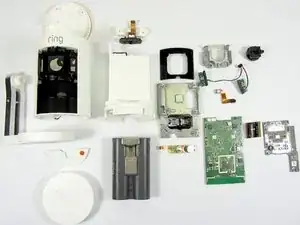

Teardown Exploded View of the ring Stick Up Camera
