vixt VOOM re-fillable pod Teardown

Geschrieben von: David
Veröffentlicht: 06/02/22
  • Kommentare: 0

vixt VOOM re-fillable pod Teardown

Veröffentlicht: 06/02/22

Teardown

Einleitung

When the re-fillable pods starts to near end of life they mainly are just clogged in the coil core, this teardown will expose the coil to help the reader clean it and to prolong the life of their pods.

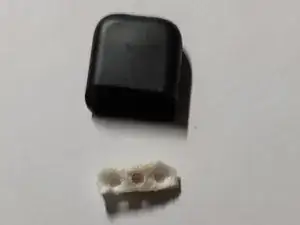

  1. jRGyMNFGYlJbRnQJ
    jRGyMNFGYlJbRnQJ
    56yjcSCRWvwOZGWl
    Mk432SfgGpZSeRo1

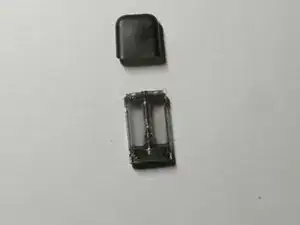

    • Remove the cap.

    • There is a small filter/padding at the top, inside, the cap. It is very fragile after the pod has been used, and will disintegrate if removed.

  2. rfUPe2QldDUkcJvw
    rfUPe2QldDUkcJvw
    aitOYXZ2IKWysZFv
    YNVOM2QC4QGyXGRV

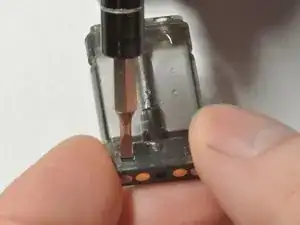

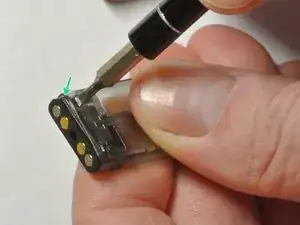

    • Pry the four tabs on the back of the pod

    • When one of the corners lift, start working on the next one.

    • Heads-up. The bottom part might fly away from you when it releases.

  3. qSZWNxAZsnGOriXn
    qSZWNxAZsnGOriXn
    HLtM1wjM3mq5n1x4
    Q5PWDykY22DDPofm

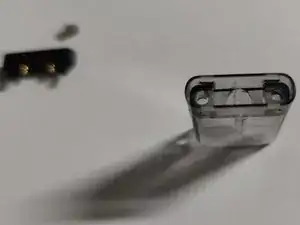

    • The tank has a thru-hole on one of the sides, sealed off with one of the legs of the bottom plate and a rubber cone.

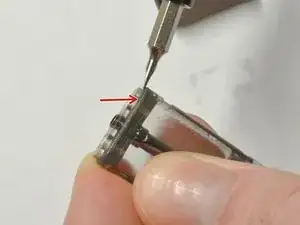

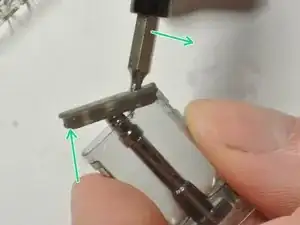

  4. P2HjMSkFEAoQIZjw
    P2HjMSkFEAoQIZjw
    nruDFCckKGd4YqjB
    ikdRgtaadoyfny6e

    • Go in between the clear plastic and the silicone/rubber with the flathead and pry upwards, it's clipped on to the stem in the middle but it shouldn't be on with much force.

    • Insert the flathed into one of the holes of the rubber and bend away from the pod, and the rubber seal will pop off, there should be no resistance.

  5. slutPGnuYDQq2Nw1
    slutPGnuYDQq2Nw1
    GiKqoSlRF5ZPR4jX

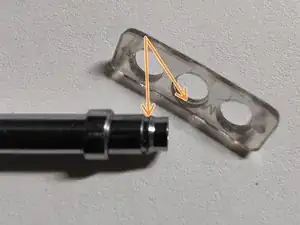

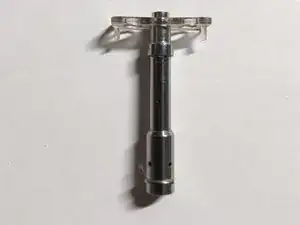

    • The transparent plastic clips over the stem, other parts removed for clarity

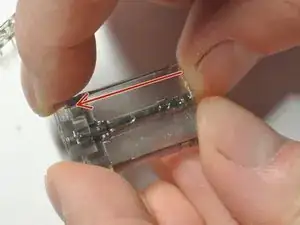

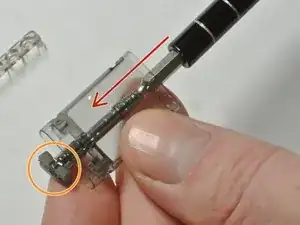

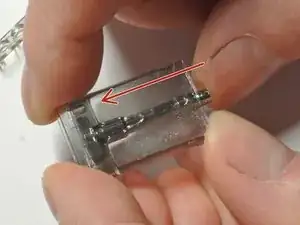

  6. hWGlTb2rNnTuCmmB
    hWGlTb2rNnTuCmmB
    HaQQg5QjhrFBBLT2
    uundbQSoEgf4G1Mm

    • Push on the stem from the top of the pod towards the bottom, when it releases use something to push the stem further, from the top of the pod.

    • Do not pull on the rubber part that come out of the bottom (orange), this is the coil and has hairline wires attached between the rubber and the coil.

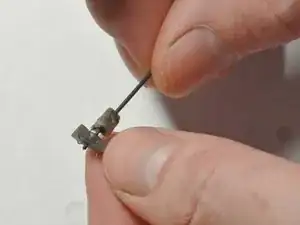

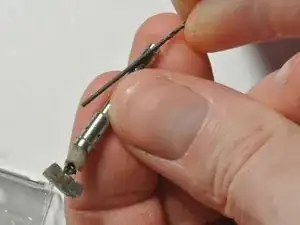

  7. dHJNQkSdnV6vhQly
    dHJNQkSdnV6vhQly
    KBGl1VS2kYJQx2KT
    ojTkKZVpH31eWYRg

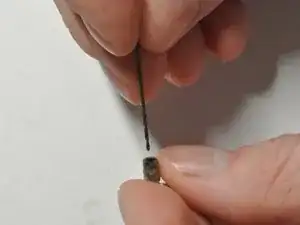

    • Use the back of a drillbit, or something similar, around 1-2mm dia. to push out the coil from the top of the stem.

    • Try to push it out by scraping the edge of the stem until you reach the top edge of the coil. Pushing in the center can cause damage to the coil itself.

    • Use a 1mm drillbit to de-clog the center bore of the coil, very carefully.

    • Sensitive parts, be very careful.

  8. Xe4o5ceWJePndjEV

    • Here are the parts laid to bare
