Acer Extensa 4420 RAM Replacement

Geschrieben von: TheMasterG
  • Kommentare: 0
Acer Extensa 4420 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. 1LImnQNr2CY6S2Bx
    1LImnQNr2CY6S2Bx
    QwIvxPSUHYxqTZA6

    • First, make sure that the battery lock is turned off.

    • The battery lock makes it so the battery doesn't accidentally fall out of your computer while it is running.

  2. YUCuGcsf5EF5DsI2
    YUCuGcsf5EF5DsI2
    mWAtEy5dn4KjRWCt
    DF2YH5HHrohQBrIx

    • Then, slide the other battery lock while pulling the battery out.

  3. fmDRXQ6F4cQtgnIY

    • Unscrew all five screws on the back panel with a Phillips #00 screwdriver

    • The screws will stay in the back panel, so when you remove it, you don't have to worry about organizing the screws.

  4. SuW5onLUxInyyNpK
    SuW5onLUxInyyNpK
    ZvQT6Xr2xRthMnUW
    BejrkXNLGIZxQroE

    • Take a spudger and start to pry open the back panel. Finish prying it open with your hands.

    • Be extra careful and try not to break any clips in this process.

  5. B6bxIHQVZDJcwRSP
    B6bxIHQVZDJcwRSP
    CicFqAwsNalmjqgc
    hVlYPHHPHLOc1cZc

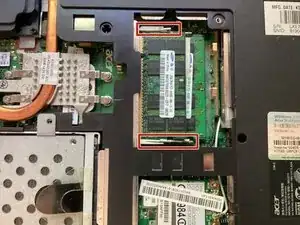

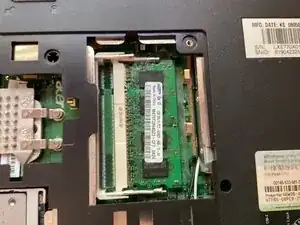

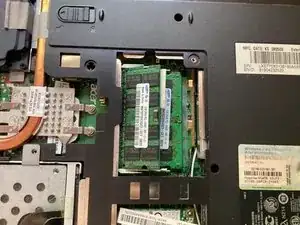

    • Push the clips in red towards the outside. Doing so will release the RAM. Pull the RAM out.

    • Do this for both RAM modules

Abschluss

To reassemble your device, follow these instructions in reverse order.
