Apple Wireless Keyboard Hauptplatine ersetzen

Geschrieben von: Nicola
  • Kommentare: 10
Apple Wireless Keyboard Hauptplatine ersetzen

Schwierigkeitsgrad

Mittel

Schritte

6

Zeitaufwand

5 - 20 Minuten

Einleitung

Du brauchst einen Spudger aus Metall und einen Schraubendreher.

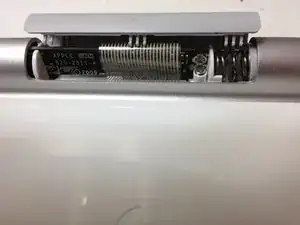

  1. FVSuZSD6nyHA14ov
    FVSuZSD6nyHA14ov
    TKwA3JoBNVkXCD3s

    • Führe den Spudger aus Metall ein, um die Kunststoffteile unter der Tastatur zu öffnen.

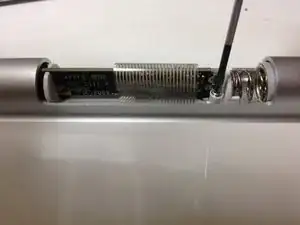

  2. 4j6UlvLVTJqbZJIu

    • Entferne die Schraube

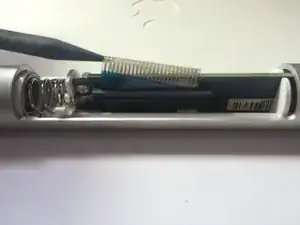

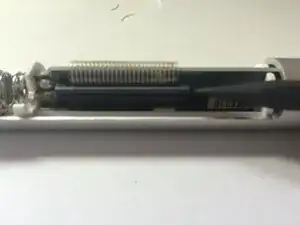

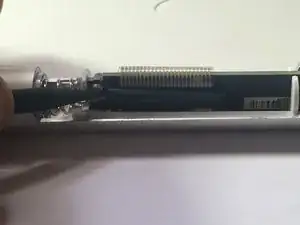

  3. QKNkeWFpAItcpsIs
    QKNkeWFpAItcpsIs
    ZfLFBjCtxPRkpCG4
    GiFSk3LkIZ4CjARw

    • Ziehe den Verschluss nach oben und diskonnektiere die Verbindungskabel.

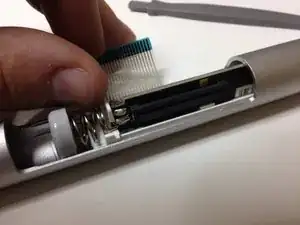

  4. hXLlaAQCgDkkSVPN

    • Halte das Verbindungskabel und drücke die Hauptplatine aus ihrer Position.

    On some recent version of the keyboard, there's a plastic pin under the white logic board plastic holder, keeping the whole thing in position in the aluminium tube.

    You may have to pull slightly upward while pushing the logic board out of the tube to disengage the plastic pin.

    Kuf -

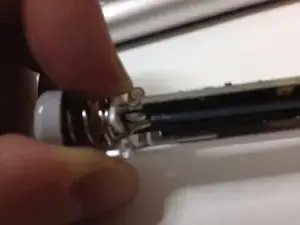

  5. V3uYTXwFGGBHZDrE

    • Löse den Verschluss der Hauptplatine.

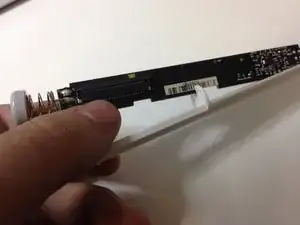

  6. GMUAYGSCgdwNMFjB

    • Entferne die Hauptplatine aus ihrer Fassung.

Abschluss

Um dein Gerät wieder zusammenzusetzen, befolge diese Schritte in der umgekehrten Reihenfolge.

Tinte & Feder

Nicola

Mitglied seit: 14/11/13

638 Reputation

9 Kommentare

Hi, anyone know where its possible to buy this logic board? My bluetooth chip is apparently broken

steve -

Which model of keyboard is this, because my A1255 doesn't disassemble like this - the battery terminal is solidly restrained inside the tube by means of a metal expansion ring. Doesn't seem user repairable :(

gordon jackson -

My power button was stuck. The shell was dented. This was an easier way to access and remove the button so I was able to file the inside of the tube smooth so the button would move freely.

Tony -

I have disassembled my keyboard as shown above, but now I need a replacement Wireless Keyboard Logic Board. I have not been able to find one. Any suggestions?

Martin Rubio -

Very nice! in my case the flat cable was not properly connecting. I only found out when i opened the cap to the logic board and saw the cable sitting slanted in its connector. Put it back straight and now it works again. Cheers!!

mollymol -

Great, now my Keyboard work thanks a lot!!!!!!!!

Maurizio -

My keyboard empties a fully loaded set of batteries in 1 day, anybody had an idea wat it could be?

Wesley Looy -

I bought used keyboard. It empties a set of batteries in less then a day. Plus it looses connections. Any ideas what this is?

koncan -

Hello! My keyboard has some keys that stopped working: delete, return, r-shift, caps lock, r-option, tab. The rest of the keys work fine. Any suggestions?

Mariano Belgrano -
