Asus ROG G751JL-BB17T29 Top Rear Panel

Geschrieben von: Kristofer Cesaroni
  • Kommentare: 0
Asus ROG G751JL-BB17T29 Top Rear Panel

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Sekunden

Einleitung

Prerequisite guide for the removal of the Top Rear Panel.

  1. pIkW4idRCN1xKGIy
    pIkW4idRCN1xKGIy
    f1NDyZLun1J5lxcc

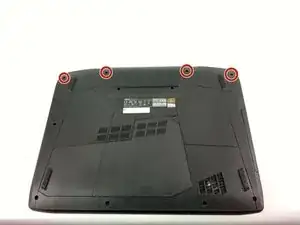

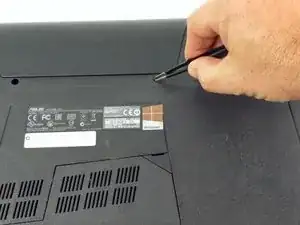

    • Remove the four rubber stoppers at the hinge edge of the laptop.

  2. XNVTQgFowGQay3Bh
    XNVTQgFowGQay3Bh
    N1BAn2wXkIFf3OJ3

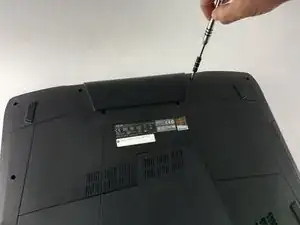

    • Remove the four 8.5 mm Phillips #1 screws at the hinge edge of the laptop.

  3. 165XPcRcVFaikwpl
    165XPcRcVFaikwpl
    HtjBHRAUouXAACWf

    • The speakers are located on the top facing side of the computer, next to where the screen connects to the base.

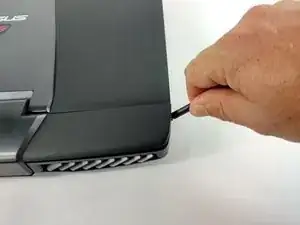

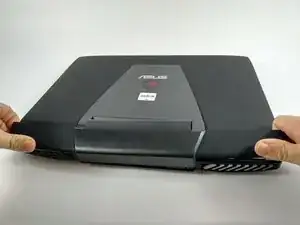

    • Using a nylon spudger, carefully pry the top back panel off to reveal the speakers.

    • While removing the top back panel, be careful not to break the four pin connector located underneath.

  4. 6EGlATtUDoH4OevO
    6EGlATtUDoH4OevO
    5ejoeBSOKhPoFsCC

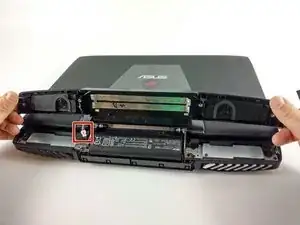

    • Disconnect the four-pin connector and remove the top back panel from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
