Dell Latitude E6410 RAM Replacement

Geschrieben von: Stephen Tate
  • Kommentare: 0
Dell Latitude E6410 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will walk you through the process of replacing your RAM.

  1. wysgCcOT5RpiYU5B

    • Unplug power cord and place computer upside down on your desk.

  2. HT2N6QVrWWLMJxGx
    HT2N6QVrWWLMJxGx
    4blXcNEPBKW6M1Gu

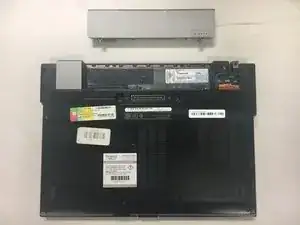

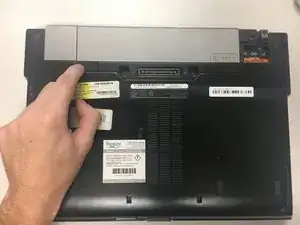

    • Remove battery by sliding the locks inward and pushing the battery out.

  3. BTY3GeUu3Ixj6rvM

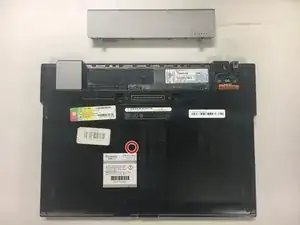

    • Remove the 5mm screw in the middle of the back cover.

  4. KDDZ4UOeuePBBASI

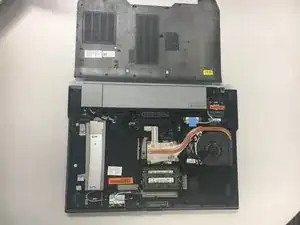

    • Remove the bottom cover by sliding it downwards.

  5. QP2NNDeHHjH5QHMu
    QP2NNDeHHjH5QHMu
    fnpDwQJdtUaBcpCx

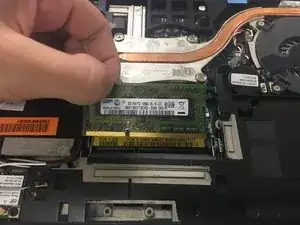

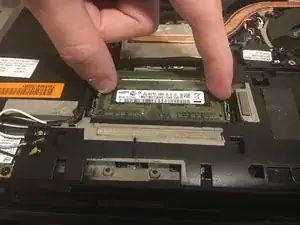

    • Remove first RAM card by pushing the attached clips outward.

    • Pull the RAM card out.

    • Repeat this procedure for the second RAM card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
