HP 17-ca0000 Series Battery Replacement

Geschrieben von: Mark125
  • Kommentare: 0
HP 17-ca0000 Series Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. 3Tab2mFlWi6H4HLx

    • Pull off rubber pads to expose screws.

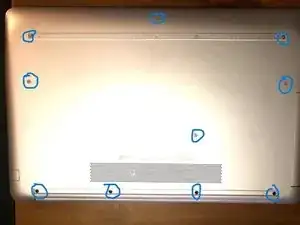

  2. guyP2ivFCDwiFfxc

    • Using a phillips sccrew driver, remove the ten scews holding on bottom cover.

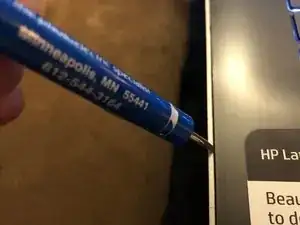

  3. 6cgrlQ4rFhQNStba

    • Using a screw driver seperate the back cover from the keyboard/computer.

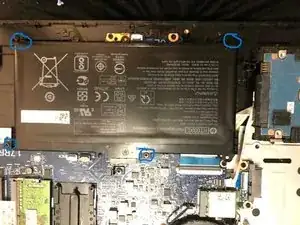

  4. IopWjciIqJ2yKgPD

    • Using phillips screw driver, remove the four screws and lift out battery.

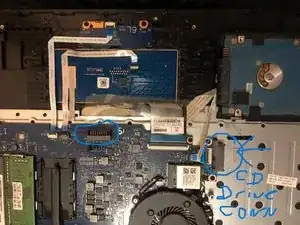

  5. PfCKOVvWvCVQfleG

    • Install new battery, Screw it in. When reassembling back cover, hold CD drive out about 3/4". After cover is in place, push CD drive into place,

Abschluss

To reassemble your device, follow these instructions in reverse order.
