HP Pavilion ze5000 Primary Fan Replacement

Geschrieben von: Eric Beaudry
  • Kommentare: 0
HP Pavilion ze5000 Primary Fan Replacement

Schwierigkeitsgrad

Difficult

Schritte

24

Zeitaufwand

30 Minuten

Einleitung

This guide will explain how to replace the primary fans of the device. There is another fan located in the northern section of the interior of the device that this repair guide will not cover. This guide deals with the more involved sections of the device.

  1. gVTvY6a3NAstuOxS

    • Push up on the arrow-shaped switch.

  2. cvWee6gfdxbWxDJr
    cvWee6gfdxbWxDJr
    MlYQJkGeKnN65Hdi

    • While still holding the switch up, remove the battery.

  3. K1NcVhQNBUyTVfg4
    K1NcVhQNBUyTVfg4
    iUvnMQLplJIFRi3G
    usAcVENk6Hs2iVu6

    • Remove the two 5mm Phillips #0 screws from the hinges

  4. LKXIbnWAoqudT6cv
    LKXIbnWAoqudT6cv
    Y5vVHqcv6PZK6cQQ

    • Open the device as if you were going to use the device. Using Tweezers, pry the hinges from underneath the screen

    • Not much force is needed to pull the hinges off once the tweezers are properly positioned

  5. VkleSZC1s2ACW4IU
    VkleSZC1s2ACW4IU
    w2FF6lpWxKkReoM5

    • Remove the wire connection by gently pulling on the fuse and connection itself.

    • Do not pull on the wires, as this can remove the wires from the connection, destroying the fuse.

  6. SHZrYPcDRFQJiaEY
    SHZrYPcDRFQJiaEY
    iVN4itCnRvrX3CJi
    nDbgLG5LN1CsFcxp

    • Remove the four 4.0 mm Phillips #0 connecting the keyboard to the frame

  7. LIIh6b1hJyAExBXH
    LIIh6b1hJyAExBXH
    coG22FiGogUyeAfX

    • Gently lift the keyboard up from the frame so that you can see the ribbon still connected.

  8. aG5dlmgSu6ILkbN2
    aG5dlmgSu6ILkbN2
    lGmFe3AZgEPRuSmK
    CenyQ5TqGMUwREMV

    • Remove the ribbon by gently pulling up the ends of the white receiver it is inserted in to.

    • You may need to use tweezers for this part.

    • During reassembly, when inserting the ribbon, you will hear a quiet, clicking sound when pushing down on the ends of the receiver. Hearing this ensures the ribbon is in place.

  9. PZfEUYkUVUvrpVi1

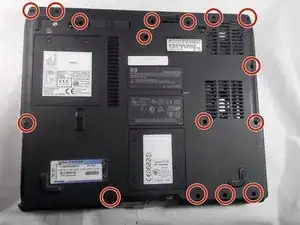

    • Remove sixteen 5.0 mm Phillips #1 screws from the underside of the device

  10. c5lfZRfSHBPuO4cU

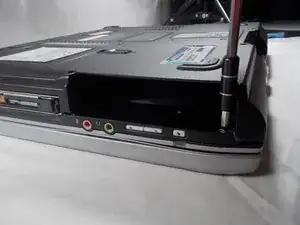

    • Remove the one 5.0 mm Phillips #1 screw underneath the battery home

  11. nLHOjIBhCdA5tsRa
    nLHOjIBhCdA5tsRa
    rPW4RLZGs36gTrD5
    tJdcJXSGSRksFAFJ

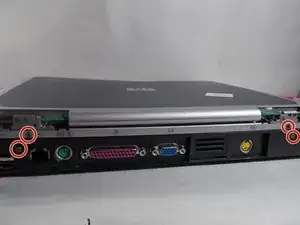

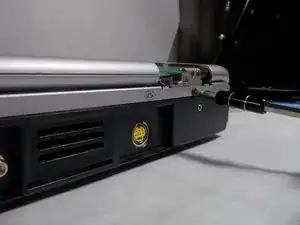

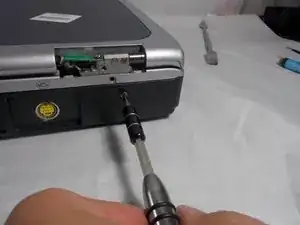

    • Remove the additional four 5.0 mm Phillips #1 screws from the hinge of the device

  12. 5QWuhgvoLWDS4BXB
    5QWuhgvoLWDS4BXB
    yvCnbIJVtYBcx3AJ

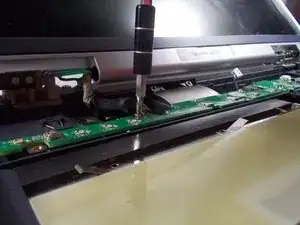

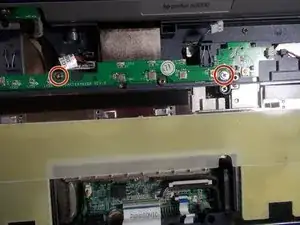

    • Remove the two 4.0 mm Phillips #0 screws attached to the cicuit board above the keyboard

  13. LAKFBygUxHXG26uW

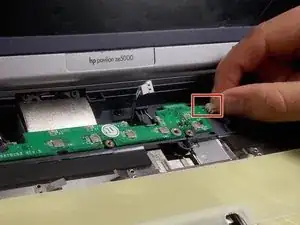

    • Gently remove the disconnection to the right of the circuit board

  14. QcA2V2CqNCyRLnZE
    QcA2V2CqNCyRLnZE
    YjcIKuogYCIvHt1d

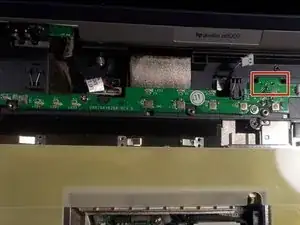

    • Take the circuit board off by pulling up on the right side of the circuit board

    • The board is plugged in to the device at this location still, but the outlet is hidden.

    • Pulling on the right side can snap the circuit board, so it is essential you pull on this side only

  15. M3c3OQRTBUUkPkno
    M3c3OQRTBUUkPkno
    hGjs1HiUUcB3tuZl

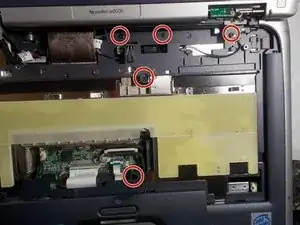

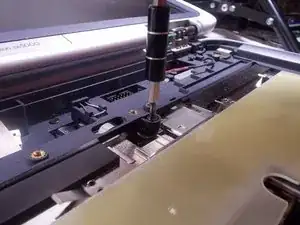

    • Remove the five 5.0 mm Phillips #1 screws from underneath the keyboard

  16. 3WjHmMVBa1VyVQfY
    3WjHmMVBa1VyVQfY
    caoCWfJgHU5K3itq
    vghEeQEbk1lJSwVv

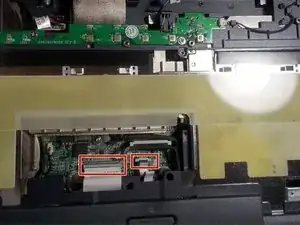

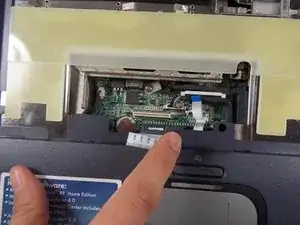

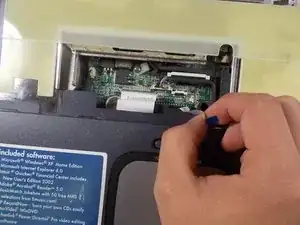

    • Disconnect the ribbons from the circuit board underneath the keyboard housing unit

  17. 15EEVdm4UUCwYMVl
    15EEVdm4UUCwYMVl
    2p6kFscMjPULWAhu
    DhwypqqwbOXTDORY

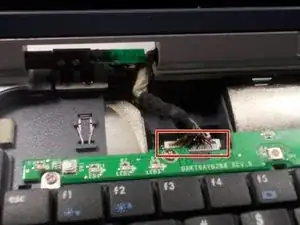

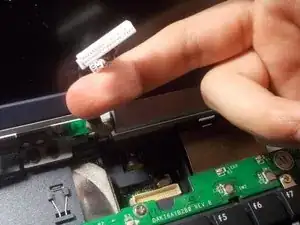

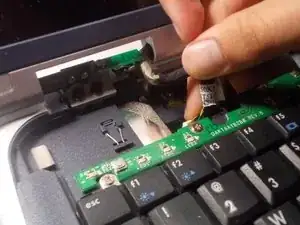

    • Remove the connection beneath the left hinge of the device

  18. TO3YHQHb53mAv5IE
    TO3YHQHb53mAv5IE
    oQoxVDVDlFUHKCcQ

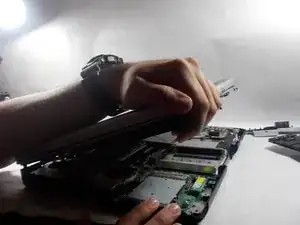

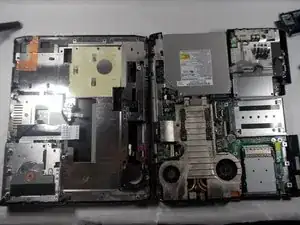

    • Pry the device apart to expose the inside of the device

    • This should be relatively easy since all connections and screws are removed. However, a spudger can be used if you are having difficulties.

  19. 23jonZTfDjdHLSHk
    23jonZTfDjdHLSHk
    IHorVyb5w6pYmQNx
    iJWCRo3llQABTN62

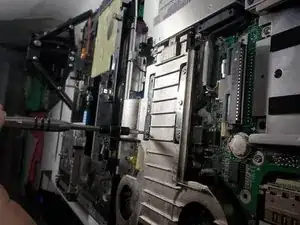

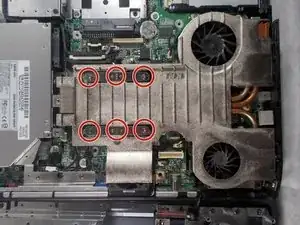

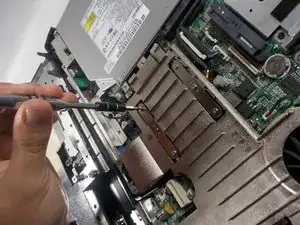

    • Remove the latches securing the fan housing unit by unscrewing the six 4.0 mm Phillips #0 screws

  20. ejOPAuVgyY3qtpZT

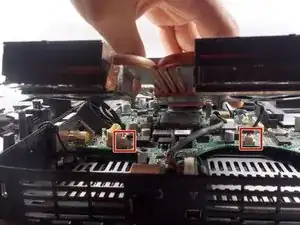

    • Lift the housing unit a few inches from the device to expose the two small connections.

  21. wFpDQIBOX4GcYNl5
    wFpDQIBOX4GcYNl5
    S2kpuX3TUp1JCMWv

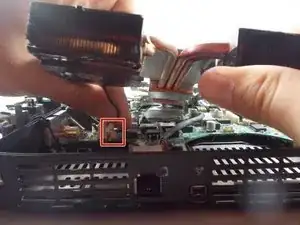

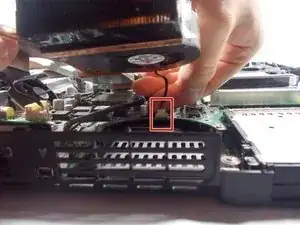

    • Remove the two small connections directly above and below the fan housing unit

  22. qyfGYKQvN1LDmKyS
    qyfGYKQvN1LDmKyS
    ExBWbS6XKYZpDPjn

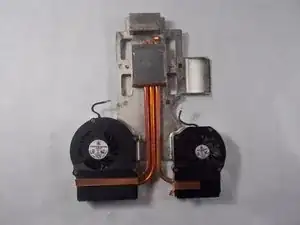

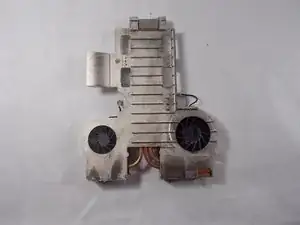

    • Remove the fan housing unit and flip it over

  23. PtcjZCVmoCbbWKpB
    PtcjZCVmoCbbWKpB
    MBsuieKtmoGCXgYu
    HBMv3xODu1fqgF6Y

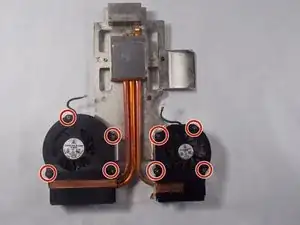

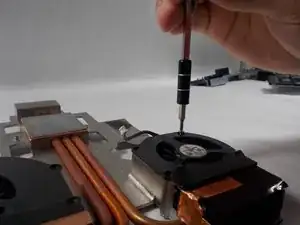

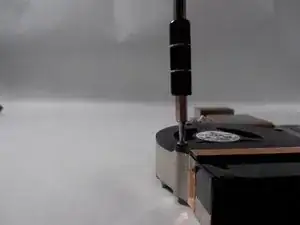

    • Remove the eight 3.5 mm Phillips #00 screws from the fan housing unit

  24. wwffjqLjjWLI265J
    wwffjqLjjWLI265J
    QRNl5YBYXCtCobK2

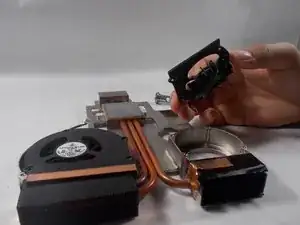

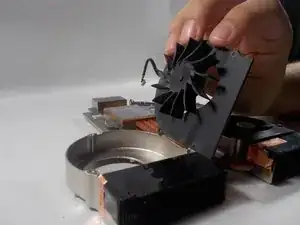

    • Remove both or whichever fan needs to be replaced

    • There should be bronze electric tape on the fan housing unit. Do not hesitate to tear the tape in order to open the housing unit

Abschluss

To reassemble your device, follow these instructions in reverse order.
