B&O Beoplay EX Teardown

Geschrieben von: zchenmd
Veröffentlicht: 03/06/23
  • Kommentare: 12

B&O Beoplay EX Teardown

Veröffentlicht: 03/06/23

Teardown

Einleitung

Einen Blick in die High-End true wireless Kopfhörer.

  1. njcsxIh4shivISct
    njcsxIh4shivISct
    3sv34AnHx2g6mJYE
    6PVLhfS6rNviHT3x

    • In dieser Kammer befindet sich eine Lautsprechereinheit und eine Platine.

    • Die neu designte 9,2mm Lautsprechereinheit wird von einem transparenten Cover geschützt.

    Was it difficult opening the anterior chamber?

    Chrispy P -

  2. CWRmKq1Z6NxeFhOb
    CWRmKq1Z6NxeFhOb
    tjnbQbTssRDKUycT

    • Geschafft!

  3. ttG2ccvEANXKNTrW
    ttG2ccvEANXKNTrW
    TdX1oS11DWhAIEmC

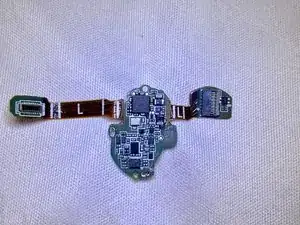

    • Die Platine kann einfach entfernt werden.

  4. 2SvpWOf6XFVStsOP
    2SvpWOf6XFVStsOP
    lDKZmT6DCf1SKbN4

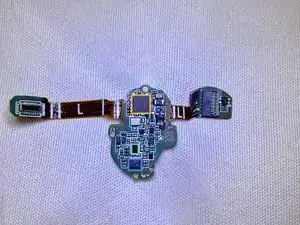

    • ROT: Emerald 4.1 BS200100

    • Orange: 3460 3 K AWBX

    • Himmelblau: CTD L2B

    • Grün: 20401 ZOORD

  5. ZFQRmSEbqxfjuZaN
    ZFQRmSEbqxfjuZaN
    RBxVEuTvbxsoegYX

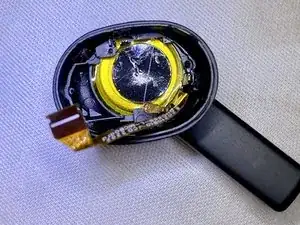

    • Der Akku war in einer vollkommen anderen Ecke zu finden als die Platine.

    • Wenn du den Akku wechseln willst, musst du die Kammer dahinter öffnen.

    Can you see what the battery type / brand is ??

    DH Partner -

    I did not take apart it. However, from another source, I can inform you that the battery is LIR ZJ1254H 3.85V, which was made by Zijing technology. I will update a picture.

    zchenmd -

    Is opening the cavity behind the battery difficult? I already have a set of ifixit tools.

    Chrispy P -

    Is the battery glued into that yellow stuff? How to replace it?

    Alexander Lykke -

  6. odZSpqODGQrmobCd
    odZSpqODGQrmobCd
    A35qT5VTs3HuCDKX
    CDcwwFdaFFJQkKGa

    • Geschafft!

    How do you take the case apart?

    Si Cleaver -

    Used a thin metal pry.

    zchenmd -

  7. VdG2sJrMpBDGhksQ
    VdG2sJrMpBDGhksQ
    VPZRNhZnG5Oyjysm

    • Geschafft!

Tinte & Feder

zchenmd

Mitglied seit: 10/03/21

268 Reputation

5 Kommentare

I have a dead pair of Beoplay E6 headphones (similar to these) and would be curious to open mine up to. I'm new to all of this, what type of tools do I need to open the compartments of the headphones? Thank You

SamJ7 -

Nothing special, warm it and twist it until open by your hands. I know it’s hard, but be careful not to damage the parts.

zchenmd -

Where to get the batteries for the buds and the case if one might try this?

Alexander Lykke -

I also have dead Beoplay E6. Can you provide a diagram for the 3 button inline unit as the headphone will not turn on (no lights) although 5v getting to the inline unit??

Clive Holden -

I also have a dead Beoplay E6 and would like to attempt to replace the battery. I am new in this area but is DIY person. That's why I don't want to give up on this very BT earpiece just yet. Has any of you been successful in doing so? If yes, please share some pictures and tips. If you also know the battery model, it will be a big help for me to buy it ahead of time. Thanks! - OLIVER

OLIVER JOHN TIU -
