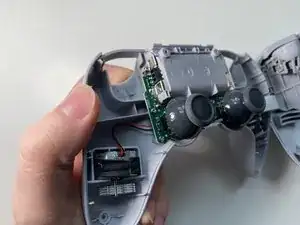

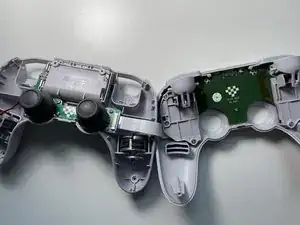

Opening Case
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background and Identification:

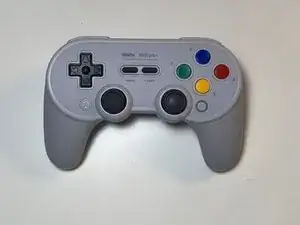

The SN30 Pro+ is a wireless game controller designed by 8BitDo. Released 7 August 2019. Its design is similar to the SN30 Pro, but instead of a dog bone shape, there is the addition of grips to each side. With two joysticks, two analog triggers, and primary D-pad, this controller’s layout is similar to Dualshock. The controllers is compatible with several devices either via Bluetooth or USB-C cable.
The SN30 Pro+ is available is three different editions. Black Edition has a black body and black ABXY buttons. G Classic Edition has a sandstone body and burgundy ABXY. SN Edition has a gray body with lavender buttons.
Software:
8BitDo Ultimate Software
This software allows you to customize button mapping, adjust stick & trigger sensitivity, vibration control and create macros with any button combination. SN 30 Pro+ needs a specific version of the 8BitDo Ultimate Software. It is available on 8BitDo website.
Specifications:
Compatibility:
- Nintendo Switch,
- Windows,
- MacOS,
- Steam,
- Android
- Raspberry Pi
Power:
- Removable 1000mAh Li-on battery
- USB-C connector (recharge)
- 20 play hours with 4 hour charging time
Connectivity:
- Bluetooth 4.0
- USB-C
Features:

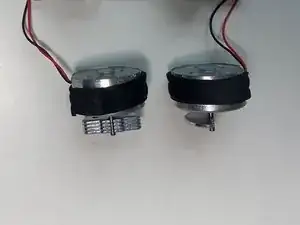

- Modifiable vibration
- 6-axis motion controls
- Adjustable hair triggers
- Customizable turbo function
Size:
- 153.6 × 102.7 × 64.3mm
- 222g
Box Contents:
- SN30 Pro+ Bluetooth gamepad
- USB-C cable
- Instruction manual
Source: 8BitDo SN30 Pro+ Tech Specs
Additional Information:
For additional help in identifying and repairing the device, please reference the following sources:
