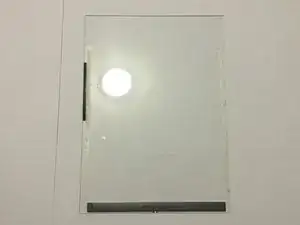

Glass Scanner Bed
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background and Identification
The Canon CanoScan N670U is a scanner meant to be simple yet efficient. The scanner is designed to be compact and easy to set up, using only a single USB cable as its power source and three buttons to scan, copy, and e-mail respectively. The way to identify this device among its N676U and N1240U counterparts is its dark violet top. The Canon CanoScan N670U hasn't been updated to operate on some of the more modern operating systems today and is considered to be outdated due to a lack of support for updating its drivers. However, the scanner remains as a budget-friendly and useful flatbed scanner for users of older operating systems such as Windows XP.
Product Specifications
Type: Flatbed scanner

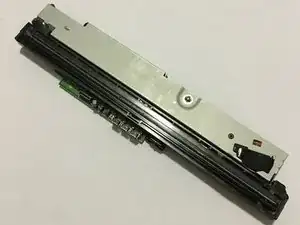

Scanner element: CIS
Light source: 3-color LED
Optical resolution: 600 x 1200 dpi
Selectable resolution: 25-9600 dpi
Scanning bit depth:
- Color: 16 bit input / 8 bit output for each color
- Grayscale: 16 bit input / 8 bit output
Scanning speed:
- Color: 16 msec / line (600 dpi)
- Grayscale : 5.3 msec / line (600 dpi)
- Black and white: 5.3 msec / line (600 dpi)
Preview speed: Apx. 15 sec
Interface: USB 1.1
Maximum document size: A4 / Letter: 216 x 297 mm (8.5 x 11.7 in)
Scanner buttons: Scan, copy, and e-mail
Operation range:
- Temperature: 5o - 35o C (41o to 95o F)
- Humidity: 10% - 90% RH (relative humidity)
Power supply: USB port
Power consumption:
- In-operation: 2.5 watts maximum
- Standby: 1.25 watts
Maximum exterior dimensions: 256 x 383 x 34 mm (10.1 x 10.5 x 1.3 in)
Weight: Apx 1.5 kg (3.3 lbs)
Tools
Metal Spudger
iFixit Tech Knife
Tweezers
Troubleshooting
To identify and resolve common issues with this scanner, please refer to this troubleshooting page.
