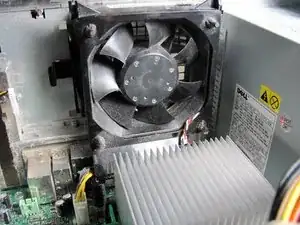

Fan
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Identification and Background
The Dell Dimension 4600, introduced in May 2003, was a mid-range desktop aimed at families, students and casual gamers. Prices ranged from $699 to $2000 depending upon user configuration. This was one of Dell's most popular models due to it's high range of customization, allowing it to fit any user's needs.

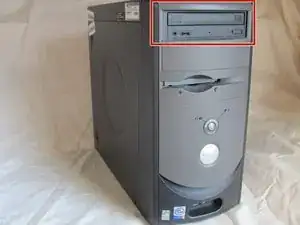

This model is identified by the number on the front of the case just below the power button, which should read 4600. Dell has made several PC's with a similar look, and it is important to know which machine you have before you start repairing any components.
Troubleshooting
Diagnose any issues you may be having with your Dimension 4600 using our Dell Dimension 4600 Troubleshooting Guide
Upgrades
There are a number of components in the Dell Dimension 4600 that can be cost effectively upgraded.

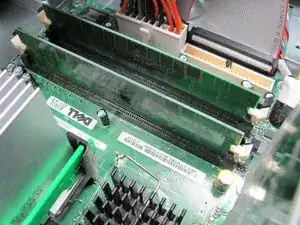

- Memory: Dell Dimension 4600s originally shipped with either 128, 256, 512 MB, or 1 GB of RAM. If your Dell Dimension is still running with only the stock RAM, upgrading will provide a dramatic performance boost. Upgrading to the maximum of 2 GB can be done very easily.
- Hard Drive: An 80 GB IDE hard drive came standard with the Dell Dimension 4600. You can upgrade to any size IDE hard drive that you wish to use.
Additional Information
Technical Specs
Processor
- Intel Pentium 4
- Hyper-Threading Technology
Mainboard
- Chipset type: Intel 865G
- Data bus speed: 533.0 MHz
Memory
- PC2700 or PC3200 DDR SDRAM
- 128-, 256-, 512-MB, 1-GB
Storage
- 80.0 GB - Standard = DMA/ATA-100 - 7200RPM
Optical Storage
- DVD-ROM - IDE
- 48x (CD) / 16x (DVD)
- DVD-ROM +
- Read 48x
- Write 48x
- Rewrite 32x
Graphics Controller
- Integrated Intel Extreme Graphics 2
Audio Output
- Integrated 5.1 channel surround
- AC '97 Standard Compliant
Networking
- Ethernet adapter
Power
- AC 120/230 V (50/60 Hz)
- 250.0 Watt
Operating System
- Windows XP Home Edition
