Background Information

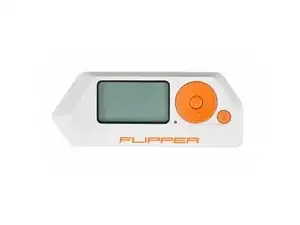

Flipper Zero is a versatile multi-tool device designed for hacking, debugging, and experimenting with various electronic gadgets and systems. It is an open-source, programmable, and modular device that can perform a wide range of functions, such as sniffing, jamming, decoding, and emulating different wireless protocols and signals.

The Flipper Zero features a 160x80 pixel monochrome display, a three-axis accelerometer, an infrared transceiver, a temperature sensor, a vibration motor, and a built-in battery that can last for up to 2 weeks on a single charge. It also comes with a variety of interchangeable modules that can be attached to its expansion ports to extend its capabilities.

The Flipper Zero is designed to be user-friendly, with a simple and intuitive interface that allows users to perform a variety of tasks without requiring any programming knowledge. However, for more advanced users, the Flipper Zero also supports custom firmware and programming using popular languages such as Python and C++. The device also features a community-driven platform that encourages collaboration and sharing of knowledge and resources among its users.

Tech Specs

Overview

  • OS: FreeRTOS
  • MCU: STMicroelectronics STM32WB55RG
  • SRAM: 256 KB
  • Flash Memory: 1024 KB
  • Storage: Up to 128GB MicroSDHC (16GB or 32GB recommended)

Display

  • Type: Monochrome LCD
  • Resolution: 128x64 px
  • Controller: ST7565R
  • Interface: SPI
  • Diagonal Size: 1.4“

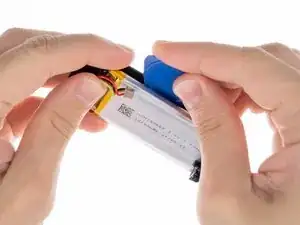

Battery

  • Technology: LiPo
  • Capacity: 2000 mAh

Connectivity

  • RFID:
    • Frequency: 125 kHz
    • Modulation: AM, PSK, FSK
    • Supported cards: EM400x, EM410x, EM420x, HIDProx, Indala
  • Bluetooth: LE 5.0

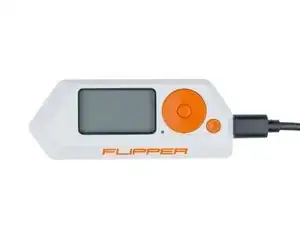

  • USB: 1x USB 2.0 port, type C
  • NFC:
    • Frequency: 13.56 MHz
    • Supported cards: ISO-14443A/B, FeliCa™, NFC Forum protocols, NXP Mifare® Classic®, Ultralight®, DESFire® etc.
  • Sub-1 GHz Radio:
    • Chip: TI CC1101
    • TX Power: 0 dBm max
    • Frequency bands (depends on region): 315 MHz, 433 MHz, 868 MHz, 915 MHz
  • Infrared:
    • TX/RX range: 800-950 nm
    • TX power: 300 mW
  • GPIO Pins:
    • 3.3 CMOS Level
    • Input 5V tolerant
    • Up to 20 mA per digital pin
  • iButton/1-Wire:
    • Operation modes: Reader/Writer/Emulator
    • Supported protocols: Dallas DS1990A, CYFRAL

Physical

  • Size: 100 x 40 x 25 mm
  • Weight: 102 grams
  • Body materials: PC, ABS, PMMA
  • Operating temperature: 0 ~ 40 °C
