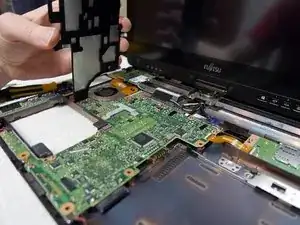

Fujitsu T902 Repair

LIFEBOOK T902

Operating System

• Windows 8
• Windows 8 Pro
• Windows® 7 Professional 32-bit
• Windows® 7 Professional 64-bit

Chipset

• Intel® QM77

Processor

• Intel® Core™ i5-3320M processor, 3 MB, 2.6 GHz, up to 3.3 GHz
• Intel® Core™ i5-3340M processor, 3 MB, 2.7 GHz, up to 3.4 GHz
• Intel® Core™ i7-3540M processor, 4 MB, 3.0 GHz, up to 3.7 GHz

Intel® Core™ vPro™ Processor - Best Platform for Businesses of all sizes

Intel® Core™ Processor with Intel® Small Business Advantage - Smart Platform for Unmanaged Small Business

Supported Capacity RAM (max.)

• 16 GB, 2 Memory slot(s) DIMM (DDR3)DDR3 - 1,600 MHz

Hard Disk Drive

• SATA, 5,400 rpm, 320 GB, 2.5-inch, S.M.A.R.T.
• FDE, 5,400 rpm, 320 GB, 2.5-inch, S.M.A.R.T.
• SATA, 7,200 rpm, 320 GB, 2.5-inch, S.M.A.R.T.
• SATA, 7,200 rpm, 500 GB, 2.5-inch, S.M.A.R.T.
• SSHD, 5,400 rpm, 500 GB / 8 GB SSD Cache, 2.5-inch, S.M.A.R.T.
• SSD SATA III, 128 GB, 2.5-inch, Opal TCG
• SSD SATA III, 128 GB, 2.5-inch
• SSD SATA III, 256 GB, 2.5-inch, Opal TCG
• SSD SATA III, 256 GB, 2.5-inch
• mSATA, 32 GB

Interfaces

• 1 x DC-in
• 1 x Audio: line-in / microphone
• 1 x Audio: line-out / headphone
• 2 (digital) x Internal microphones
• 2 (1 left side with Anytime USB Charge functionality) x USB 2.0 total
• 2 x USB 3.0 total
• 1 x VGA
• 1 x HDMI
• 1 x Ethernet (RJ-45)
• 1 x Docking connector for Port Replicator
• 1 x Kensington Lock support
• 1 x SmartCard slot
• 1 x SIM card slot ( usable only with 3G/UMTS, 4G/LTE )
• 1 x Memory card slots

Display

• 33.8 cm (13.3-inch) (HD+), Anti-glare touchscreen, 1,600 x 900 pixel, 500:1, 300 cd/m²
• IPS 65% sRGB color spectrum

Graphics (GPU)

• Intel® HD Graphics 4000 with 3rd generation Core i processors

Camera

• Optional: Built-in webcam, Full HD (2,073 megapixel) (Microsoft® Lync™)

Weight

• 1.89 kg - Incl. weight saver. Weight may vary depending on actual configuration.

Dimensions (W x D x H)

326 x 244 x 27.1 mm front / 31 mm back (without foot) mm

Runtime Battery

• Up to 10h 20m

Battery notes: Battery runtime information is based on worldwide acknowledged BAPCO Mobile Mark 2007 Benchmark (readers mode e.g. surfing the internet, writing E-mails, viewing documents) which provides results that enable direct product comparisons between manufacturers. It does not guarantee any specific battery runtime which actually can be lower and may vary depending on product model, configuration, application and power management settings. The battery capacity slightly decreases with every charging cycle and over the lifetime.

Audio Codec

• Realtek ALC269

Audio Features

• 2x digital array microphones
• 2x built-in speakers (stereo)

3G/4G (optional)

• Sierra Wireless Gobi 3000
• LTE Sierra Wireless MC7710

WLAN (optional)

• Intel® Centrino® 6205 802.11 a/b/g/n
• Intel® Centrino® Wireless-N2200 b/g/n

Antennas

• 2x dual band for WLAN
• 2x for UMTS/LTE
• 1x for Bluetooth (on Bluetooth module)

LAN

• Built-in 10/100/1,000 MBit/s Intel® 82579 LM
• Bluetooth (optional) Bluetooth 4.0

Modular Drive Options

• DVD Super Multi
• Blu-ray Disc™ Triple Writer
• Weight saver
• 2nd battery
• Additional SATA HDD (with caddy)

Special Features

• Bi-directional rotatable display
• Optional embedded 4G/LTE
• Modular bay (2nd HDD, 2nd battery, DVD/Blu-Ray drive)
• Pen and finger input
• Keyboard light
• Fingerprint sensor
• SmartCard reader

Warranty

2 years (depending on country)
