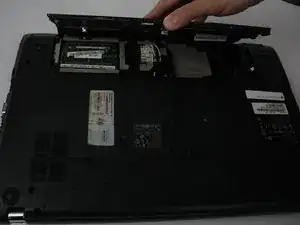

Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
If you are having difficulties with the Gateway NV53A24u, try referring to the troubleshooting page.
Background and Identification

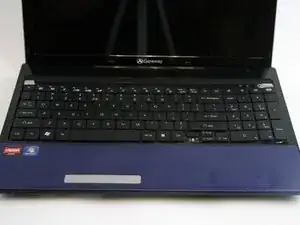

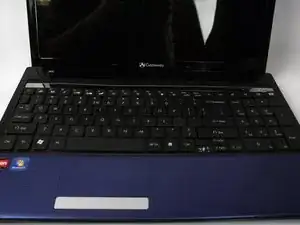

The Gateway NV53A24u is a 15.6 inch laptop released in 2010. It's powered by the AMD Athlon II X2 processor with a 64-bit dual-core CPU running at 2.1GHz. With 1MB L2 cache, a 1066MHz front side bus, and 4GB of DDR3 memory able to be upgraded to 8GB, it has plenty of power for multitasking.
The screen is a 15.6″ TFT-LCD high-definition widescreen display with a resolution of 1366×768. Driven by an AMD M880G Chipset with ATI Mobility RadeonTM HD 4250 graphics, its 256MB-1405 MB of shared graphics memory may slow down during graphically intense operations.
For storage you get a 320GB Serial ATA harddisk at 5400RPM, enough for most people's use. It comes with a DVD±RW/CD-RW optical drive with double-layer support, and a media reader slot that supports Secure Digital, MultiMediaCard, Memory Stick, Memory Stick PRO, and xD-Picture Card formats.
For internet connectivity, you get a standard RJ-45 port that connects to a 10/100/1000 Ethernet adapter, and a 802.11 b/g/n wireless Ethernet adapter for WiFi.
Other ports on this machine include 3 USB 2.0 ports, 1 VGA port, 1 HDMI port, 1 headphone, and 1 microphone.
And, with a 6-cell lithium ion battery pack, the machine is able to run for up to 3 hours and 42 minutes on unplugged power.
