Replacement Guides

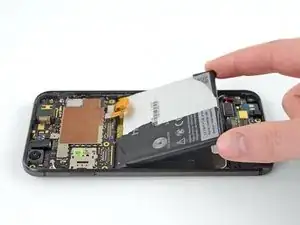

Battery

Battery

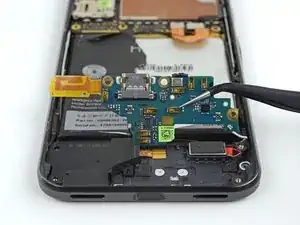

Daughterboard

Daughterboard

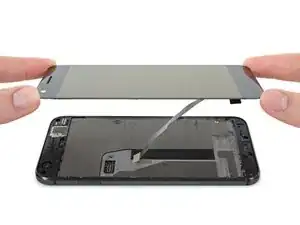

Display

Display
Display Adhesive

Display Adhesive

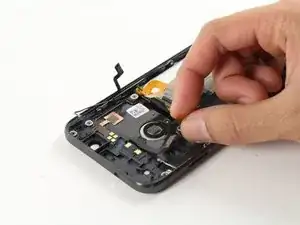

Fingerprint Scanner

Fingerprint Scanner

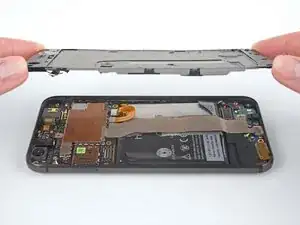

Midframe

Midframe

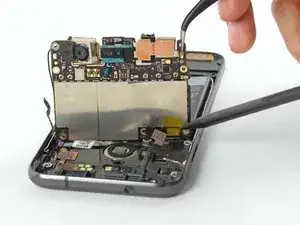

Motherboard

Motherboard

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Disclosure: The repairability score of was determined as part of a repairability assessment performed for Google's design and engineering teams. This paid service was performed objectively by iFixit, with no input from Google.

Troubleshooting

Diagnose any issues you may be having with your Google Pixel using our Google Pixel Troubleshooting Page.

Background and Identification

Announced on October 4, 2016 and released on October 20, 2016, the Google Pixel is Google's first true flagship phone. Google has previously co-developed the Nexus line of devices with other companies, but the Pixel is the first smart phone to be both fully designed and developed solely by Google.

The Pixel features a 5-inch 441 pixels per inch AMOLED display, but it is also available in an XL variant with a 5.5-inch 534 pixels per inch display. The rear mounted fingerprint sensor distinguishes the Pixel from most devices, as does the partial glass backing which allows for NFC capabilities.

There is an embossed "G" on the back of the device. The model number is G-2PW4100 in the US.

There was a known microphone issue with the device caused by a crack in the solder of the audio codec chipset on the motherboard, but Google has addressed the issue in devices manufactured after 02/2017.

The most often replaced Google Pixel parts include the battery, screen, and rear glass panel.

Technical Specifications

CPU: Qualcomm Snapdragon 821 (64 bit quad-core 2.15 GHz + 1.6 GHz)

Memory: 4GB LPDDR4 RAM

Storage: 32 GB or 128 GB

Display:

  • 5.0 Inch Display
  • FHD AMOLED at 441 ppi
  • 2.5D Corning Gorilla Glass

Cameras:

  • Main Camera: 12.3 megapixel, f/2.0 aperture, 1.55μm pixels, Phase detection autofocus + laser detection autofocus
  • Front Camera: 8 megapixel, f/2.4 aperture, 1.4 μm pixels, fixed focus

Ports and Connectivity

  • Wi-Fi 802.11 a/b/g/n/ac 2x2 MIMO
  • Bluetooth 4.2
  • NFC
  • GPS
  • Supports up to CAT 12 (600Mbps DL / 75Mbps UL) depending on carrier support
  • USB Type-C
  • USB 3.0
  • 3.5mm headset jack
  • Single Nano SIM

Battery: 2,770 mAh battery

Dimensions:

  • Size:142 x 68.6 x 5.08 mm (5.6 x 2.7 x 0.2 in)
