Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Wallpapers

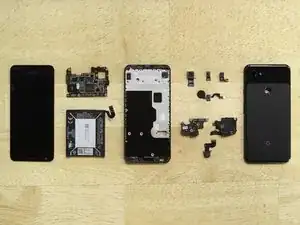

Check out our free Pixel 3a XL teardown wallpapers! Choose from iFixit or Creative Electron (X-ray) versions.

Background and Identification

Announced and released on May 7, 2019, the Pixel 3a XL is part of a budget line of Google’s third generation Pixel phones. It features the same camera as this generation’s flagships, but has a polycarbonate back, larger display bezels, and a lower-powered processor.

Technical Specifications

CPU: Qualcomm Snapdragon 670

Memory: 4 GB LPDDR4x RAM

Storage: 64 GB

Display:

  • 6.0 inches diagonal
  • FHD+ (2160 x 1080) OLED at 402 ppi

Cameras:

  • Main Camera: 12.2 megapixel, f/1.8 aperture, 1.4μm pixels, autofocus with dual pixel phase detection AF, OIS
  • Front Camera:
    • 8 megapixel, f/2.0 aperture, fixed focus

Ports and Connectivity:

  • Wi-Fi 2.4 GHz + 5 GHz 802.11 a/b/g/n/ac
  • Bluetooth 5.0 + LE
  • NFC
  • GPS + GLONASS
  • Supports up to CAT 11 (600 Mbps DL / 75 Mbps UL), 3xCA, DL, 4x2/2x2 MIMO
  • USB Type-C USB 2.0
  • Single Nano SIM or eSIM

Battery: 3,700 mAh battery

Dimensions:

  • Size: 160.1 x 76.1 x 8.2 mm (6.3 x 3.0 x 0.3 inches)
  • Weight: 167 g (5.9 oz)
