Google Pixel 4 Disassembly (Post-Battery Removal)
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Disclosure: The repairability score of was determined as part of a repairability assessment performed for Google's design and engineering teams. This paid service was performed objectively by iFixit, with no input from Google.
Technical Specifications
CPU: Qualcomm Snapdragon 855
Memory: 6 GB LPDDR4x
Storage: 64 GB or 128 GB
Display:
- 5.7 inches diagonal with rounded corners
- Flexible QHD+ OLED (2,280 x 1,080 resolution, 444 ppi)
- Smooth Display technology (dynamic refresh rate up to 90 Hz)
- Corning Gorilla Glass 5
- 19:9 aspect ratio

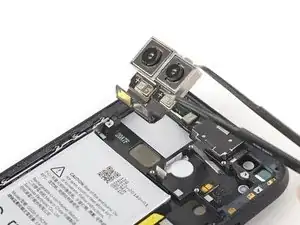

Cameras:
- Rear Cameras
- 16 MP ƒ/2.4 telephoto with phase detect AF and OIS
- 12.2 MP ƒ/1.7 wide-angle with dual-pixel phase detect AF and OIS
- Front Cameras
- 8 MP ƒ/2.0 wide-angle with fixed focus
- 2 NIR (Near Infrared) cameras for biometric authentication
Ports and Connectivity:
- Wi-Fi: 2.4 GHz + 5 GHz 802.11 a/b/g/n/ac 2x2 MIMO
- Bluetooth 5.0 + LE (HD codecs: AptX, AptX HD, LDAC)
- NFC
- GPS + GLONASS
- USB Type-C
- USB 3.1 Gen 1
- Single Nano SIM or eSIM
- Wireless charging
Battery: 2800 mAh
Dimensions:
- Size: 68.8 x 147.1 x 8.2 mm
- Weight: 162 g
Additional Information
Google: Pixel 4 / 4 XL spec sheet
Google: Pixel Repair Center
Wikipedia: Google Pixel 4
