Identification and Background
The Insignia NS-HDRAD Radio was released in 2014. This radio is a simple, portable, radio that provides clear quality audio and has a Radio Data System (RDS) that displays song and artist information. This device is a sleek, black radio with 8 silver buttons and an LCD display screen. The radio functions as a tabletop speaker as it includes an input jack that allows for the user to connect an external audio device, like a smart phone or MP3 player. This radio is distinguishable from other radios on the market as it does not have a handle or CD player and has a rectangular shape.

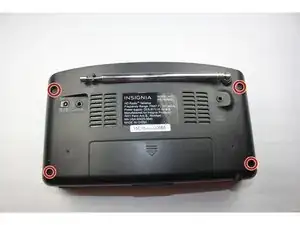

To identify this product, please flip the radio over and look for the black product sticker with the MODEL NO. is NS-HDRAD.
Troubleshooting
Track down problems encountered with your NS-HDRAD here.
Technical Parts
Case Components
- Front Panel
- Back Panel
- Battery Cover
- Antenna
Jacks/Ports
- Headphones
- Power
- Auxiliary Input
- Pigtail Antenna
Internal Components
- 2 Speakers
- 4 Circuit Boards
- LCD Screen
- Philips head screws
- Copper Wiring
- External Wire Connectors
Battery
- battery AA x 4
- charging DC 5.9V/1A
Dimension
- 2.17" x 8.27" x 4.53"
