LCD Screen
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
Troubleshoot various problems of the camcorder using the JVC GR-290U troubleshooting guide.
Identification and Background
The JVC GR-D290U was released in the United States on December 2006.
Major Features
Wipe/Fader Effects to create pro-style scene transitions.
Program AE with Special Effects to capture fast moving images one frame at a time for a vivd, stable slow-motion effect.
LED Light to brighten a subject in a dark place.
Backlight Compensation to brighten images that are darkened by backlight.
Data Battery for a detailed view of the battery status.
Live Slow records and plays back precious or hard-to-see moments at a slow speed.
Specifications
800x Digital Zoom + 25x Optical Zoom - 2.2 - 55 mm Lens Focal Length - Filter Diameter 27mm
2.2 - 55 mm Lens Focal Length - PAL Recording System
2.5 in. LCD - With Color Viewfinder -
Output Interfaces S-Video Composite (Video) Audio (RCA) FireWire / DV / i.Link USB
Included Accessories Software USB Cable A/V Cable Shoulder Strap 8 MB Memory Card AC Power Adapter Remote Control
Optical zoom: 25 x
Display Size: 2.5 inches
Optical Sensor Resolution: 800000.0 Pixels
optical Sensor Technology: CCD
Additional Information

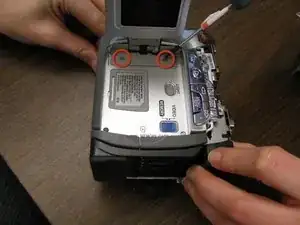

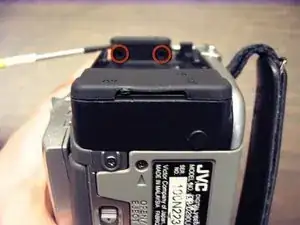

After taking out the battery. Use a phillip screwdriver to take off the top and bottom screw that hold the back plate together.
NOTE: To replace the LCD screen in the third guide, you do not need to follow the first two guides.
