Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For more information regarding common troubleshooting issues, check out:
Jazz Digi-Stix JDC 11 Troubleshooting
Identification and Background
This camera was developed by Jazz Multimedia as a device that is capable of being utilized as a point-and-shoot camera, a video recorder, and a webcam. The device can be recognized by a label on the back side of the camera with the model number "JDC11" printed on it. The camera has an internal memory storage of 80 pictures, a 10 second self timer, and the ability to capture up to 10 second video clips. The camera comes with a USB cable and an optional camera stand. This device is available in silver and blue.
Specifications
Jazz Photocorp's Jazz Digi-Stix
Model #: JDC 11
Image size: 352×288 pixels
Video size: 176×144 pixels
Memory: 2 MB built in
Lens: F3.0, viewing angle 55 degrees
Shutter speed: 1/8 - 1/4000 automatic control
Power: 2 “AAA” batteries

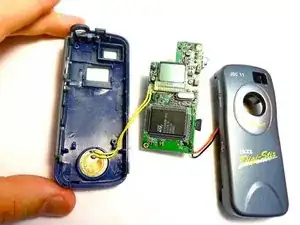

Shown in this picture are all of the components of the device:
Additional Information
There are no online manuals for the Jazz Digi-Stix JDC11.
Additional Information on Jazz Digi-Stix JDC 11
