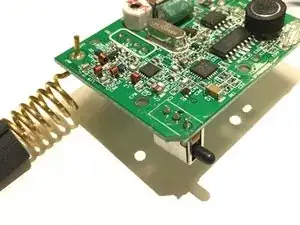

Antenna
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For more information regarding common troubleshooting issues, please visit the Troubleshooting Page.
Background Information

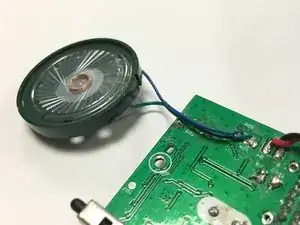

Walkie-talkies are handheld, portable radios: they communicate wirelessly (using radio waves) on a single, shared frequency band. Each battery-powered unit contains a transmitter/receiver and antenna (for sending and receiving radio waves), a loudspeaker that often doubles up as a microphone when you talk into it, and a button that you "push-to-talk" (PTT). The loudspeaker/microphone works in much the same way as an intercom: because a speaker and a microphone contain essentially the same components (a coil of wire, a magnet, and a paper or plastic cone to pick up or generate sounds), you can use a single device to do both jobs essentially by switching the electrical circuit into which it's connected and reversing the current. More sophisticated walkie-talkies (like the Motorola model shown in our photos) contain separate loudspeakers and microphones.
This is a walkie-talkie made for kids that enables them to communicate through 2 miles range. The set comes with a pair of walkie-talkies and has three different channels.
