Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Troubleshooting

Diagnose any issues you may be experiencing with the Motorola Cliq Troubleshooting Guide.

Identification and Background

Launched in November 2009, the Motorola Cliq is an Android-based smartphone exclusive to T-Mobile's 3G network. The Motorola Cliq is preinstalled with Android 1.5 and Motorola's MOTOBLUR interface technology. MOTOBLUR is a widget-based system that combines and streams social networking feeds.

The Cliq is the predecessor to the Cliq XT and the Cliq 2, released in March 2010 and January 2011 respectively. The Cliq XT and Cliq 2 are similar in design to the original Cliq. However, the Cliq XT has no physical keyboard and the Cliq 2 has a larger 3.7" screen, ships with Android 2.2, and has a faster processor. Click here to visually see the differences between the Cliq (on the left) and the Cliq XT (on the right).

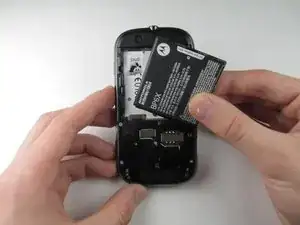

The serial number, MB200, is located behind the battery on the back of the phone.

Specifications

Product Basics

  • Developer: Motorola
  • Supported Carriers: T-Mobile
  • Mobile Broadband: 3G
  • Shipped Operating System: Android (1.5)
  • U.S. Release date: November 2, 2009
  • Layout: Slide-out QWERTY keyboard, Touch screen

Hardware

  • Dimensions: 4.49 x 2.28 x 0.62 inches (114 x 58 x 16 mm)
  • Weight: 5.75 oz (163 g)
  • Display LCD:
    • 3.1 inches (78.74 mm)
    • Multi-touch widescreen
    • 320 x 480 pixel resolution at 186 ppi
    • 800:1 contrast ratio
    • Capacitive touchscreen
    • Light sensor, proximity sensor, and scratch-resistant glass
  • Rear Camera:
    • 5 Megapixels
    • 320 x 240 Video (QVGA) at 25 fps
    • Autofocus
    • White balance presets
    • Digital zoom
    • Geotagging
  • Battery:
    • Lithium-ion
    • 1420 mAh
    • Talk up to 6 hours
    • Standby up to 320 hours
  • Connection Ports: 3.5 mm headset jack, microUSB 2.0
  • Processor: 528 MHz Qualcomm processor
  • Memory: 256 MB RAM and 512 MB ROM
  • Built-in Storage: 256 MB internal flash memory
  • Storage Expansion: microSD and microSDHC

Built-in Features

  • Call timer
  • Conference call
  • Speakerphone
  • SMS & MMS messaging
  • Wi-Fi
  • Bluetooth 2.0
  • Internet browser
  • Mobile email client
  • Computer sync
  • Ambient light sensor
  • GPS navigation
  • MOTOBLUR interface
