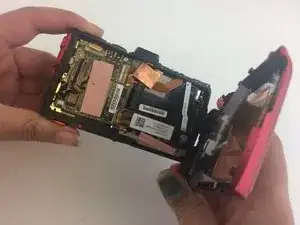

Back Case
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For help or any trouble you may be experiencing here is the link to the camera's troubleshooting page Olympus Tough TG-3 Troubleshooting.
Background and Identification
The Olympus Tough TG-3 differs from its predecessor, the TG-2, because it has built-in Wi-Fi connectivity. You can also identify this camera by checking the top left corner above the screen for the model label "STYLUS TG-3".
The Olympus Tough TG-3 is a compact 16-megapixel waterproof digital camera that features a maximum resolution of 4608 x 3456. This model features a microscope mode that allows the user to take pictures as close as 10mm away from the subject and magnify up to 13.8x with Super Resolution Zoom.
Specifications
Body type: Compact
Max resolution: 4608 x 3456
Effective pixels: 16 megapixels
Sensor size: 1/2.3" (6.17 x 4.55 mm)
Sensor type: BSI-CMOS
ISO: Auto, 100-6400
Focal length (equiv.): 25–100 mm
Max. aperture: F2–4.9
Articulated LCD: Fixed
Screen size: 3″
Screen dots: 460,000
Max shutter speed: 1/2000 sec
Format: H.264, Motion JPEG
Storage types: SD, SDHC, SDXC, Internal Memory
USB: USB 2.0 (480 Mbit/sec)
Weight (Including batteries): 247 g (0.54 lb / 8.71 oz)
Dimensions: 112 x 66 x 31 mm (4.41 x 2.6 x 1.22″)
GPS: Built-in
