Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For additional help, check out the Orbic Wonder Troubleshooting page
Background and Identification
Background:
Unlocked 5.5” 4G LTE Android Smartphone
Certified on US Wireless Networks (AT&T, Sprint, Verizon and T-Mobile) and compatible with most GSM carriers around the world
5.5” HD Gorilla Glass Screen

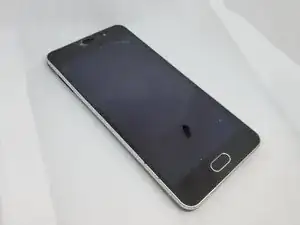

In November of 2018, Orbic released an unlocked 4G LTE Android prepaid phone: the Orbic Wonder. The Orbic Wonder comes only in black with silver accents accompanied by a scratch resistant Gorilla Glass screen. Due to the Orbic Wonder being a prepaid device, a lack of available parts makes repairs limited.
Specifications:
Brand: Orbic
Cellphone type: Prepaid phone
Color: Black
Cellular Network Technology: GSM, CDMA, WCDMA, TDD, FDD
Screen Size: 5.50 in
Manufacture Part Number: ORB555LBVZPP
Platform: MSM8937 OctaCore 4x1.4GHz, 4x1.1GHz
Operating System: android 7.1(Nougat)
Data Connectivity: LTE, HSPA, Wifi 802.11 a/b/g/n/ac (up to 90 Mbps), Wifi Direct, Hotspot, Bluetooth 4.1 LE, GPS, USB-C, 3.5mm Audio Jack, FM Radio
Dimensions: 156.6 x 8mm
Display: 5.5” FHD IPS TFT, Scratch-Resistant Gorilla Glass 3.0
Camera: 13MP PDAF f2.0, 5p Rear Camera with dual-LED Flash; 8MP Front Camera with Wide-Angle View & LED Flash
Memory: 2GB RAM + 16GB ROM microSD™ (Up to 256GB)
Battery: 3000 Li-Polymer (Non-removable) with Qualcomm QuickCharge 3.0
Multimedia: Video player/recorder, MP3 player, FM Radio, Gyro, Fingerprint Sensor
Messaging: SMS; MMS: Email; IM
Other: Light & Proximity Sensor; Fingerprint Identification; Unlocked for all major U.S. networks
