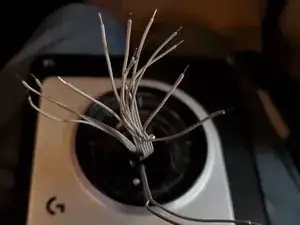

Saitek/logitech X52 Pro/not pro Wiring Replacement
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background and Identification
The Saitek X52 Pro is a HOTAS (hands-on throttle and stick) joystick and throttle combination simulation controller made by Saitek. It is designed for use with space and flight simulators. The Pro is the Saitek X52’s successor and includes an LCD (liquid crystal display) to show in-game data, a dual-spring centering mechanism with a metal cone that is designed to allow quick direction changes (the X52 uses only a single spring mounted vertically). Because of the dual-spring centering mechanism, the stick becomes more resistant to movement as it moves farther from the centered position.
The X52 Pro includes illuminated ‘critical’ buttons on the stick and throttle to help users quickly find the right buttons. The LCD display features adjustable backlighting and gives users the ability to view and interact with in-game radio stack information with a few popular flight simulators. The throttle features adjustable tension and includes detents (physical markings indicating where certain actions activate, such as an aircraft’s idle, afterburners, and reverse thrusters). The joystick can be twisted to control an aircraft’s rudders, but this function can be locked to disable the twist function and confine rudder control to the X- and Y-axes.
The name “X52 Pro” is printed in capital letters in several locations on both the stick and the throttle controllers. The name “Saitek X52 Pro” is printed in white font in the upper right-hand corner of the throttle controller, above the LCD screen.
Technical Specifications
Part Number: 945-000022
Physical Specifications:
- Stick:
- Length: 6.7 in (17 cm)
- Width: 6.7 in (17 cm)
- Height: 10.9 in (27.8 cm)
- Weight: 2 lbs (905 g)
- Cable Length (Power/Charging): 4.6 ft (1.4 m)
- Throttle:
- Length: 6.7 in (17 cm)
- Width: 6.7 in (17 cm)
- Height: 7.5 in (19 cm)
- Weight: 1.6 lbs (728 g)
- Cable Length (Power/Charging): 4.6 ft (1.4 m)
Controller Specifications:
- Connection Type: USB
- USB Protocol: USB 2.0
- USB Speed: Full Speed
- Indicator Lights (LED): Yes
- LCD Display: Yes
- USB Ports (Built-in): No
- Backlighting: Yes
Product Includes:
- X52 Pro Stick Unit with USB Connector Cable
- X52 Pro Throttle Unit with USB Connector Cable
Flight Simulation Software Compatibility:
- FSX - Flight Simulator X (PC only)
- X-Plane 10(PC and Mac)
- Prepar3D® 2.2(PC only)
- Most Other Flight Simulation Software
Minimum System Requirements:
- Windows®: 7, 8.1, 10
- 1x USB 2.0 Port
