Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
Having trouble with your device? Check out our troubleshooting page for information regarding common problems with this device.

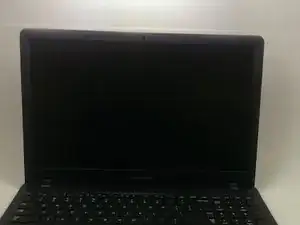

Background and Identification
The Samsung ATIV Book 4 is identified by the model number NP470R5E. The color of this device is Bare Metal. This device was released in August of 2013. This laptop is relatively thin and lightweight, having the dimensions of 14.8" x 9.76" x 0.9" (76 x 248 x 22.9mm) and weighing 4.59lb (2.08kg).
Specifications
- Display: 15.6" HD LED Display (1366 x 768), Anti-Reflective
- Operating System: Windows 8
- Processor: Intel® Core™ i5 Processor 3230M
- Hard drive: 1TB SATA II Hard Drive
- Memory: 8GB DDR3 System Memory at 1600MHz (4GB x 2)
- Dimension: 14.8" x 9.76" x 0.9" (376 x 248 x 22.9mm)
- Weight: 4.59lb (2.08kg)
- Ports: 1 VGA
- 1 HDMI
- USB3.0, 2 USB2.0
- 3-in-1 (SD, SDHC, SDXC) Multi-media Card Reader
- 1 Headphone out / Mic-in Combo
- 1 RJ45 (LAN)
- 1 DC-in
