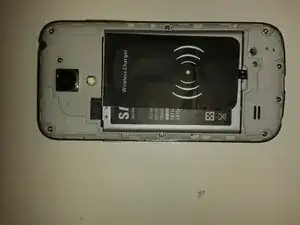

How to add wireless charging to Samsung Galaxy S4 mini
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
Track down a number of hardware problems using the Samsung Galaxy S4 Mini Troubleshooting Guide.
Identification and Background
The Samsung Galaxy S4 Mini is a smartphone developed by Samsung. It uses an Android 4.2.2 Jelly Bean which can be upgraded to Android 4.2.2 Kitkat. It was released in July, 1st 2013.
This device has a screen resolution of 960x540 pixels with Super AMOLED technology. Its terminal are 124.6 x 61.3 x 8.94 mm, weight 3.74 oz. The processor is dual core 1.7 GHz Krait. The RAM is 1.5 GB for the LTE version and 1GB for the 3G version. The expandable storage is of 8 GB for both versions up to 64 GB via MicroSD. The battery is of LI-Ion 1.900 mAh. The rear camera has 8 MP and the front camera has 1.9 MP.
Technical Specifications
Network/Bearer and Wireless Connectivity
* LTE 4G support
* GSM / GPRS / EDGE (850 / 900 / 1800 / 1900MHz) support
* LTE Cat 3 (800 / 850 / 900 / 1800 / 2100 / 2600MHz)
* HSPA+ (850 / 900 / 1900 / 2100MHz) support
* 802.11a/b/g/n available
* Wi-Fi Direct available
* BT 4.0 (PBAP, A2DP, AVRCP, HFP, HSP, OPP, SAP, HID, PAN, MAP)
* NFC available
* DLNA support
* KIES, KIES Air support
Chipset
* Dual Core Application Processor available
* 1.7GHz CPU Speed
Sensors
* Accelerometer, Geomegnetic, Gyro ,Light , Proximity Sensor
Connectors
* USB v2.0 Support
* 3.5mm Stereo Earjack
* MicroSD External Memory Slot (up to 64 GB)**
* Micro SIM (3FF) Support
* Micro USB (5V, 1A) available
Services and Applications
* Samsung Apps available
* Music available in Samsung Hub
* Books available in Samsung Hub
* Games available in Samsung Hub
* ChatON available
* ActiveSync available
* KNOX, ODE, EAS, MDM, VPN, CCX
OS
* Android JB 4.2.2 support
Memory
* 8 / 16GB Memory
Physical Specification
* 124.6 x 61.3 x 8.94mm Dimension (H x W x D)
* 107g Weight
Battery
* 1900mAh Standard Battery
* Up to 9 Hours Internet Usage Time (3G)
* Up to 8 Hours Internet Usage Time (LTE)
* Up to 11 Hours Internet Usage Time (WI-FI)
* Up to 10 Hours Video Playback Time
* Up to 49 Hours Audio Playback Time
* Up to 12 Hours Talk Time (W-CDMA)
* Up to 300 Hours Standby Time (W-CDMA)
* Up to 300 Hours Standby Time (LTE)
Audio and Video
* MPEG4, H.264, MP43, VC-1, WMV 7/8, Sorenson Spark, H.263, VP8
* Full HD (1080p) Video Playback available
* Recording up to 30fps
* MP3, AMR-NB / WB, AAC / AAC+ / eAAC+, WMA, Vorbis (OGG), FLAC
Display
* QHD sAMOLED Technology
* Colour Depth: 16M
* 4.3" Size
* 540 x 960 (qHD) Resolution
Camera
* CMOS, 1.9MP Megapixels Camera Resolution (Front)
* CMOS, 8MP Megapixels Camera Resolution (Rear)
* Power LED Flash
* Auto Focus available
Colour
* White Frost / Black Mist
Location
* Assisted GPS / GLONASS available
