Battery

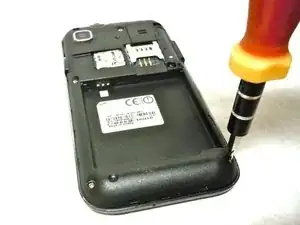

Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Identification

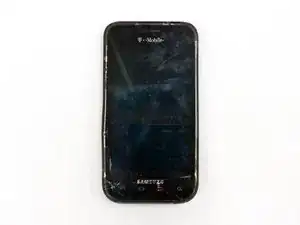

The Samsung Galaxy S Vibrant is distinguishable from other Samsung mobile android devices by identifying the carrier, T-Mobile, whose name appears below the earpiece on the top of the LCD screen. Additionally, “Galaxy S” appears on the lower portion of the back cover. The front LCD screen contains 4 touch keys; Menu, Home Screen, Back and Search. When switching the phone on, the word “Vibrant” will display itself in white letters.
Device History
The Samsung Galaxy S Vibrant was released in July 2010. It was one of four on the Galaxy S line, Samsung's first Android Superphones. T-Mobile (the specified carrier) hoped that the Vibrant would redeem the disappointing sales of Google’s Nexus-One smart phone; the Galaxy S line has since proved to be the most successful mobile device produced by Samsung. The Vibrant runs on an Android 2.1 platform, with the ability to update to Android 2.2 with Adobe Flash. The device features Samsung's trademark Super AMOLED LCD screen, making the graphics and video display extremely smooth while reflecting five times less sunlight.
Troubleshooting
Find common device problems and their solutions on the Samsung Galaxy S Vibrant Troubleshooting Page
Tech Specs
Size
- 4.82” x 2.54” x 0.39”
- 4.2 ounces
Display
- 400x800 pixel Main Display Resolution
- 480x800 pixel External Display Resolution
- 4" Display Screen
- Touch screen
Hardware
- Android 2.2 Platform
- 1GHz Cortex A8 Hummingbird Application Processor

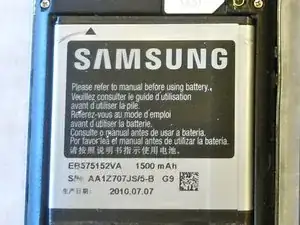

Battery
- 3.7 Volt, Lithium Ion, 1500mAh
- Up to 450 hours, Standby
- Up to 6.5 hours, Talk Time
Memory
- 2GB Internal Memory
- 32GB External Memory/microSD Capacity
- SDHC/SHD SD Card

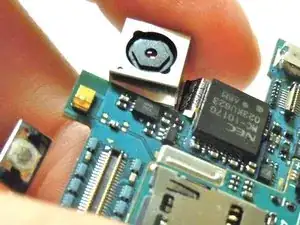

Camera
- 5.0 megapixel Camera Resolution
- 4x Digital Optical Zoom
Audio/Video
- Music player compatible with: 3GP, 3G2, ACC, AMR, MIDI, M4A,MP3, MP4 (AAC), WAV, and WMA files
- Video player compatible with: 3GP, 3G2, H.263, H.264, MPEG-4, Windows Media, and WMV files
- Streaming Capabilities (both audio and video)
