Background and Identification
The Samsung NP350E5C-A02US was released in October 2012, It can be identified by its model number which is on the metal plate located on the bottom of the computer. It has a 15.6" LCD screen, and brushed black exterior. This laptop contains a 2.4 GHz Intel® Core™ i7-3630QM processor. It has 6 GB of system memory and a 750 GB hard drive. Internal speakers and web cam.
Specifications
Operating System
OS Windows® 8 (64-bit)
Processor
Intel® Core™ i7-3630QM Processor
Speed (GHz) 2.4 GHz
Memory
6MB DDR3
Color
Black
Display
15.6" LED HD
Resolution 1366 x 768
Brightness 220 nits
System Memory
6GB of DDR3 memory with a max of 8GB
Storage

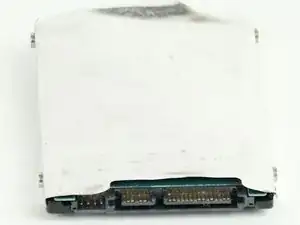

750GB hard drive that runs at 5400 RPM
Graphics
Chipset Intel® HD Graphics 4000
Integrated chipset utilizing shared memory
ODD
Optical Disk Drive DVD +/-RW Super Multi Dual Layer (S-ATA)
Sound & Camera
Speaker 3 W Stereo Speaker (1.5 W x 2)
Sound Effect SoundAlive™
Web Cam 1.3MP HD
Internal Mic
Wireless

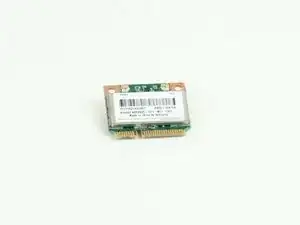

Wireless LAN 802.11 a/b/g/n, 802.11 bg/n 1X1
Bluetooth® Bluetooth 4.0
I/O Ports
VGA
HDMI
Headphone Out
Microphone In
USB Ports: 2 x USB 2.0 + 2 x USB 3.0
Multi Card Slot 3-in-1 (SD/SDHC/SDXC)
RJ45 (LAN)
Input Devices
Touch Pad (Scroll Scope, Flat Type)
Numeric Keypad
Power
AC Adapter 90 W-6 Cell / Li-Ion with 48 Wh and battery life Up to 6.6 hours (Test Used Mobile Mark 2007 test)
Security & Safety
Security Slot
Dimensions
14.67" x 9.57" x 1.34" (L x W x H, Inch)
Weight
5.16 lb.
