Samsung NP540U3C-A02UB Repair

If you are having difficulties discerning the problem or issues pertaining to your Series 5 UltraTouch NP540U3C-A02UB, please refer to our Samsung Series 5 NP540U3C-A02UB Troubleshooting.

The Series 5 UltraTouch (Model number: NP540U3C-A02UB) was released to the public in 2012. Equipped with a 13.3” screen and touch features. The Series 5 UltraTouch weighs 1.7 kilograms (3.73lbs). The series 5 has a gigabit Ethernet port located on the left side of the laptop.

The laptop runs on an Intel Core i3 processor with a speed of 1.8 GHz combined with a 500 GB SATA Hard Drive. It also includes 4 GB of Random Access Memory (RAM). The laptop has an LED screen resolution of 1366 x768, and is equipped with a lithium polymer battery which allows for a battery life of up to 6.7 hours. It is also equipped with 2x2 W stereo speakers and a 1.3 MP camera.

To identify this laptop, there is a barcode at the bottom with the number “MODEL CODE: NP540U3C”.

Width: 315 mm

Depth: 218 mm

Height (front): 17 mm

Height (rear): 20 mm

3.73 lb (1.7 kg)

Lithium Polymer Batteries

Four Battery Cells

7.4 V, 45 Wh battery

2 USB 2.0 ports

USB 3.2 Gen 1 Type A port

Ethernet Lan (RJ-45) port

HDMI port

19V 2.1 A DC in jack

2x 2 W Stereo Speaker

1.3 MP Camera

Intel Centrino Advanced-N 6235 Wireless Module, 802.11 a/b/g/n, Bluetooth 4.0

Dual Core Intel Core i3-3217U, 1.80GHz

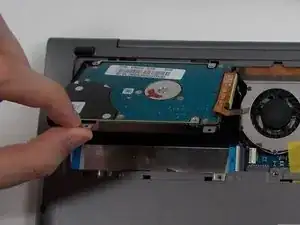

500 GB HDD

4 GB DDR3

Intel HD Graphics 4000

Recommended temperature: 10°C - 32°C (50°F - 90°F)

Recommended humidity: 20 - 80% RH

Tjunction temperature: 105°C

40 W (19 V, 2.1 A)
