Replacement Guides

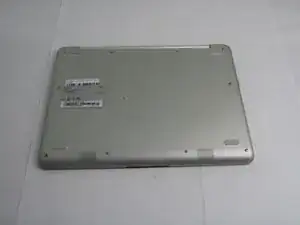

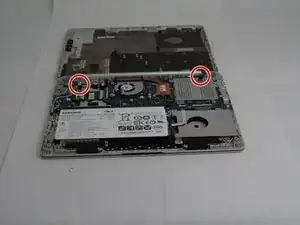

Battery

Battery

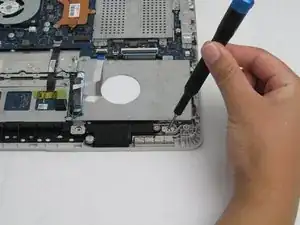

Hard Drive and SSD

Hard Drive and SSD

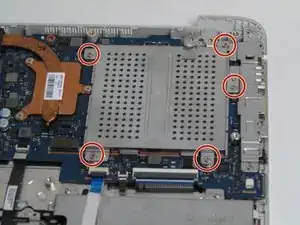

RAM

RAM
Touch Screen

Touch Screen
Wi-Fi Card

Wi-Fi Card

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Troubleshooting

For any issues, you can find our troubleshooting page by clicking here.

Background and Identification

Samsung Electronics announced and released the Samsung Notebook 7 Spin in the first quarter of 2016 in the U.S.. It is designed for students, professional working, and entertainment.

The Samsung Notebook 7 Spin was released with two different monitor sizes, a 13-inch model and a 15-inch model with the Active Pen for note-taking. It is the seventh series of Sens laptops made by Samsung Electronics. It is able to rotate 360 degrees with a full touch screen. It also has a faster battery charging speed compared to previous models. It is the first model that applies an auto-backlight system to help typing in dark environment.

The 13 inch notebook was designed for smaller office environments and for students including 500mb of memory, whereas the 15 inch notebook was designed for business professionals whom “needed every ounce of processing power” with a 1Tb hard drive memory.

Specifications

Display

  • Aspect Ratio: 16:9
  • Brightness: 300nit

System Memory

  • Memory Configuration: 8GB x 1 + 4GB x 1(SODIMM)
  • Max System Memory: 32GB (16GB x 2)
  • Number of Slots: 2
  • Speed: 2133 MHz
  • Installed RAM: 12GB
  • Hard Drive Type: HDD 1TB

Storage

  • Storage Interface: M.2 SATA3
  • Accepts MicroSD memory cards

Graphics

  • Chipset: Intel HD Graphics 620
  • External or Integrated: Integrated
  • Maximum Graphics Memory: Shared
  • 64-bit Computing: Yes
  • Max Turbo Speed: 3.1 GHz

Processor

  • CPU Type: Core i5
  • Processor Number: i5-2700U
  • Generation: 7
  • Manufacturer: Intel
  • Clock Speed: 2.5 GHz

Sound and Camera

  • Audio Type: HD Audio

Wireless

  • Name of Wireless LAN Card: Intel Wireless-AC 8260
  • Wireless LAN Antenna: 2x2
  • Bluetooth 4.1 compatible

I/O Ports

  • Sleep-and-Charge USB: Yes(USB-C)

Input Devices

  • Touch Pad / Track Point: Clickpad
  • Backlit Keyboard: Yes
  • Number of Keys: 80

Power

  • Number of Cells / Cell Type: 3Cell / Li-ion
  • mAh: 3950mAh
  • Battery Life: Up to 9 hrs

Security and Safety

  • BIOS / HDD Password: Yes

Dimensions

  • System Dimensions (L x W x H, Inch): 12.75 x 8.98 x 0.78

Weight

  • System Weight (w/Std. Battery, lb.): 3.9lbs

Additional Information

Notebook 7 Spin on Samsung Website

Samsung Notebook 7 Spin Cnet review (note: this is not exact model number, but same series)

Notebook 7 Spin replacement parts
