Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
Determine problems using the Sony VAIO VPC-EB33FM Troubleshooting guide.
Background and Identification
The Sony VAIO VPC-EB33FM is a part of the EB series released in 2010. This model of the EB series comes with an Intel Core i3-370M, features 4 GB of DDR3 RAM, and a 15.5” LED-backlit, and comes in either black, brown, or white.
You can determine the series and specific model number on the underside of the laptop. It is very important to determine the proper serial number for your model as some replacement parts are specific to a model of laptop.
The EB series has been discontinued and replaced by the E series starting in 2011. The E series featured an increase in power with more RAM capabilities and the 3rd generation Intel processors.
Technical Specifications
Display:

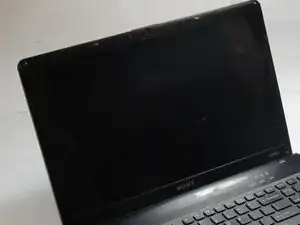

- 15.5 inch LED backlight widescreen display with a 1366 x 768 resolution
Storage:

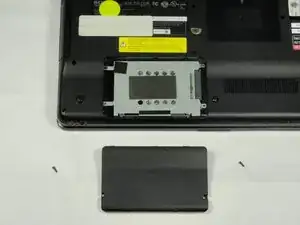

- 500GB Hard Drive Model: WD5000BEVT
Processor:
- 2.4GHz Intel Core i3-370M
Memory:

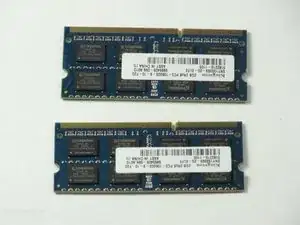

- 4GB DDR3/1066MHz
Graphics and Video:
- Intel® HD Graphics
- MOTION EYE webcam
Battery

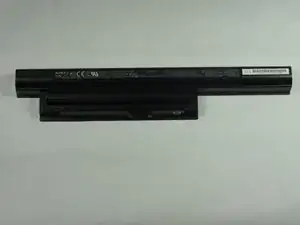

- Standard Sony VGP-BPS22 Lithium-ion Laptop Battery
Wireless:
- WWAN (WiMax Ready) WiFi (802.11b/g/n) 10/100/1000 Base-T Ethernet Fast Ethernet (RJ-45)
Dimensions:
- Width-14.56 "
- Folded Height-1.22 "
- Width-14.56 "
- Depth-9.77 "
- Weight-5.9 pounds
Ports:
- 3 USB 2.0 ports
- eSATA/USB
- VGA
- HDMI
- Ethernet
- Headphone/Microphone Jack
- Memory Stick Pro Duo with MagicGate support
- SD Card
- ExpressCard 34
