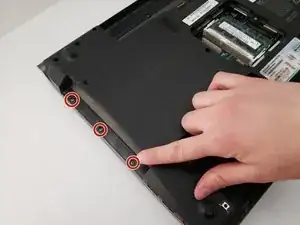

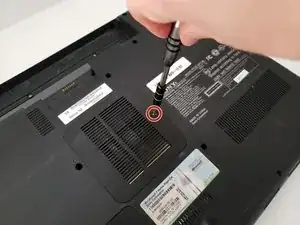

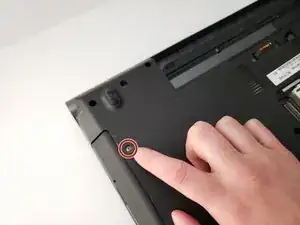

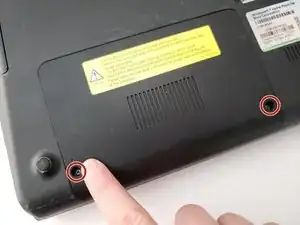

Back Panel Assembly
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
If you are running into any issues with the Sony Vaio VPCF115FM, please refer to our Troubleshooting page.
Background and Identification

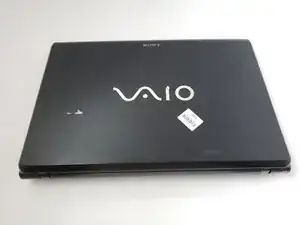

The Sony Vaio VPCF115FM is a 16.4” laptop that came out in 2009. This is one laptop type, among many in Sony’s VPC series.
In 2010, Sony reviewed 500,000 workstations including the VPCF115FM because of overheating, bringing about softened consoles, and different segments. When taking care of this gadget know about the working temperature of the PC.
PCG Reference : PCG-81114L
Model number : VPCF115FM
Specifications
Display:
- 16.4” (diagonal) widescreen display
Processor:
- i7 1.7GHz processor
Graphics and Video:
- NVIDIA GeForce GT 330M
- Built in camera
Ports:
- LAN
- HDMI port
- 3 - USB 2.0 ports
- VGA
- 4 –Fire Wire ports
- Earphone yield
- Mouthpiece output
Additional Information
Video Disassembly of a Sony Vaio laptop belonging to the PCG Reference PCG-81114L
Software update - Released 1/16/2019
