Background

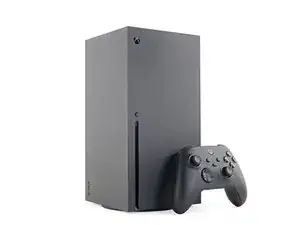

Released in late 2020, the Xbox Series X serves as the debut of Microsoft’s new line of Xbox Series consoles. With a completely new form factor prioritizing cooling and Microsoft’s new Velocity architecture, the new Xbox Series X boasts backwards compatibility with existing Xbox One devices and games, even letting users use their existing Xbox One controllers. Xbox One and select Xbox 360 and original Xbox games will be backwards compatible.

The Xbox Series X targets true 4K gaming at 120 fps. It features a system-on-chip (SoC) with AMD’s Zen 2 CPU and RDNA 2 GPU architectures to deliver 12 teraflops of graphical computing performance, double that of last generation’s Xbox One X.

Select game titles will have an “Optimized for Series X|S” icon, offering faster load times, higher resolutions, and smoother frame rates. The Xbox Series X is available in a dark black finish and includes a redesigned Xbox controller featuring a new share button, textured triggers and bumpers, and a new D-pad.

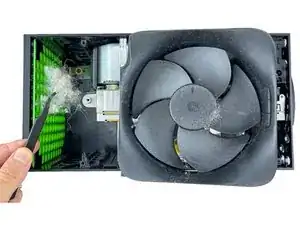

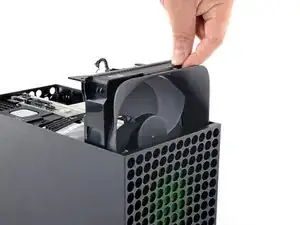

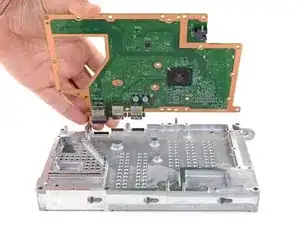

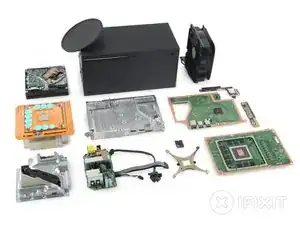

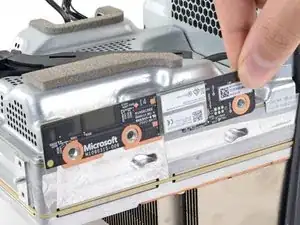

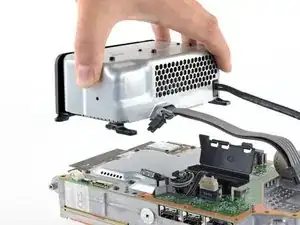

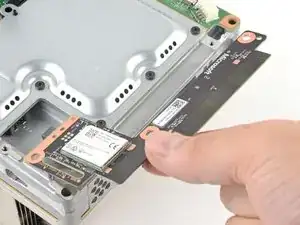

The most often replaced Xbox Series X parts include the power supply, fan, wi-fi board, motherboard, and case components.

Identification

The Xbox Series X has two model numbers: RRT-00010 and RRT-00003.

Specifications

CPU: AMD custom 8-core Zen 2 CPU @ 3.8 GHz (3.66 GHz w/SMT)

GPU: AMD custom RDNA 2 GPU @ 1,825 MHz w/52 compute units

Memory: 16 GB GDDR6

Memory bus: 320-bit

Memory Bandwidth: 10 GB @ 560 GB/s, 6 GB @ 336 GB/s

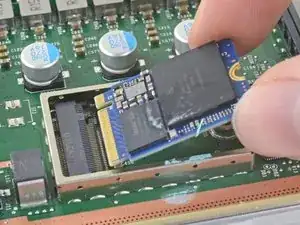

Storage: 1 TB custom NVME SSD

Expandable Storage:

  • Support for Xbox Series X|S 1 TB Seagate expansion card
  • Support for USB 3.1 external drives

AV Output:

  • 1x HDMI 2.1 (support for 8K @ 60 fps, 4K @ 120 fps)
  • Up to 8K HDR support
  • AMD FreeSync

I/O Output: 3x USB 3.1 Gen 1

Sound:

  • Dolby Digital 5.1, DTS 5.1
  • Dolby TrueHD with Atmos
  • Up to 7.1 L-PCM

Communication:

  • 802.3 10/100/1000 ethernet
  • 802.11ac dual-band Wi-Fi

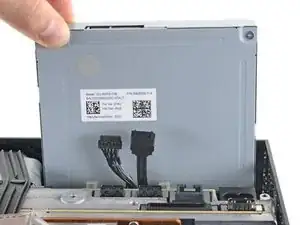

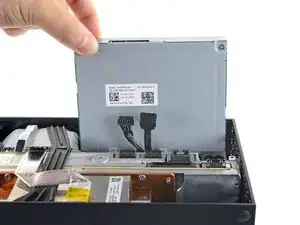

Optical Drive: 4K UHD Blu-ray

Dimensions: 15.1 cm x 15.1 cm x 30.1 cm
