Background and Identification

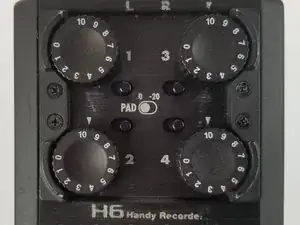

On July 1st 2013, Zoom announced the release of the 6th generation Handy Recorder, the H6. The Zoom H6 was the first to be produced under Zoom North America, a US affiliate of the Zoom Corporation in Japan. This model of the Zoom Handy Recorder is identified by the name H6 Handy Recorder centered underneath the volume input knobs, and above the track buttons and indicators.

Compared to the previous generation H5, it offers 6 tracks of recording versus 4, 4 XLR/TRS combo jacks versus 2, and can accept SD cards up to 128GB, compared to a 32GB max in the H5.

Specifications

Release Date: 2013

Developer: ZOOM

Part Number: 884354012175

Manufacturer Part Number: H6

Simultaneous Recording Tracks:

  • 6

Simultaneous Playback Tracks:

  • 6

Power Requirements:

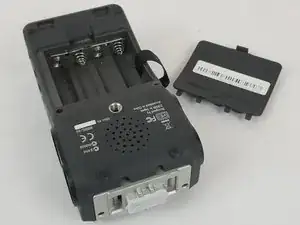

  • (Alkaline) LR6 or (NiMH) HR6 AA battery x 4
  • Mini USB DC 5V/1A

Battery Life (4 x AA (alkaline or NiMH)):

  • 20 hours

Memory (removable):

  • SD/SDHC/SDXC up to 128GB

Audio Interface:

  • Yes (via USB)

A/D Resolution:

  • 24-bit/96kHz

Built-in Mic(s):

  • Modular (includes X/Y and Mid-Side mics)

Analog Inputs:

  • 4 x XLR-1/4" combo

Analog Outputs:

  • 1 x 1/8" Stereo Headphone, 1 x 1/8" Stereo Line Out

Headphone Outputs:

  • 1 x 1/8"

Dimensions:

  • 3.06 (W) x 6.01 (D) x 1.88 (H)in

Weight:

  • 0.619 pounds

Color:

  • Gray

Troubleshooting

For more information regarding common troubleshooting issues, see the Zoom H6 Handy Recorder troubleshooting page.
