Background and Identification

The iPhone 13 Pro Max was released on September 24th 2021 alongside the rest of the iPhone 13 lineup. Starting at the same price as last year’s iPhone 12 Pro Max, Apple’s new flagship maintains the same stainless steel design language, adds a 1 TB storage option alongside the 13 Pro, and sits squarely at the top of Apple’s smartphone lineup. Both the iPhone 13 Pro and Pro Max gain 120 Hz ProMotion displays for 2021, an entirely upgraded 3-lens camera system, and Apple’s new A15 Bionic.

Featuring five GPU cores over the regular iPhone 13’s four, the iPhone 13 Pro Max starts at 128 GB and is available in Graphite, Silver, Gold, and Sierra Blue.

The iPhone 13 Pro Max starts at $1099 and can be identified by model numbers A2484, A2641, A2644, A2645, and A2643 depending on region.

Specifications

Announce date: September 14th, 2021

Operating System: iOS 15

Display:

  • 6.7-inch “Super Retina XDR” OLED
  • ProMotion with adaptive refresh rates up to 120 Hz
  • Ceramic Shield glass technology
  • Multi‑touch
  • Haptic Touch
  • 2778 × 1284 pixel resolution (458 ppi)
  • 2,000,000:1 contrast ratio (typical)
  • True Tone
  • P3 wide color gamut
  • 1000 nits max brightness; 1200 nits max HDR (typical)
  • Fingerprint-resistant oleophobic coating

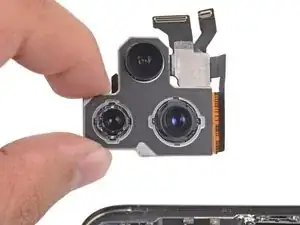

Triple primary camera:

  • True Tone flash with Slow Sync
  • LiDAR scanner
  • Apple ProRAW
  • 4K 10-bit HDR video recording with Dolby Vision HDR, up to 60 fps
  • 6x optical zoom range
  • Wide-angle module
    • 12 MP
    • ƒ/1.5 aperture
    • Sensor-shift optical image stabilization (OIS)
    • Autofocus with 100% Focus Pixels
    • Seven-element lens
  • Ultra Wide module (120° field of view, 2x optical zoom out)
    • 12 MP
    • ƒ/1.8 aperture
    • Six-element lens
    • Macro photography
  • Telephoto module (3x optical zoom in)
    • 12 MP
    • ƒ/2.8 aperture
    • Six-element lens

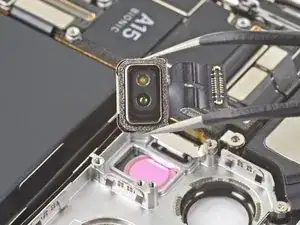

TrueDepth selfie camera with Face ID:

  • 12 MP
  • ƒ/2.2 aperture
  • 4K video recording, up to 60 fps
  • Retina Flash

Processor: A15 Bionic with 16-core Neural Engine

  • 5 nm process
  • 6-core CPU
  • 5-core GPU

RAM: 6 GB

Storage: 128, 256, 512 GB, or 1 TB

Battery: 4352 mAh, 17.02 Wh

Sensors:

  • Face ID
  • LiDAR scanner
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Proximity sensor
  • Ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 with 2x2 MIMO
  • 5G (sub-6 GHz and mmWave)
  • Gigabit LTE with 4x4 MIMO and LAA
  • Bluetooth 5.0
  • Apple-designed U1 Ultra Wideband chip for spatial awareness
  • NFC

Dimensions: 6.33 × 3.07 × 0.30 in (160.8 × 78.1 × 7.65 mm)

Weight: 240 g (8.46 oz)

Water Resistance: IP68

Colors: Graphite, Silver, Gold, and Sierra Blue
