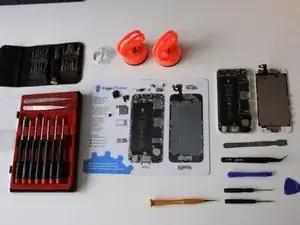

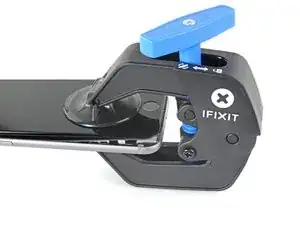

Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Wallpapers
Want to see the inside of your phone without opening it up? Check out our HD see-through iPhone 6 wallpapers.
Background and Identification

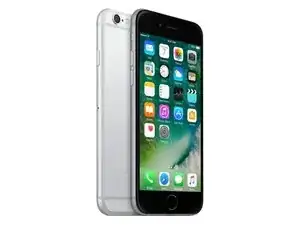

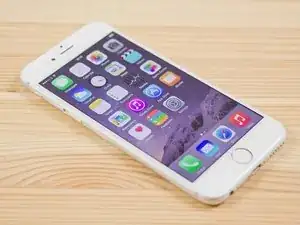

The iPhone 6 is part of the iPhone line, succeeding the iPhone 5s. Apple held an event to formally introduce the phone (and its bigger brother, the iPhone 6 Plus) on September 9, 2014. Notable features include a new 4.7" Retina HD display, an updated body styling that is .7 mm thinner than the 5s, and NFC capability for Apple's new mobile payment system Apple Pay. The iPhone 6 also features expanded fitness tracking abilities with a new fitness-tracking application powered by the updated M8 motion coprocessor and a barometer used to sense elevation. The 4.7" screen on the iPhone 6 is the smaller version of the iPhone 6 Plus.
Specifications
Announce date: September 9, 2014
Model: A1549, A1586, A1589
Developer: Apple Inc.
Operating System: iOS 8 (16/64/128 GB versions) - iOS 10.2.1 (32 GB versions)

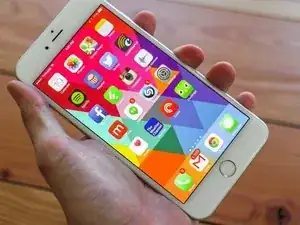

Display (Retina HD Display):
- 4.7 in (119.4 mm) LED-backlit widescreen
- Multi‑touch display with IPS technology
- 1334-by-750-pixel resolution at 326 ppi
- 1400:1 contrast ratio (typical)
- 500 cd/m2 max brightness (typical)
- Full sRGB standard
- Dual-domain pixels for wider viewing angles
- Fingerprint-resistant oleophobic coating on front

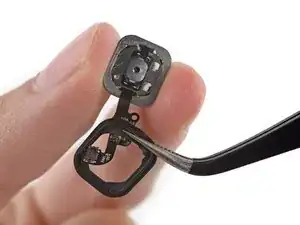

Fingerprint reader: Touch ID fingerprint reader
Camera: Contains both front and rear facing cameras.
- Rear-facing iSight camera
- 8 MP with 1.5µ pixels
- Autofocus with Focus Pixels
- ƒ/2.2 aperture
- 1080p HD video recording (30 fps or 60 fps)
- Slo-mo video (120 fps or 240 fps)
- 3x zoom
- True Tone flash
- Five-element lens
- Hybrid IR filter
- Backside illumination sensor
- Sapphire crystal lens cover
- Auto image stabilization
- Auto HDR for photos and videos
- Front-facing Facetime camera
- 1.2-megapixel photos (1280 by 960)
- ƒ/2.2 aperture
- 720p HD video recording
- Backside illumination sensor
- Auto HDR for photos and videos
Processor: 1.2 GHz Apple A8 chip with 64 bit architecture and M8 motion coprocessor
RAM: 1 GB LPDDR3
Storage: 16, 32, 64, and 128 GB flash memory
Sensors:
- Touch ID
- Barometer
- Three-axis gyro
- Accelerometer
- Proximity sensor
- Ambient light sensor
Wireless Connectivity:
- Integrated 802.11 a/b/g/n/ac (Dual band 2.4 GHz and 5 GHz)
- Bluetooth 4.0
- GSM, CDMA, 3G, EVDO, HSPA+, LTE
- Digital Compass
- GPS and GLONASS signal reception
Dimensions: 5.44 × 2.64 × 0.27 in (138.1 × 67.0 × 6.9 mm)
Weight: 129 g (4.55 oz)
Colors: Space Gray, Silver, and Gold
