Introduction

The guide covers the replacement of Lexus 330 RX 2004 battery. This guide can be used when the battery is dead or damaged. Battery are dangerous, use extreme caution during all the steps of this guide.

  1. Q5yTWQpW6gFcTrKn
    Q5yTWQpW6gFcTrKn
    4j2fyEMlFDKIuaOt
    oLkUgsNfCNNP4vqW

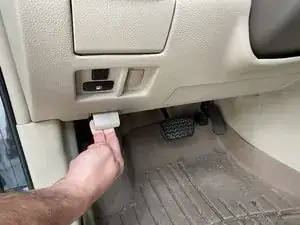

    • Pull up the lever underneath the steering wheel to pop up the hood.

    • Unlatch the hood.

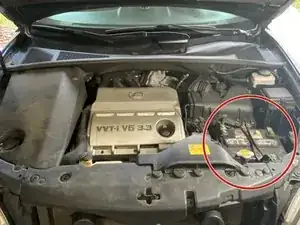

    • The battery should be located on the lower right side of engine.

  2. PUaB6RpUKCPKAIeR
    PUaB6RpUKCPKAIeR
    hJKiltAtrhl1P6dx
    kY2vIqPjLBmALRXG

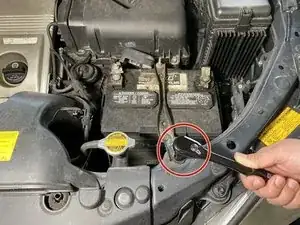

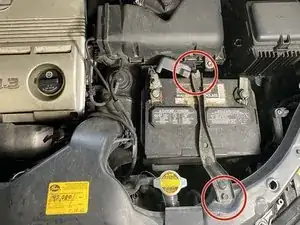

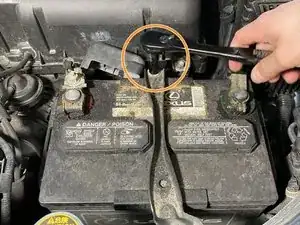

    • Use a wrench with a 10 mm socket to remove the bolts of the bracket.

    • Repeat the step above for the second bolt.

  3. M1BgmdFGTbsvgLvJ
    M1BgmdFGTbsvgLvJ
    U2ImQn3Bc5SJogIo
    cdB4y5Ycouw1XNAA

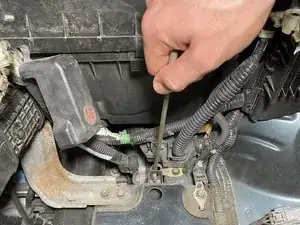

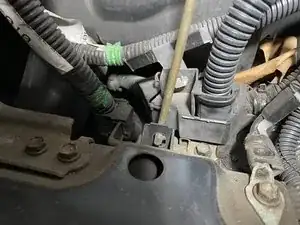

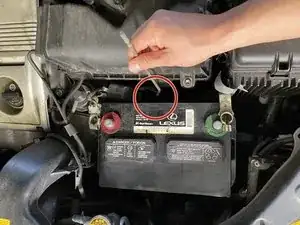

    • Remove the metal rod on top of the battery.

    • The second and third pictures were taken without the battery for a better view of the rod.

  4. X4BPxubDWtZCebm5
    X4BPxubDWtZCebm5
    EPWpgIwnW4KflnJm
    yAUHSwGGLeSgqDLE

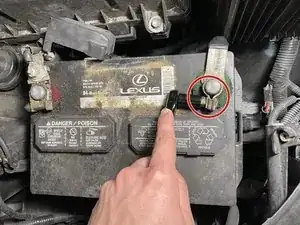

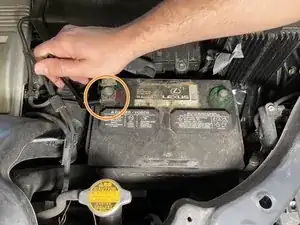

    • Remove the bolts on the clamps with a 10 mm socket.

    • Repeat the process on the second terminal of the battery.

  5. 3xZMfd4fnB2HD1RV
    3xZMfd4fnB2HD1RV
    oFhkpXvGpYed5GNq
    YwwRwRhU26RaVROf

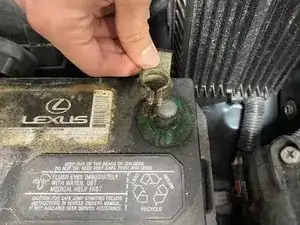

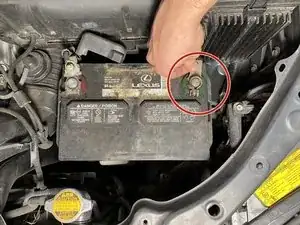

    • Carefully remove the clamps from the terminal.

    • Sometimes clamps are stuck in place due to corrosion or battery leak. Use caution while removing it.

  6. xJcQw3KRRTDF6oad
    xJcQw3KRRTDF6oad
    5XKKfk6nNILKuBHj

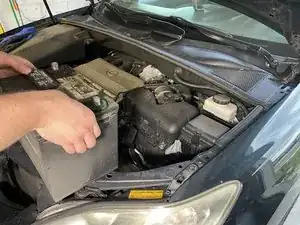

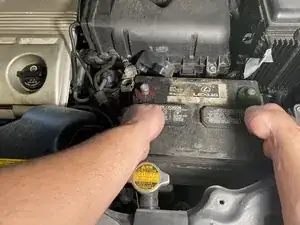

    • Carefully remove the battery from the engine.

    • Do not tilt the battery while removing it.

  7. q4T2D4lZWZJHETjP
    q4T2D4lZWZJHETjP
    ZeqF3TLWxFdR1MgI

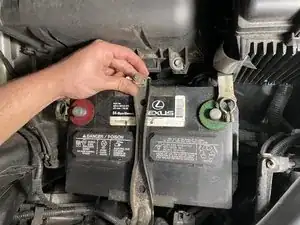

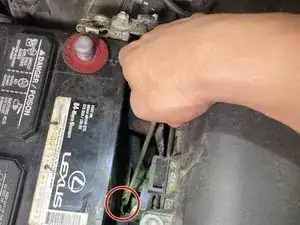

    • Insert the new battery in the engine.

    • Place the metal rod back in place.

  8. ChMJNpu1qtFiCZML
    ChMJNpu1qtFiCZML
    3xPJUwEdEERdP2SA

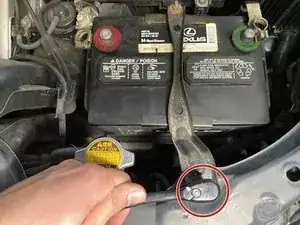

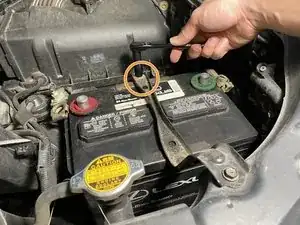

    • Place the bracket back on top of the battery.

    • Use a wrench with a 10 mm socket to secure the bolts of the bracket.

    • Repeat the above step for the second bolt.

  9. 2PMm5aNQRDXdn4by
    2PMm5aNQRDXdn4by
    pKhDtTa2YAyfQ15f
    6pAeAgUhZDYTCftf

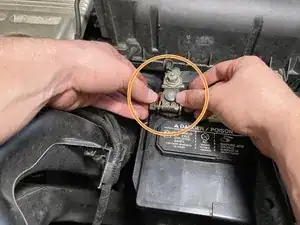

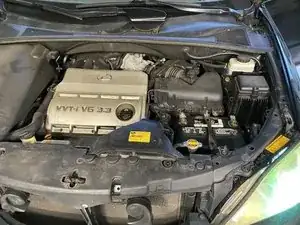

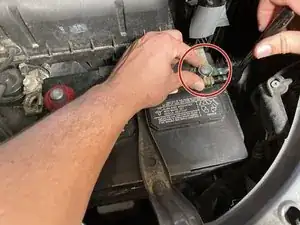

    • Put the terminal back on.

    • Put the bolts on the clamps back on with a 10 mm socket.

    • Repeat the previous step for the second bolt.

Conclusion

You have successfully changed the battery of Lexus 330 RX 200. Good Job!
