Introduction

This guide will show you how to replace the electronic throttle body in your 2005 Mazda 6. You may need to replace the electronic throttle body if your car is idling high or low, if your car shakes, or if you receive the following codes P1120, P1121, or P1122 on your OBD-II Scan Tool Report.

The electronic throttle body is in charge of accelerating and decelerating the engine actioned by the gas pedal. When this part malfunctions, the engine does not work properly.

Before using this guide, make sure to check the electrical connection on the electronic throttle body; a bad electrical contact might be responsible for causing the system failure. If you have a check engine light, make sure the codes read by the OBD-II Scan Tool are any of these P1120, P1121, or P1122.

On one of the steps, you are required to dismount the electronic throttle body from the intake manifold; be sure to cover the entrance to avoid any unwanted object getting into it.

Before starting the process, make sure to use protective heavy-duty gloves to avoid any injuries. Turn off the car's ignition, place the car in park, and engage the parking brake.

  1. UAUF4ITymvbUiJjW
    UAUF4ITymvbUiJjW
    KlJMhRLZPGHfKSY4
    1EAckNoeiBQANTbK
    • Open the hood and prop it open.

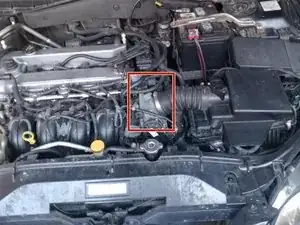

    • Locate the electronic throttle body.

  2. jcgnQYQIiMH2CwUJ
    jcgnQYQIiMH2CwUJ
    LCUDNfeTnJs3s3Cr
    dYQyiUApEfRHkHkP

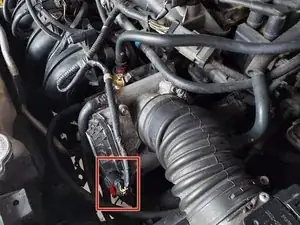

    • Detach the electric connection from the electronic throttle body.

    • Unplug the safety pin.

  3. gmakZqLt4UKAVGiJ
    gmakZqLt4UKAVGiJ
    wTdrvrTfqTVJ6xeU

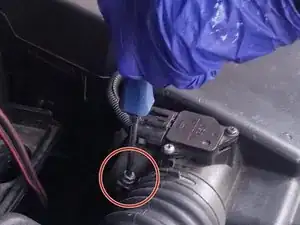

    • Unscrew the clamp that connects the intake hose to the air filter housing.

  4. KBUpLyfRwX6qdYqo
    KBUpLyfRwX6qdYqo
    uH1MgAGSn5wZPmqa

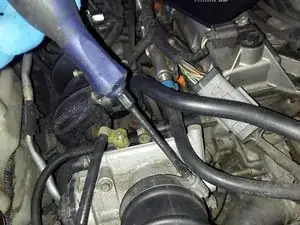

    • Unscrew the clamp that secures the intake hose with the electronic throttle body.

  5. Ym6OHXBdEGnDEEPL
    Ym6OHXBdEGnDEEPL
    vGErVTrwVtvuZwWN
    gjINYmq2dX1kcEri

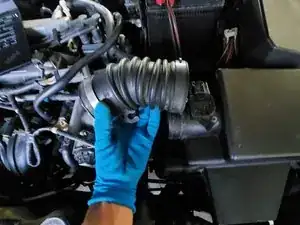

    • Disconnect the intake hose from both sides.

  6. wZlF4eoVPTjrWdK6
    wZlF4eoVPTjrWdK6
    pm1CCN15YndMTjcP
    HKOFMfGev3Ib1LDQ

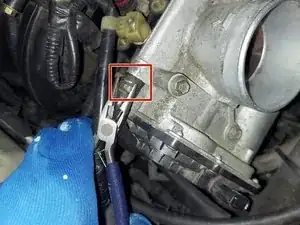

    • Disconnect the upper and lower vacuum hose on the electronic throttle body using a pair of pliers.

  7. kwIACKS2bHhisUMS
    kwIACKS2bHhisUMS
    rmtNFT4BE52XxsSO
    F2muGMmRBOShVomg

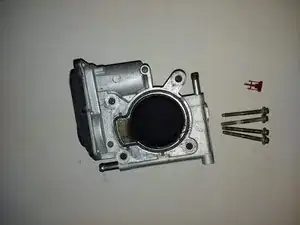

    • Remove the four screws connecting the electronic throttle body to the intake manifold.

  8. XUPjYNYIgeyMKJEX
    XUPjYNYIgeyMKJEX
    INH5LCRQl5ihDbqN

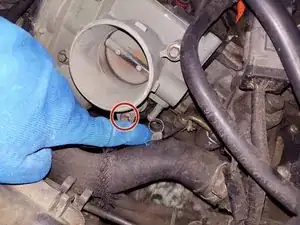

    • Place the new electronic throttle body on the intake manifold.

  9. L2AEtZMApnvtPdtk
    L2AEtZMApnvtPdtk
    mYpTiJN5QBJNVEXa
    • Reattach the four screws securing the electronic throttle body with the intake manifold.

  10. CDJiT2oFUJACxl3B
    CDJiT2oFUJACxl3B
    cNThyWblc1GO4yEw
    YvERBjNlFLs2IDgV

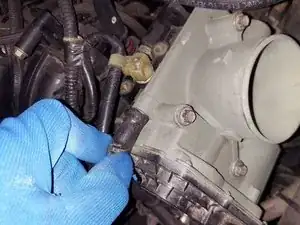

    • Connect the upper vacuum.

    • Connect the lower vacuum hose to the electronic throttle body.

  11. iMOmBYXZuVEU4uRY
    iMOmBYXZuVEU4uRY
    qyZmRAMyvVulCQv1
    DHrIQna36Ld4VMul
    • Connect the intake hose on both sides.

    • Screw in the clamp that secures the intake hose to the electronic throttle body.

    • Screw the clamp that secures the intake hose to the air filter housing.

  12. i2LQyayeNlNnjFWr
    i2LQyayeNlNnjFWr
    OdAaLPYls42aaogr
    frjKZaPKiRIesP4o

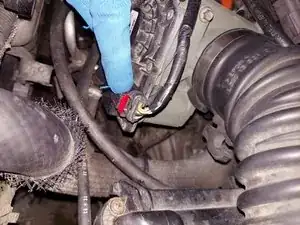

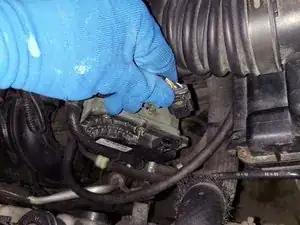

    • Connect the electric connection to the electronic throttle body.

  13. OpXKYXjmYsYT1KMT
    OpXKYXjmYsYT1KMT
    5ppJgRtQbT2TCreI

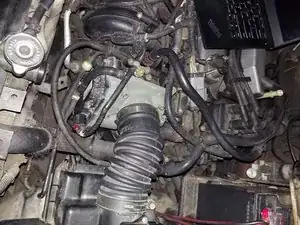

    • The electronic throttle body replacement is done.
