2007-2013 BMW X5 E70 Cabin Air Filter Replacement

Written By: Patrick Whitmire
  • Comments: 1
2007-2013 BMW X5 E70 Cabin Air Filter Replacement

Difficulty

Moderate

Steps

8

Time Required

30 minutes

Introduction

Every summer a lot of people suffer from a smelly car air conditioner. This is usually caused by an old cabin air filter. Below is a step by step guide to replacing the filter of your 2007-2013 BMW X5 E70 yourself. Save your time and money instead of making an appointment with the dealership!

  1. UauLSuFWj5m3koJG
    UauLSuFWj5m3koJG
    Na3ju5cYgSwUdBoV
    5hAAcTDmOIXI2LKU

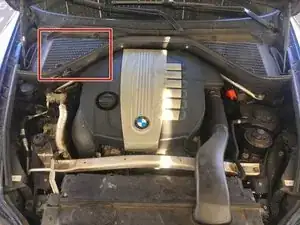

    • Pop and lift the hood by pulling the release lever below the driver's seat.

    • The plastic filter cover is located on the upper left corner of the engine bay.

  2. FpHRlqraWksVvsHB
    FpHRlqraWksVvsHB
    RxbihNMRZhAEL56S
    pxUGHS4qZMinB2Hk

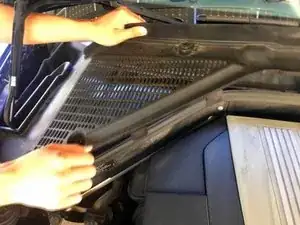

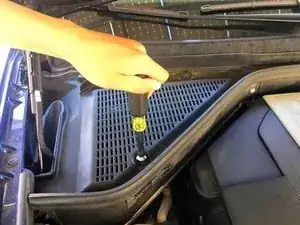

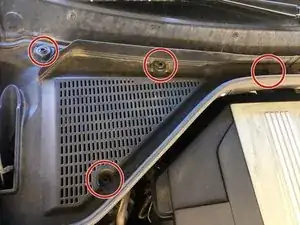

    • There are four plastic screws on the air filter cover.

    • Twist each of the plastic screws with the half inch screw driver a quarter turn counter-clockwise。

    • Mind the plastic hood support while removing the plastic cover toward the right hand side.

  3. Ii6WickTXAmUfwSM
    Ii6WickTXAmUfwSM
    djFrdEZZNdTiaYdw
    rgdAsdGIBNFWFB6x

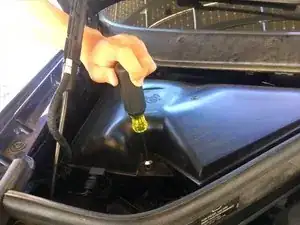

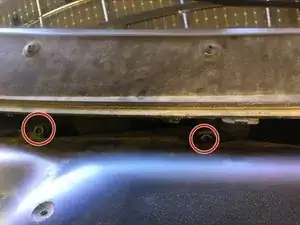

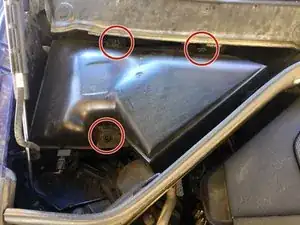

    • Once plastic cover has been removed, cabin air filter cover will be exposed.

    • There are three 1/2" plastic bolts.

    • Unscrew each plastic bolt by turning a quarter turn counter clockwise.

  4. nILMiG6CCPeglOXA
    nILMiG6CCPeglOXA
    OkdoyAEX1dxNSBvR
    rslWgCUvCYtx6Ocy

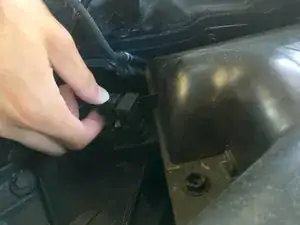

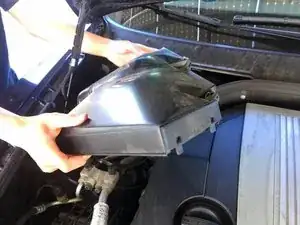

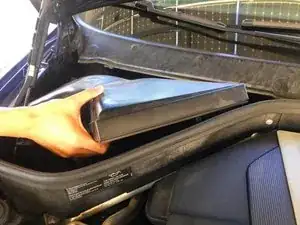

    • Remove the electronic plastic connector before removing air filter cover.

    • Remove the air filter cover from the vehicle.

  5. KlVUCEJ22YHJpPSi
    KlVUCEJ22YHJpPSi
    uI14JFbSo1PfS61M
    tbVrWBaRG3OoYAaT

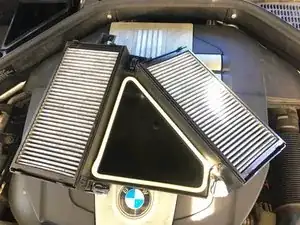

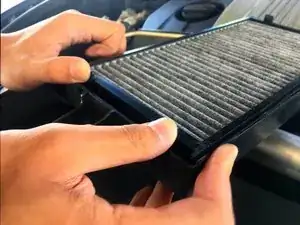

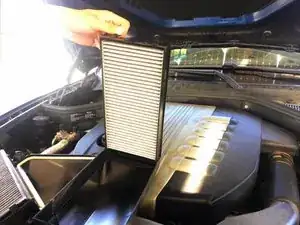

    • Once the filter cover has been removed two air cabin filters will be exposed.

    • Locate the plastic clips on each end of the filter holder

    • Depress the clips using your thumbs to remove the air filter.

  6. frO5V5IaKuOpQxNa
    frO5V5IaKuOpQxNa
    ElBTNrQd4OKKkiYf
    NvrSmX1NZKpYMKPL

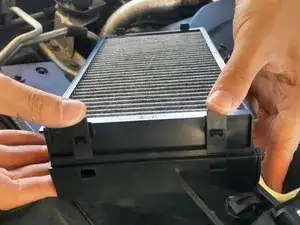

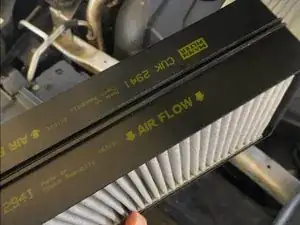

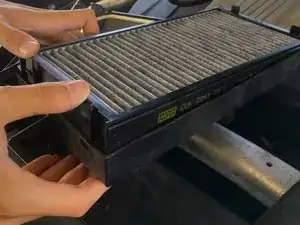

    • Pay attention to Air Flow indicator arrows when reinstalling the filters.

    • Clip the filters back into place one side at a time.

    • Repeat the process for the second filter.

  7. aXydY2OXymXdxmSm
    aXydY2OXymXdxmSm
    VQbIofU1HVTqJ5Le
    cTEpqtBuYfDbuehT

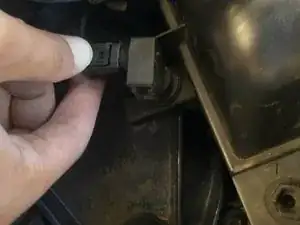

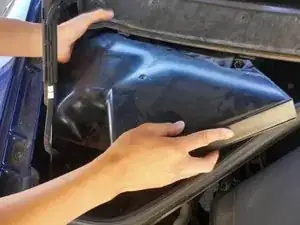

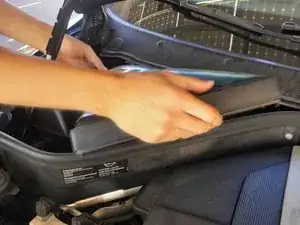

    • Reinstall the filter cover.

    • Re-connect the plastic electronic plug.

  8. O3a1pN1jV2fjRnCd
    O3a1pN1jV2fjRnCd
    GicVxyZvh5u4NKVq
    wdYkDsWIG1f1lPRm

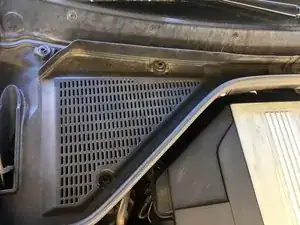

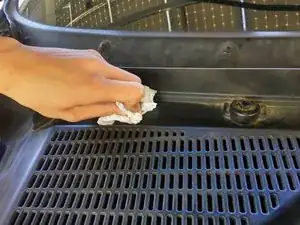

    • Re-install the plastic cover.

    • Mind the hydraulic lift for the hood while re-installing plastic cover.

    • Clean dust off the cover for good measure.

Conclusion

To reassemble your device follow these instructions in reverse order.

Author

Patrick Whitmire

Member since: 28/04/17

185 Reputation

One comment

This is not a cabin filter lol

E70/E71 have an actual cabin filter under the glove box.

lifeoftech -
