Introduction
Replacing the interior door handle of your 2010 Chevrolet Camaro may be necessary if the door handle becomes damaged and cannot function correctly or if it wears out over time. The handle can be expensive to replace if taken to professionals to fix at a dealership.
Additionally, replacing your malfunctioning interior door handle successfully can prevent being locked out of your vehicle. Replacing it yourself saves money and time. The kits sold to replace the interior door handle make it very convenient to replace it with little to no time and minimal tools.
Once you’ve finished with your replacement, make sure to test out the handle to verify that it works.
-
-

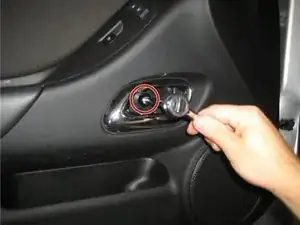

Remove the five bolts that attach the door panel to the door using the T30 Torx screwdriver.
-

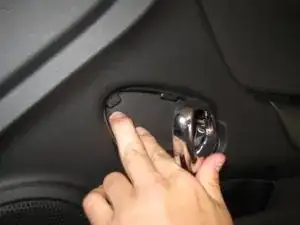

Use a door panel removal tool or a long-handled flathead screwdriver to pry out the outer edges.
-
-
-
Disconnect the following from the door panel:
-
Unlocking cable Speaker cable(s)
-
Set the door panel aside.
-
-
-

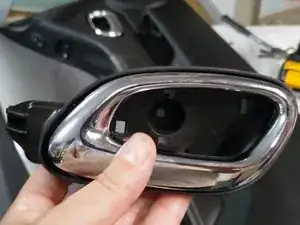

Grab the interior door handle replacement.
-

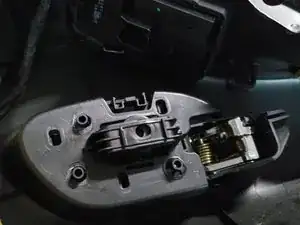

Unscrew the single screw that holds the original interior door handle using the T30 Torx driver.
-
Remove and replace the broken door handle.
-
-
-
Unscrew the screws holding the door handle to the door panel. Use a 7mm deep socket and a racketing wrench.
-
Replace the door handle.
-
Screw the three 7mm screws.
-
-
-
Double check the connection to the door handle.
-
Inspect the new door latch to make sure it is working.
-
Check the door for proper operation.
-
-
-
Reinstall the door panel (Copy step 1 backwards in order to properly reinstall the door panel.)
-
Reconnect all the cables.
-
The interior door handle replacement will function as the original.
-
You have now successfully replaced a 2010 Camaro interior door handle.
-
To reassemble your device, follow these instructions in reverse order. Test out the door handle and if it functions properly as the original door handle.
