Introduction

The task of replacing a blown taillight bulb for a Chevrolet Camaro is an easy and simple one to do. The average cost of getting a taillight bulb replaced at the dealer can range up to $100.00 but completing this simple repair yourself costs a fifth of that price. This guide offers a simple and affordable way to replace your bulb. However, this guide is to only replace the bulb. You should verify that there is no electrical damage or wiring faults before attempting this guide.

  1. XwpEUeuhWqCWAFlU
    XwpEUeuhWqCWAFlU
    hYqfLOocSOtAJIBA
    • Open the trunk by either the button on the driver side door panel or the key fob.

  2. CcPxTJXdwHtuBNvI
    CcPxTJXdwHtuBNvI
    iIA5BjFTBISnFEfF

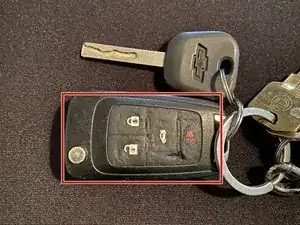

    • Use your key fob or press on your brakes to identify which bulb needs to be replaced.

    • Identify which bulbs need to be replaced.

    • In this case my driver side outside bulb was blown so that is the one that is getting replaced today.

  3. FyRMWBdm6YhLNxZs
    FyRMWBdm6YhLNxZs
    v1CRwiVMV6aLEWYe
    KKpju6IjZI52PvU4

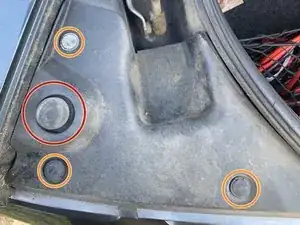

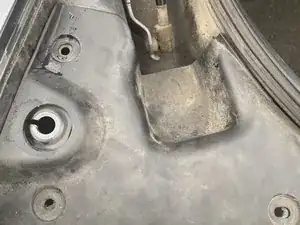

    • Unscrew the rubber screw by turning counter clockwise.

    • Gently pull these caps straight up to remove them.

    • The rubber screw can be removed by hand but it would be easier to use the pliers.

  4. dUFO2HGIGEtGhQoG
    dUFO2HGIGEtGhQoG
    yEjDSwUiyOWtsAAU
    5efXc4iBBMLtpXuY

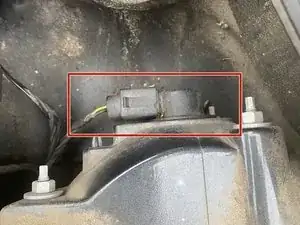

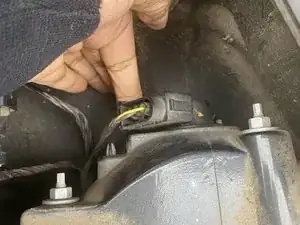

    • Rotate the entire socket a half turn clockwise. After this is done, gently pull the bulb socket from the taillight housing.

    • Remove and dispose of the blown bulb.

  5. o5FmKZGTfkFoi6Ub
    o5FmKZGTfkFoi6Ub
    hBRIxncjOtHxQsrG

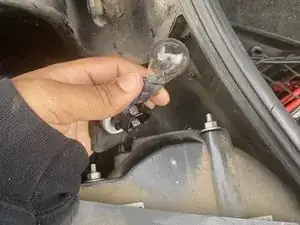

    • At this point you can place the new bulb into the plug.

    • When placing the new bulb into the plug be careful to not apply too much pressure. If the plug does not initially snap into place trying turning it and gently push it into place.

  6. RiVAFYQ64rLvpbbW
    RiVAFYQ64rLvpbbW
    ZwwBExOCpqkuFMVE
    • Before placing the plug back into the housing you should test the bulb to make sure it is in working order.

    • You can test the bulb by locking the door with your key fob or have someone press the brakes.

    • Repeat steps until all lights are in working order.

Conclusion

To reassemble, follow these steps in reverse order.
