Introduction
The Mercedes-Benz center-dial touchpad is an integral component to the control and functioning of the Mercedes-Benz COMAND operating system. Without it, one cannot access the menu functions that comes with the vehicle.
The center-dial touchpad can become inoperable due to excessive wear and tear. This guide illustrates the repair process to replace the COMAND center-dial touchpad on a Mercedes-Benz C-Class.
An OEM COMAND center-dial touchpad replacement is required for this guide. Consult with your nearest authorized Mercedes-Benz dealer for more information.
Parts
-
-

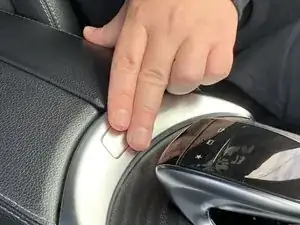

Start by pressing down on the button that opens the center arm-rest.
-

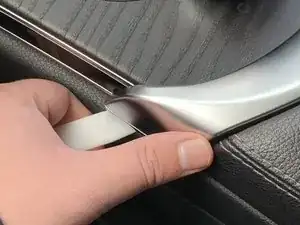

Pop each side of the silver trim using the trim removal tool or a plastic opening tool.
-
Remove the silver trim.
-
-
-

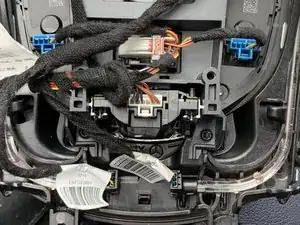

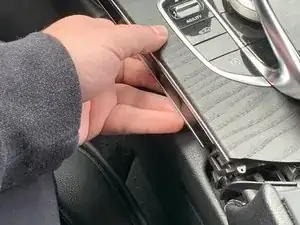

Lift the end of the center-console and flip it to reveal the undercarriage of the center-dial touchpad and its wirings.
-
-
-

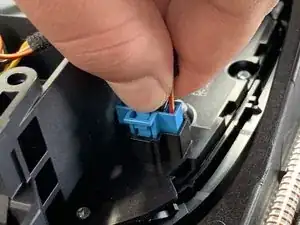

Press down on the center of the white connection in the middle and slide the safety latch to the left to pull out the main white connection.
-
-
-
Remove the two 15 mm T15 Torx screws holding the center-dial touchpad.
-
Firmly press the center-dial touchpad out to remove the unit.
-
To reassemble your device, follow these instructions in reverse order.
